System Description

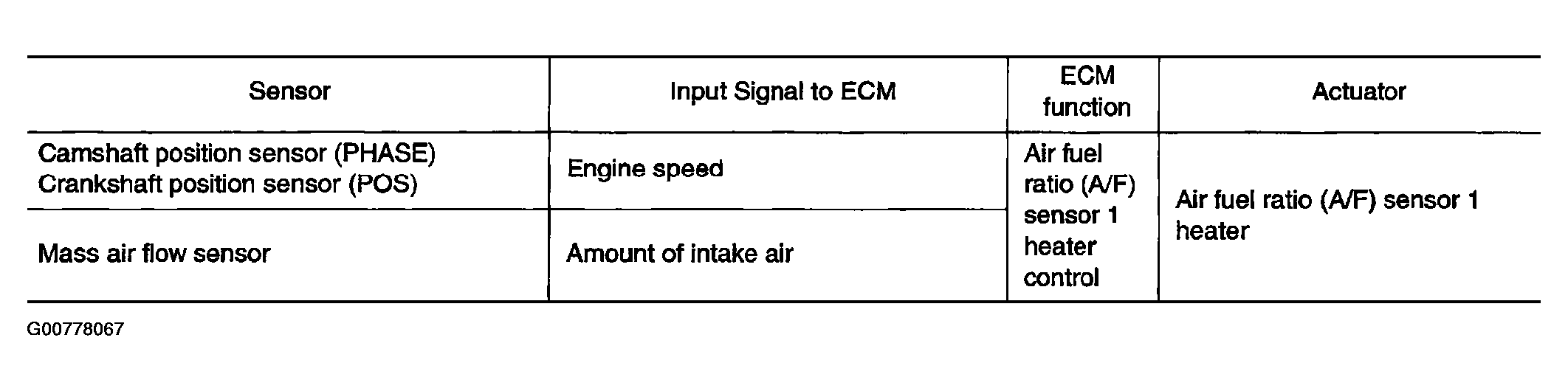

Fig 1: A/F Sensor 1 Heater System Description

Courtesy of NISSAN MOTOR CO., U.S.A.

The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating condition to keep the temperature of A/F sensor 1 element at the specified range.
