Home › Nissan-Datsun › 2004 › Sentra SE-R › Repair and Diagnosis › Engine Performance › System › Engine Control System - Qr25DE › DTC P1217: Engine Over Temperature › System Description › Operation

System Description: Operation

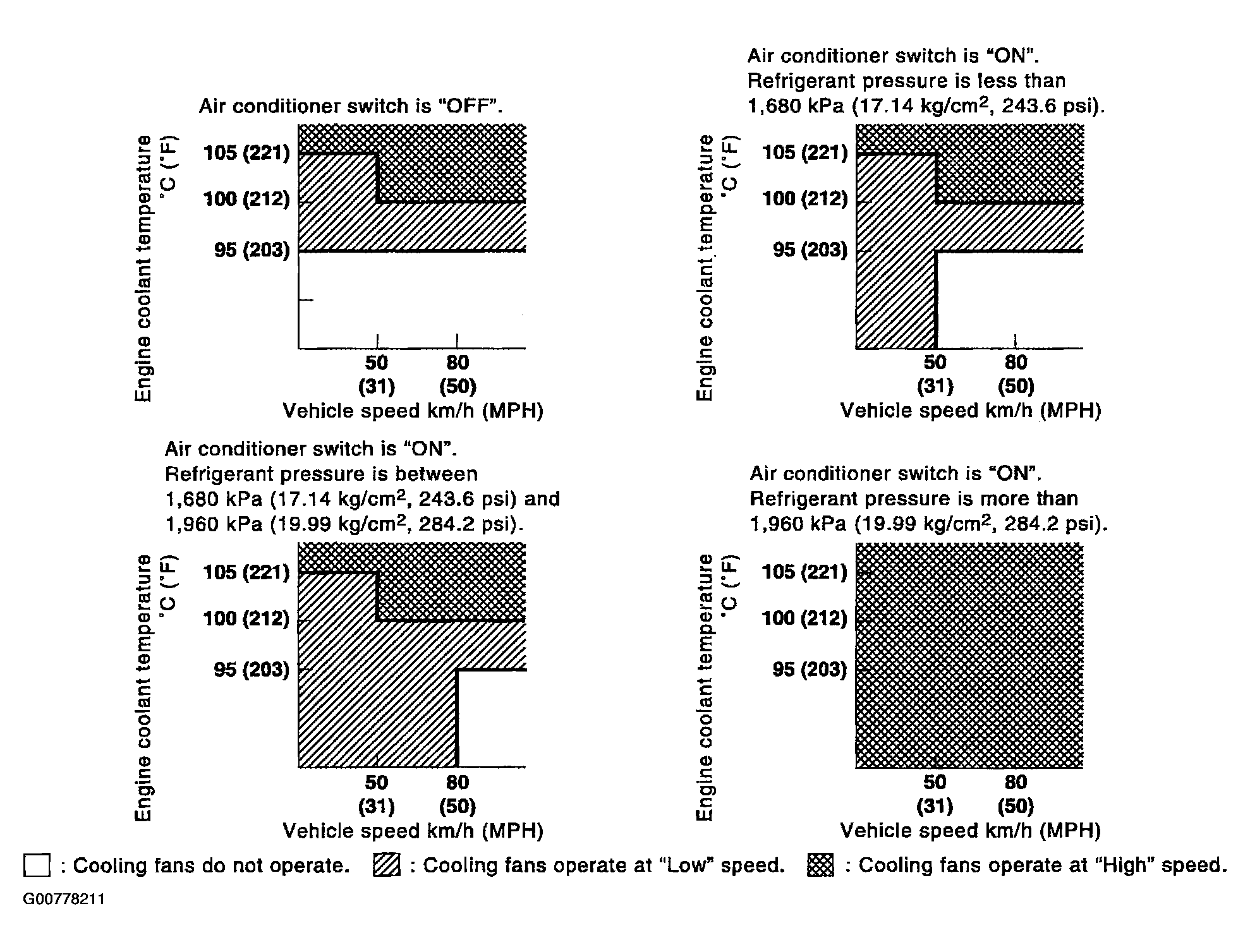

Fig 1: Identifying Engine Coolant Temperature Operation Graph
G00778211Courtesy of NISSAN MOTOR CO., U.S.A.
