DTC P1706: PNP Switch: Wiring Diagram

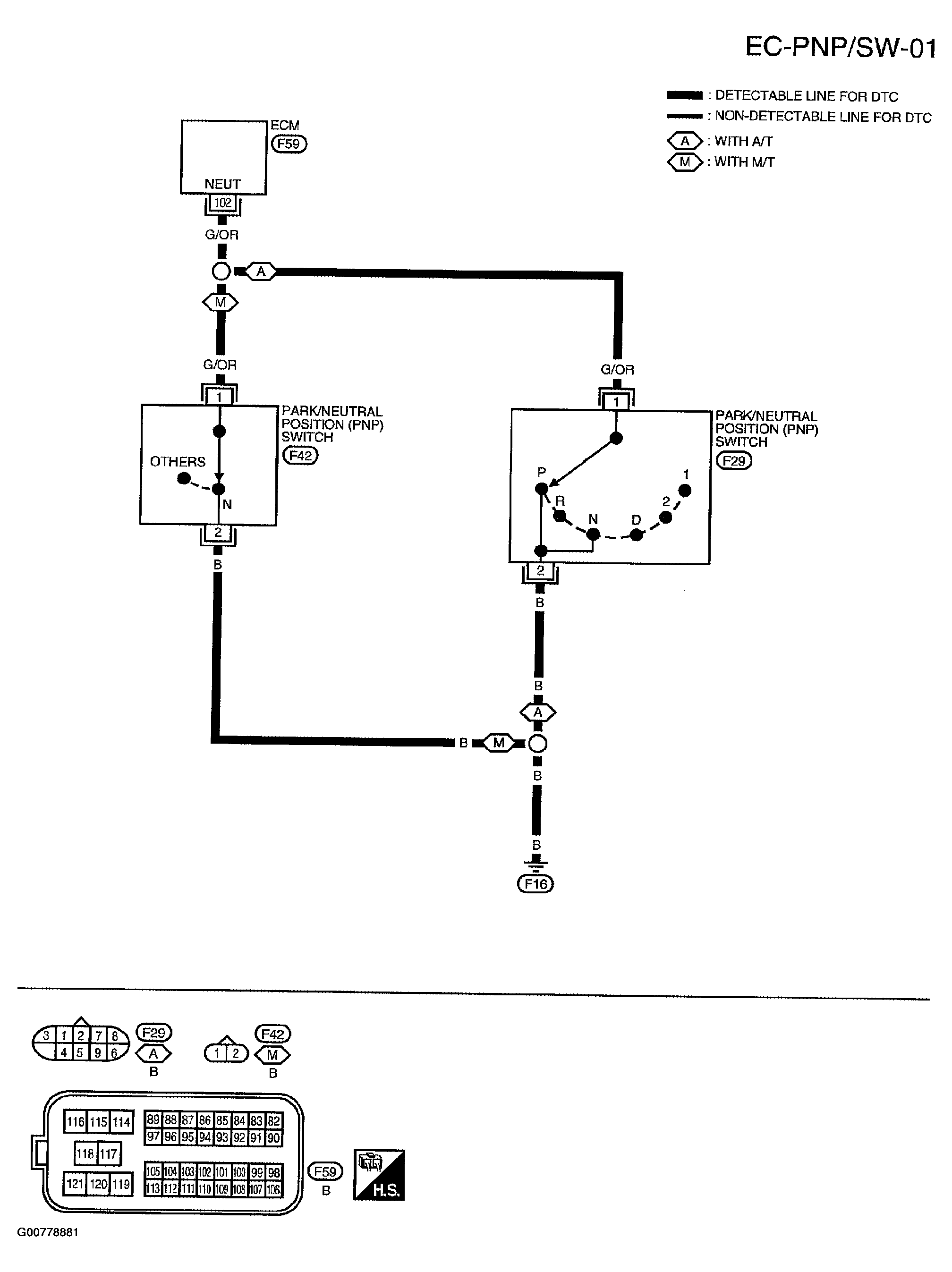

Fig 1: PNP Switch Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

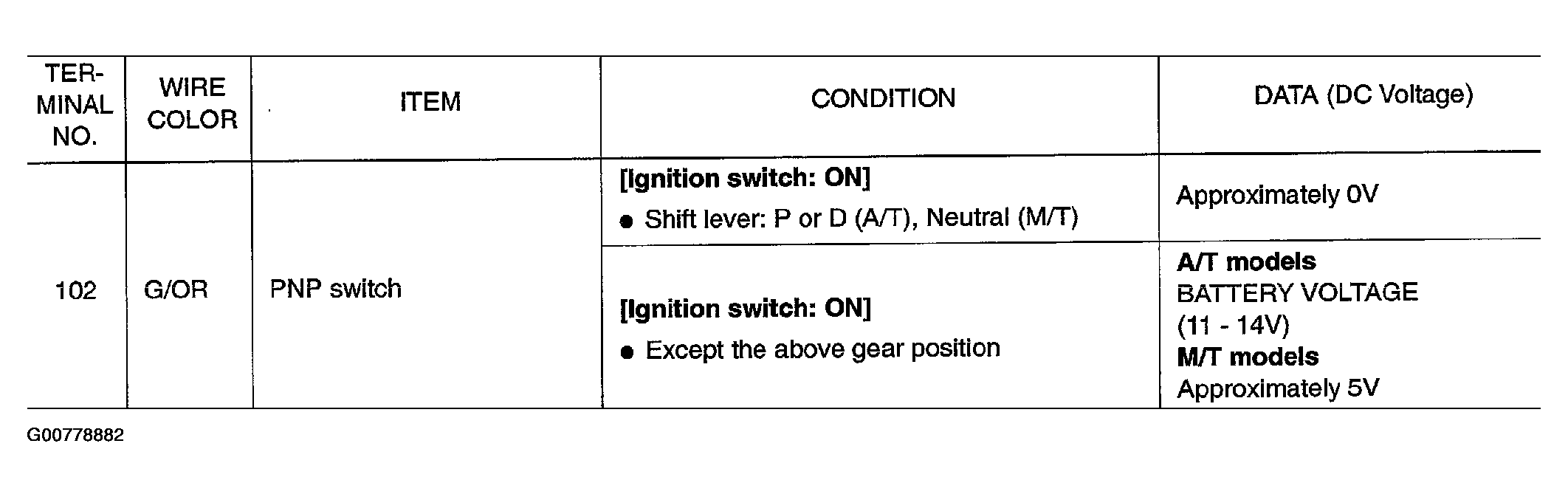

Fig 2: PNP Switch Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.
