Data Link Connector: Wiring Diagram

NOTE: For references to "PG-Power" in wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS.

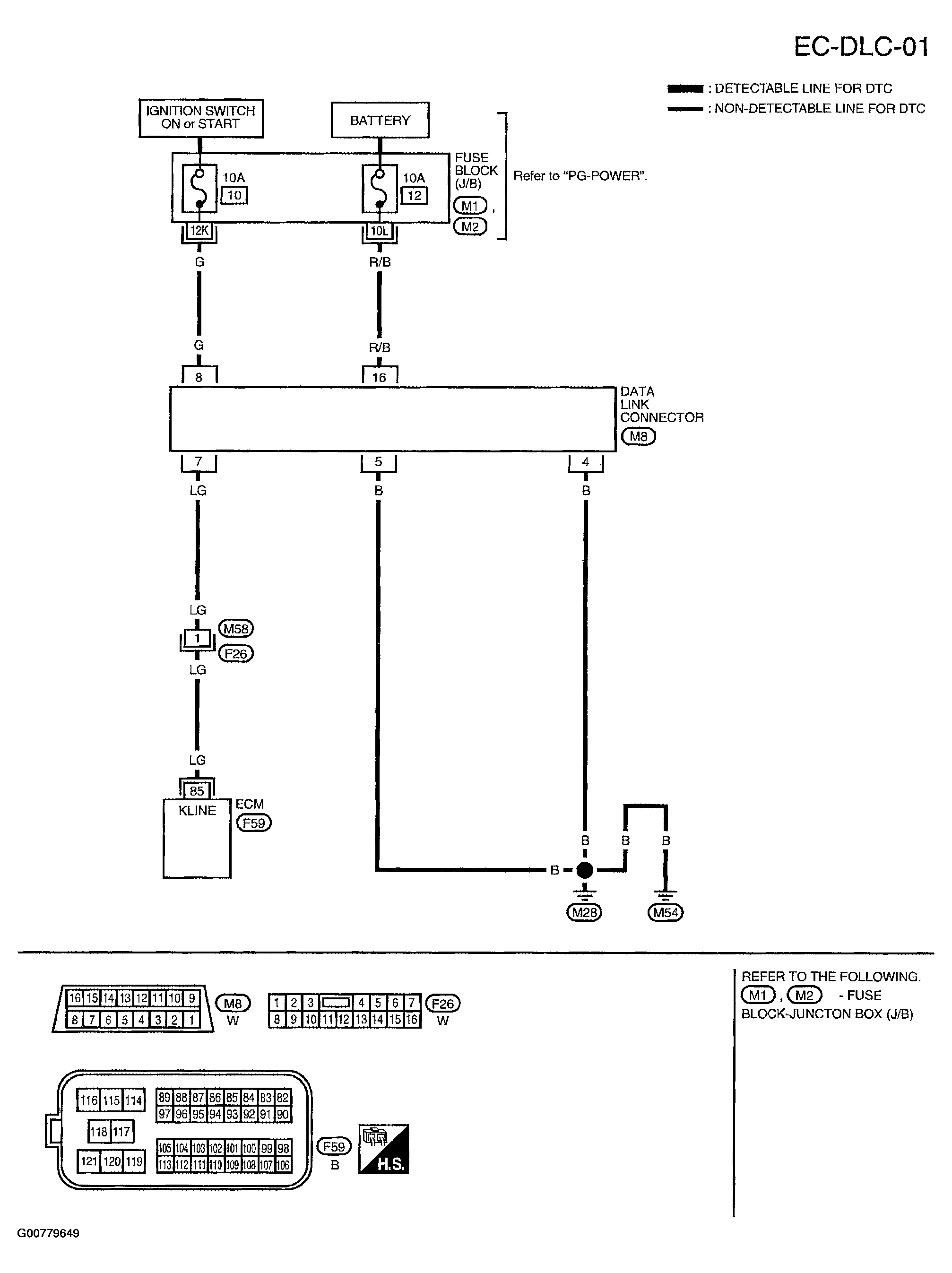

Fig 1: Data Link Connector Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

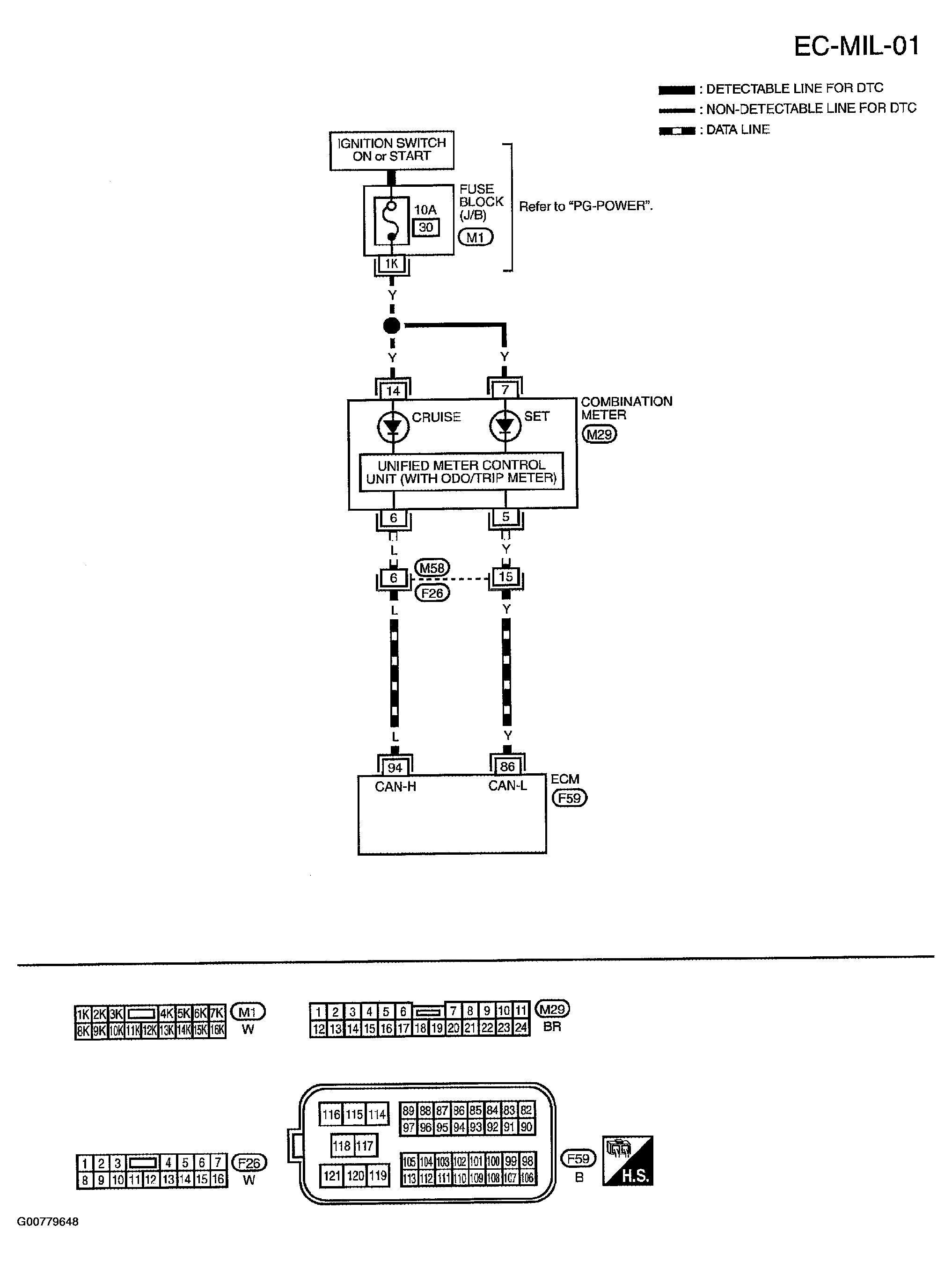

Fig 2: Data Link Connector Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
