Engine Control System - Qr25DE
›
Engine Control System
›
System Diagram
›
A/T Models ULEV And M/T Models
A/T Models ULEV And M/T Models

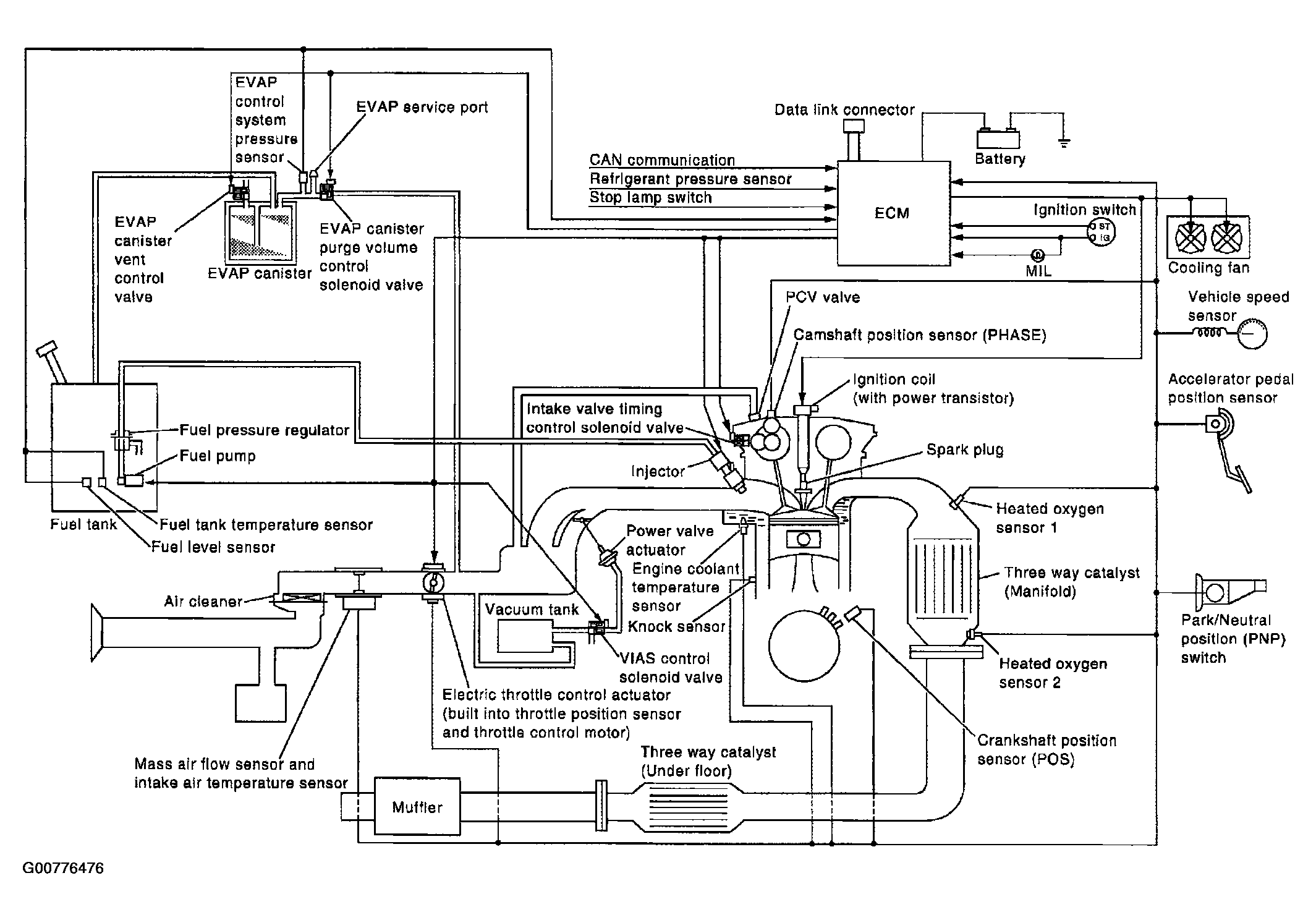

Fig 1: System Diagram (A/T Models ULEV & M/T Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
