Removal and Installation of Audio Unit: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Perform damper lock operation. (BOSE system) Refer to "LOCKING CD AUTO-CHANGER MECHANISM ".
Remove center ventilator. Refer to CENTER VENTILATOR .
Remove instrument stay cover (LH/RH). Refer to INSTRUMENT STAY COVER (LH/RH) .

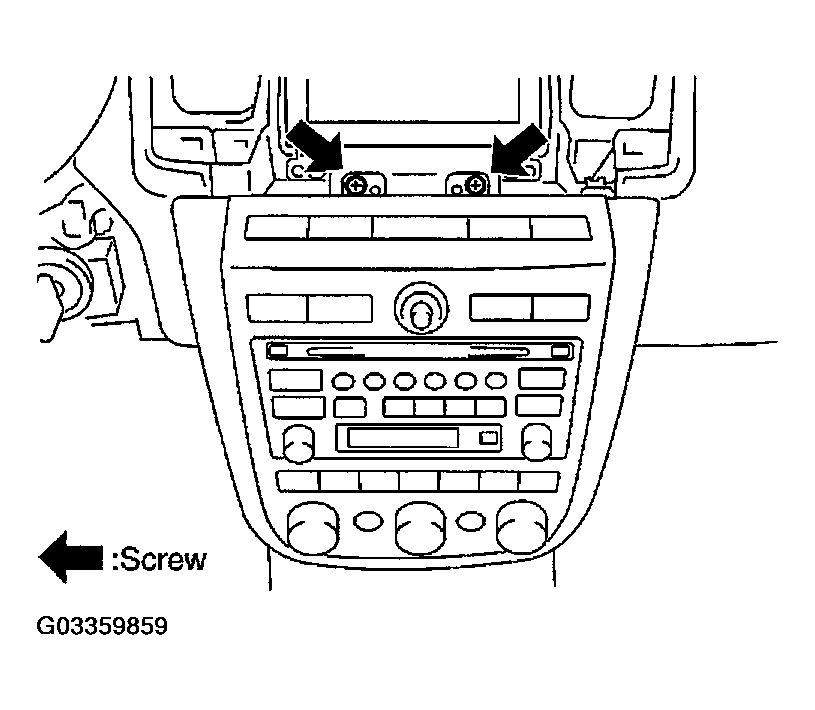

Remove screws (2).

Fig 1: Removing Screws
Courtesy of NISSAN MOTOR CO., U.S.A.

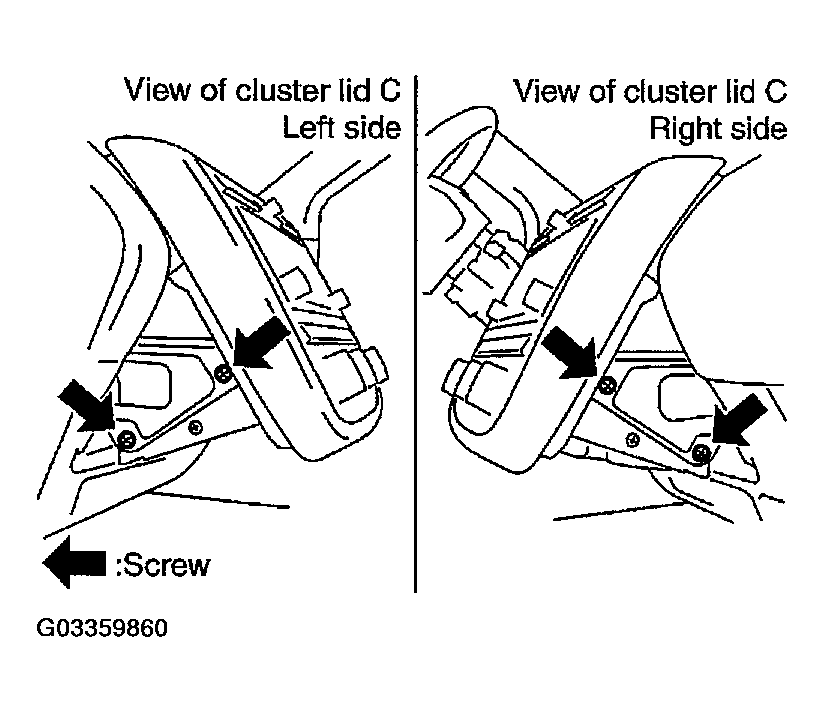

Remove screws (4).
Remove cluster lid C and audio unit.

Fig 2: Removing Cluster Lid C And Audio Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
Unlock FPC (Flexible Print Circuit) connector lock on A/C and AV switch side.
Pull off flexible printed circuit from connector.

Fig 3: Pulling Off Flexible Printed Circuit From Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

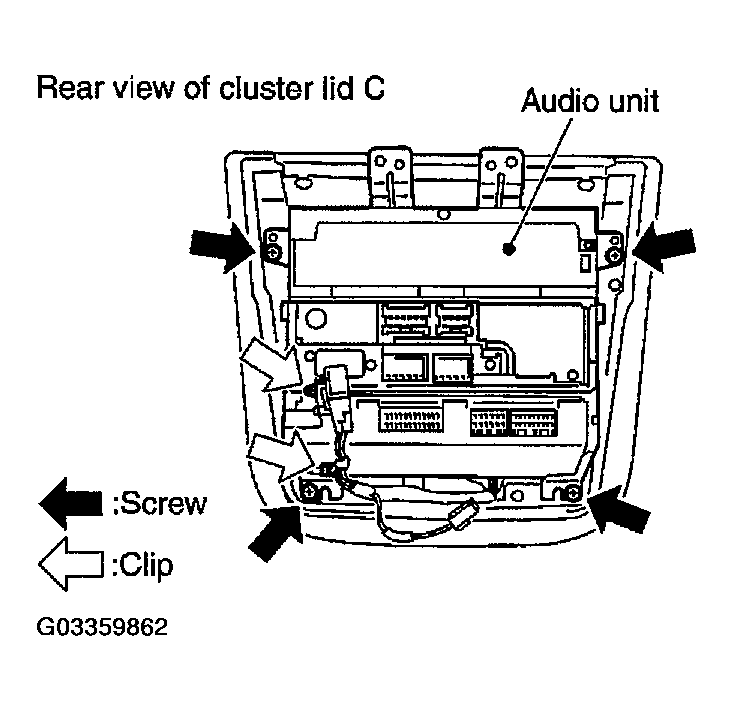

Remove screws (4) and clips (2). Then remove audio unit from cluster lid C.

Fig 4: Removing Audio Unit From Cluster Lid C
Courtesy of NISSAN MOTOR CO., U.S.A.

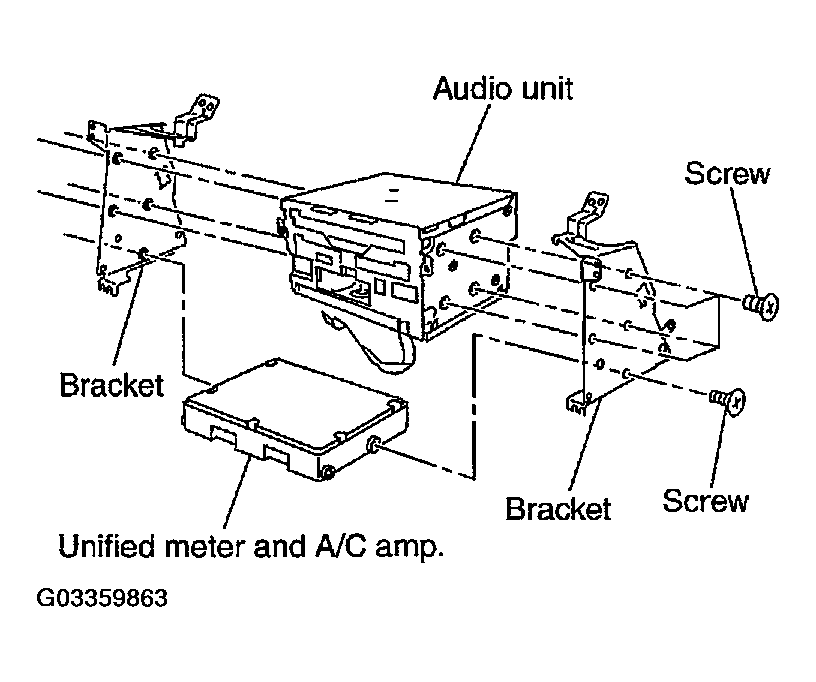

Remove audio unit screws (8), unified meter and A/C amp. screws (2) and remove bracket.
CAUTION:
- When carrying audio unit body, do not touch internal mechanism access from cassette tape slot.
- Be careful not to allow foreign material to enter from cassette tape slot.
- Use appropriate screws for each, as screws for audio unit are different from that for unified meter and A/C amp.
