BOSE System

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

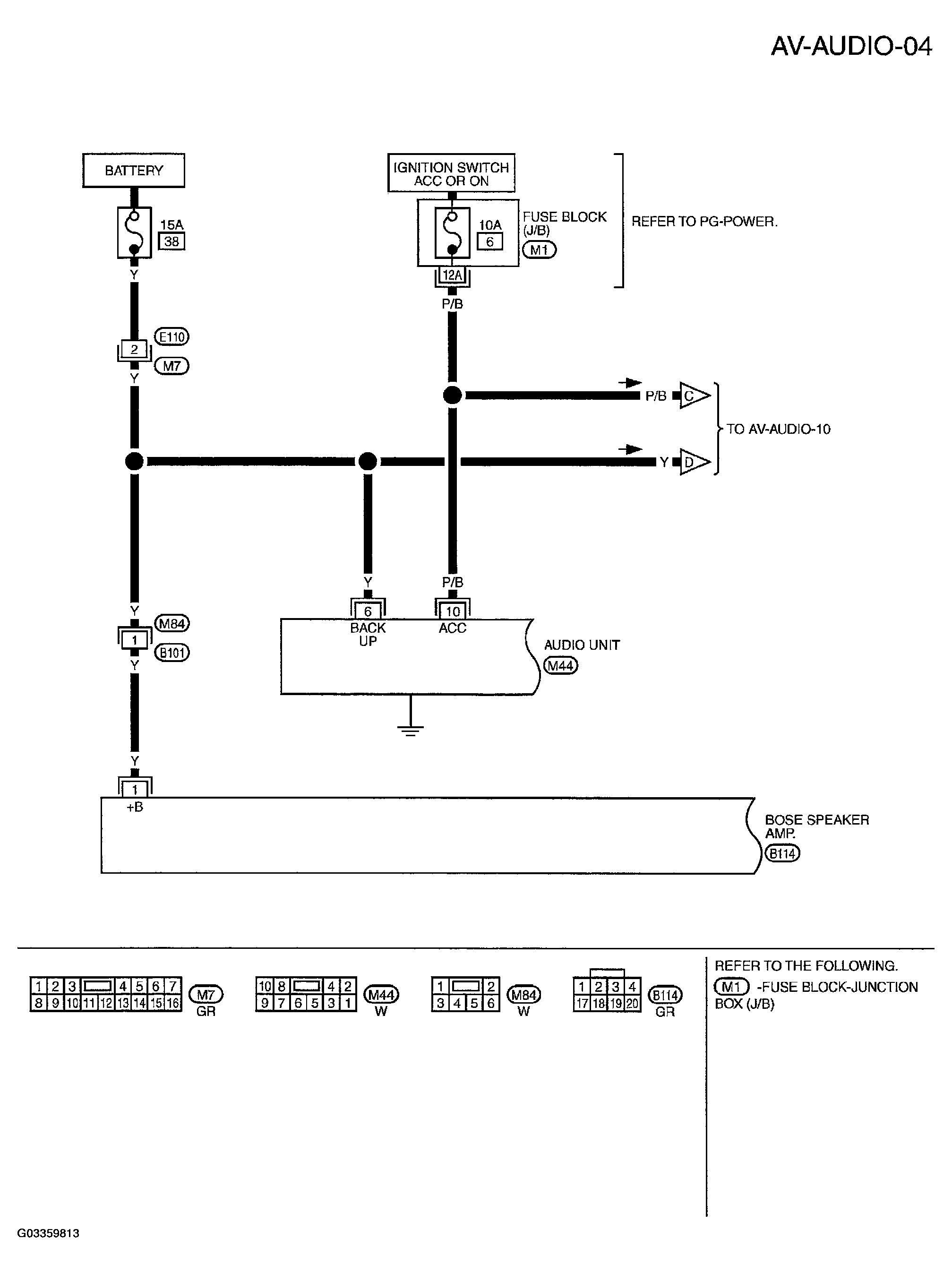

Fig 1: Wiring Diagram - Audio Bose System (1 Of 8)

G03359813

Courtesy of NISSAN MOTOR CO., U.S.A.

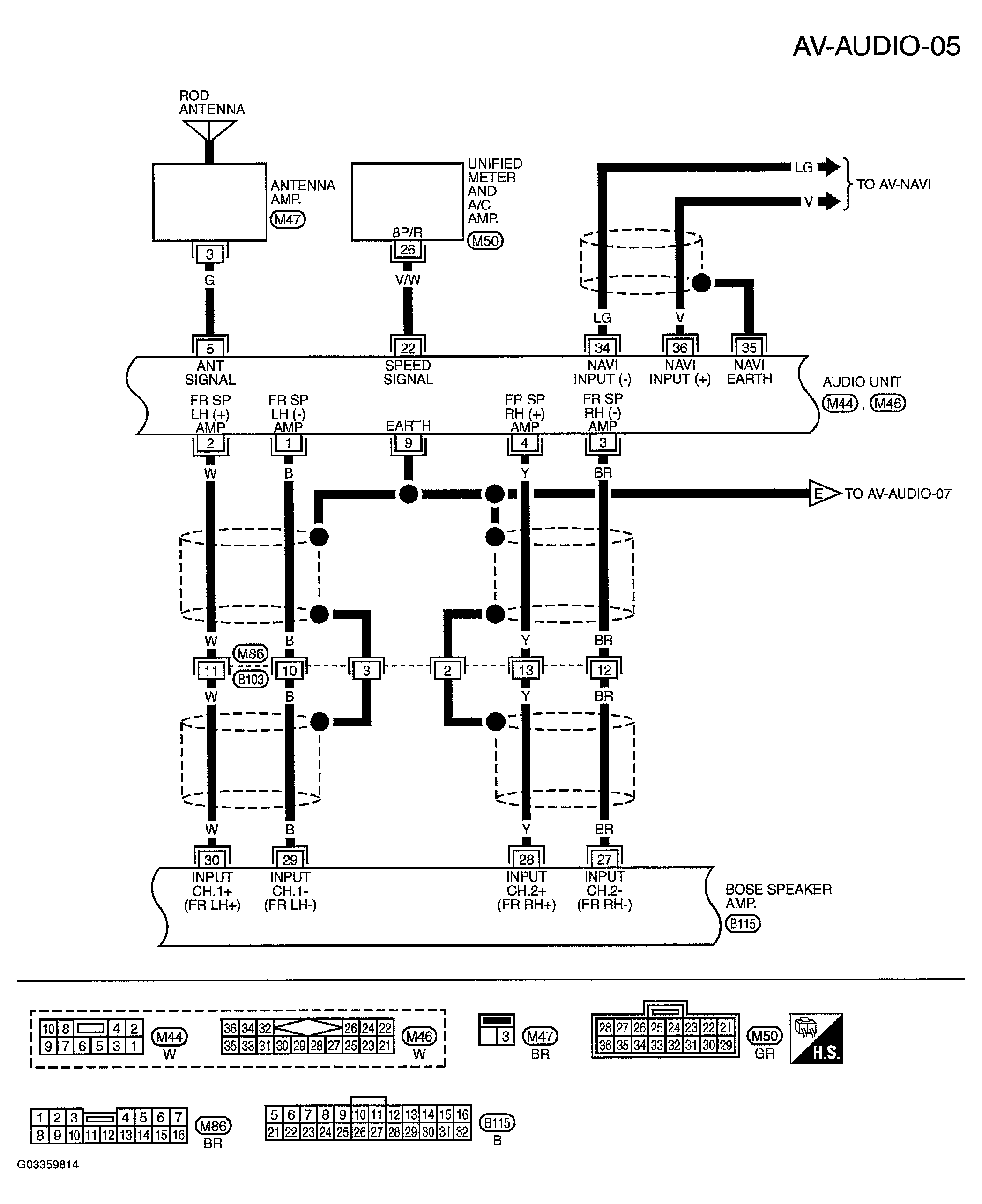

Fig 2: Wiring Diagram - Audio Bose System (2 Of 8)

G03359814

Courtesy of NISSAN MOTOR CO., U.S.A.

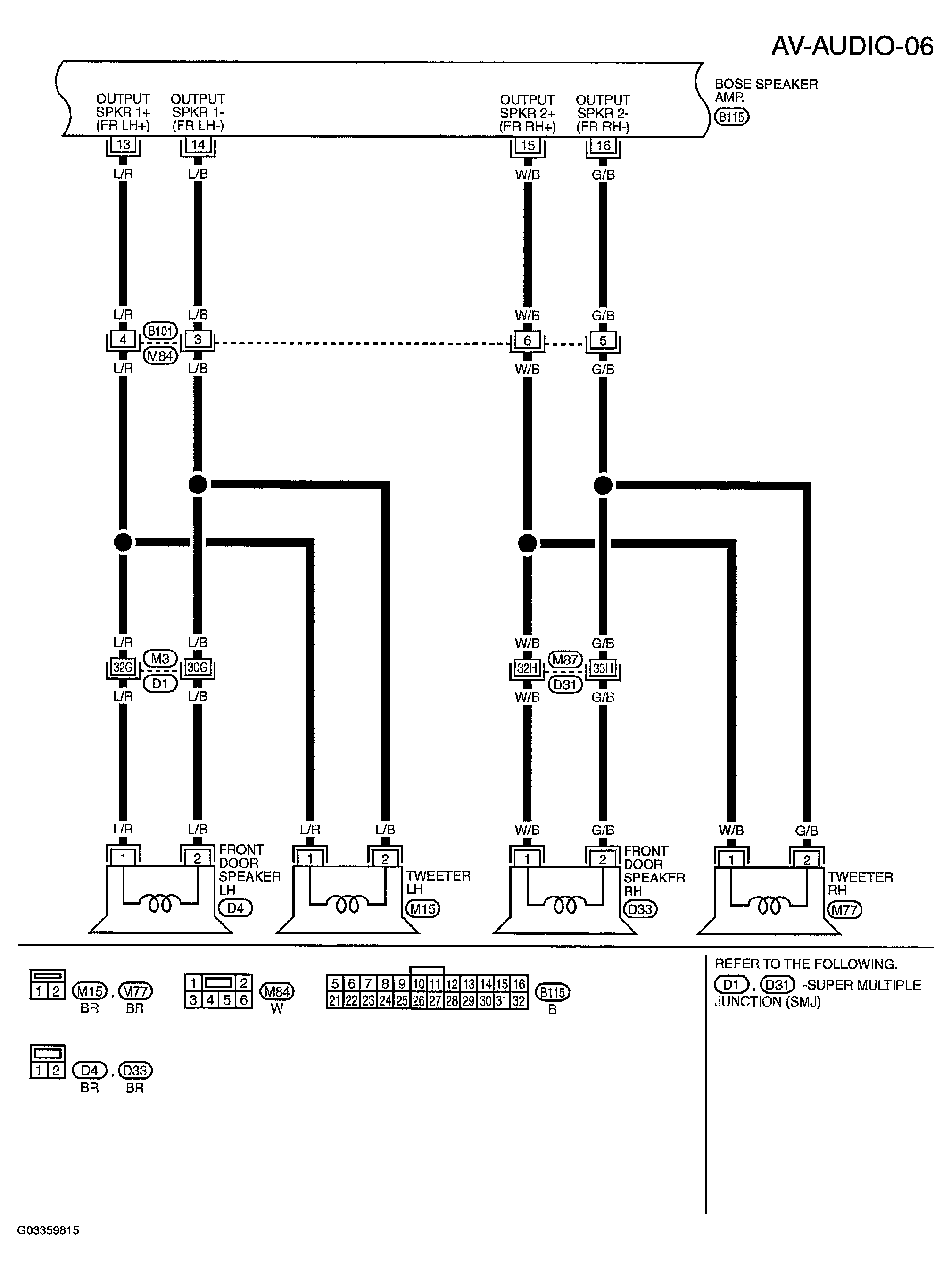

Fig 3: Wiring Diagram - Audio Bose System (3 Of 8)

G03359815

Courtesy of NISSAN MOTOR CO., U.S.A.

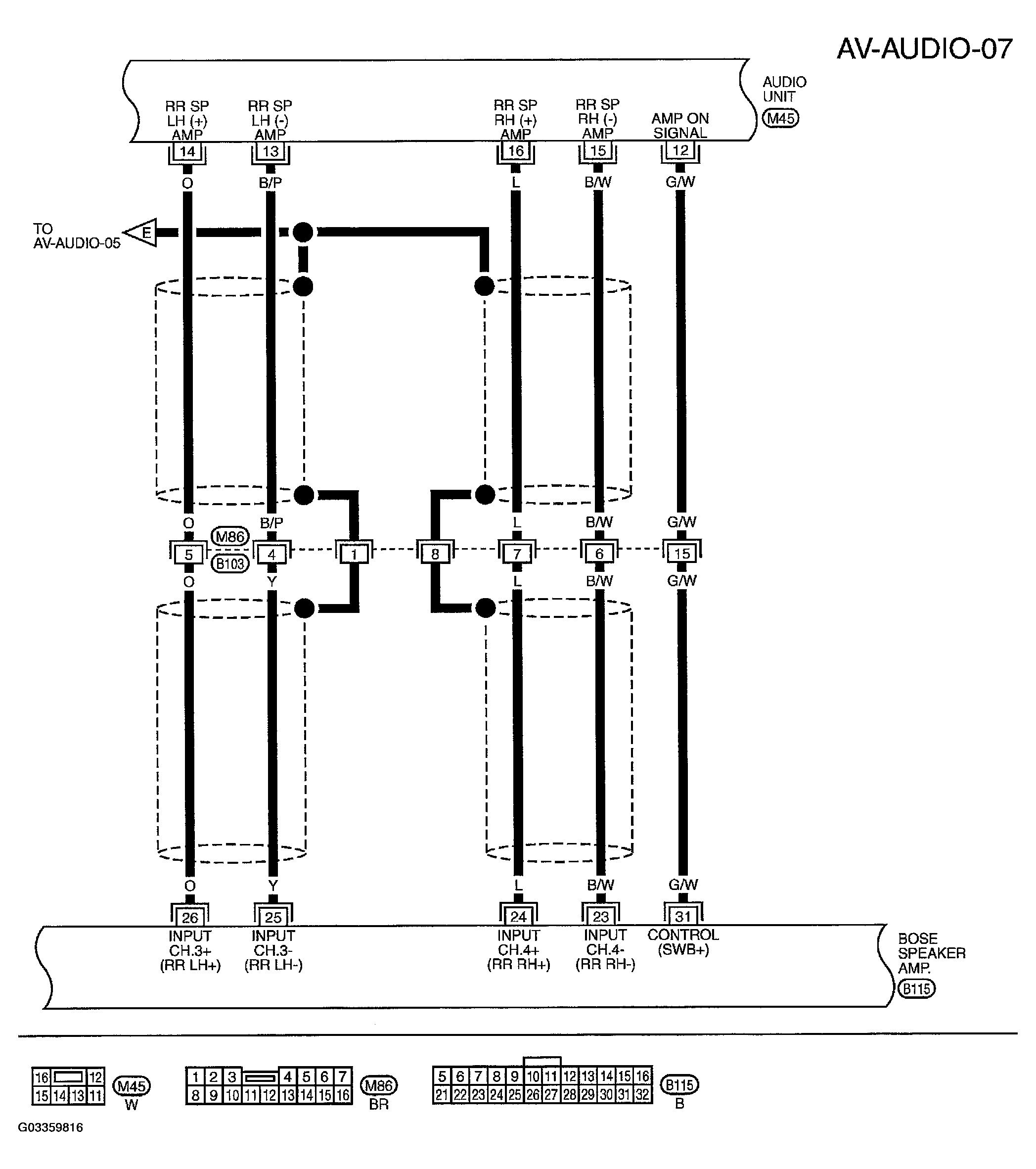

Fig 4: Wiring Diagram - Audio Bose System (4 Of 8)

G03359816

Courtesy of NISSAN MOTOR CO., U.S.A.

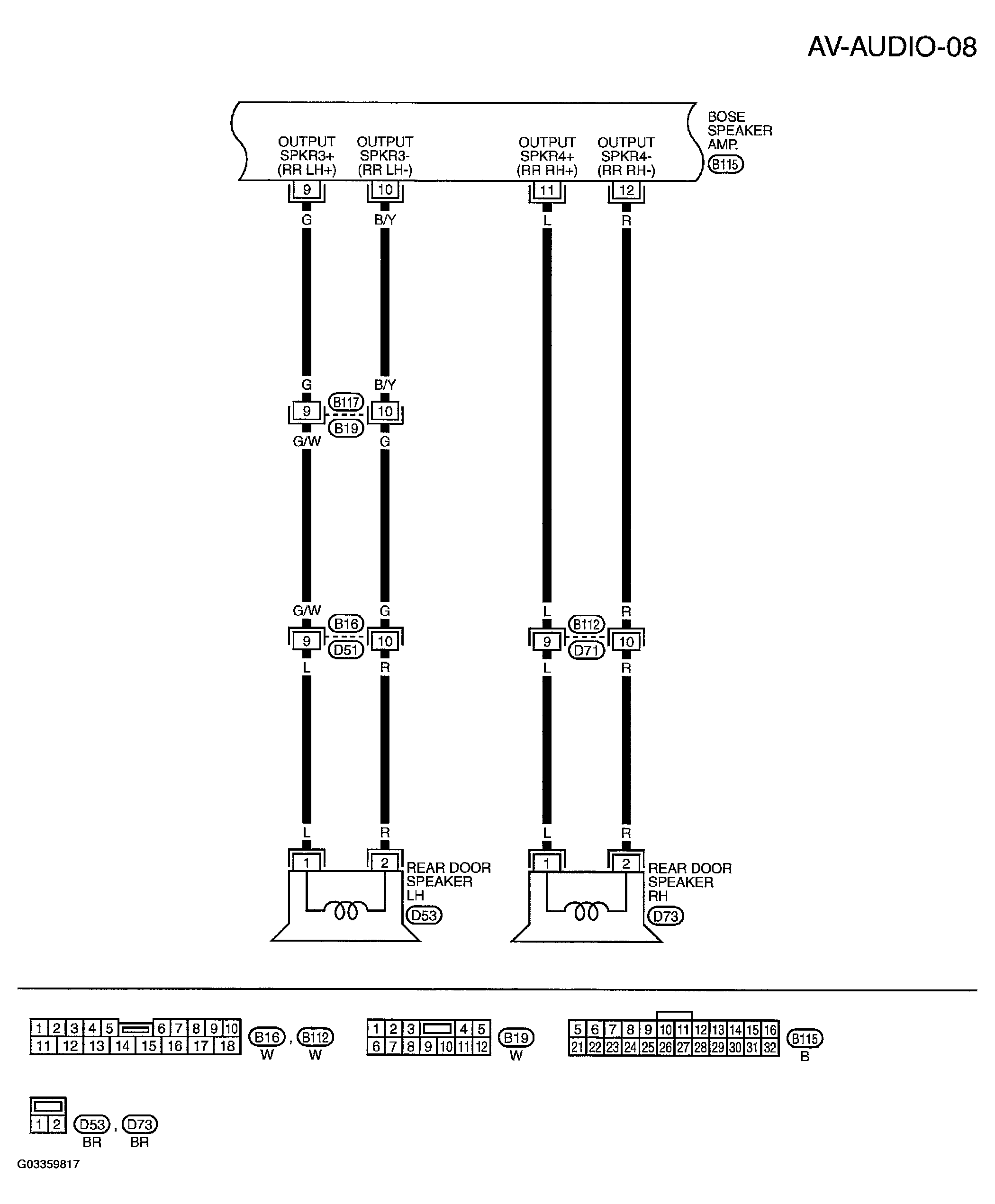

Fig 5: Wiring Diagram - Audio Bose System (5 Of 8)

G03359817

Courtesy of NISSAN MOTOR CO., U.S.A.

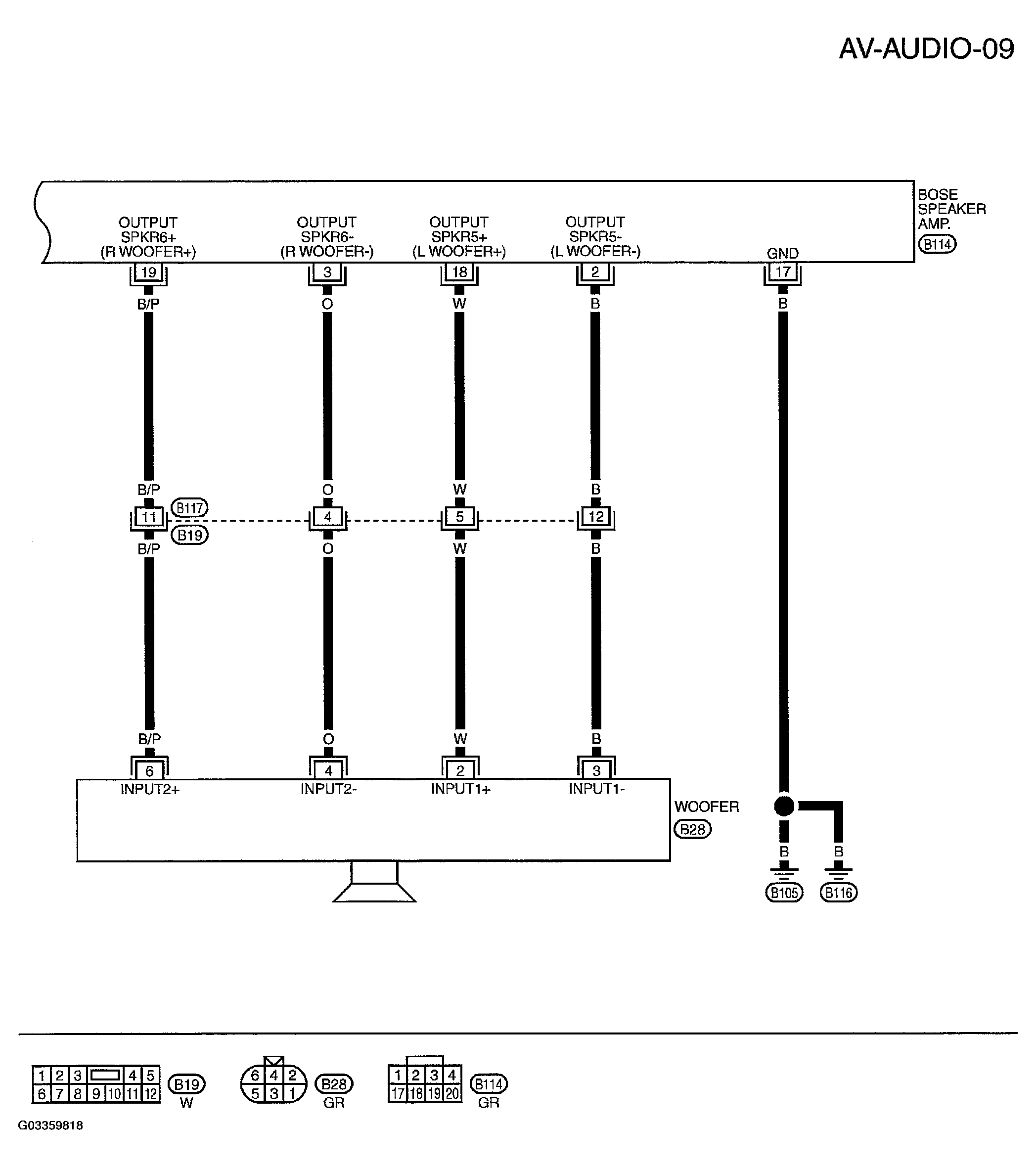

Fig 6: Wiring Diagram - Audio Bose System (6 Of 8)

G03359818

Courtesy of NISSAN MOTOR CO., U.S.A.

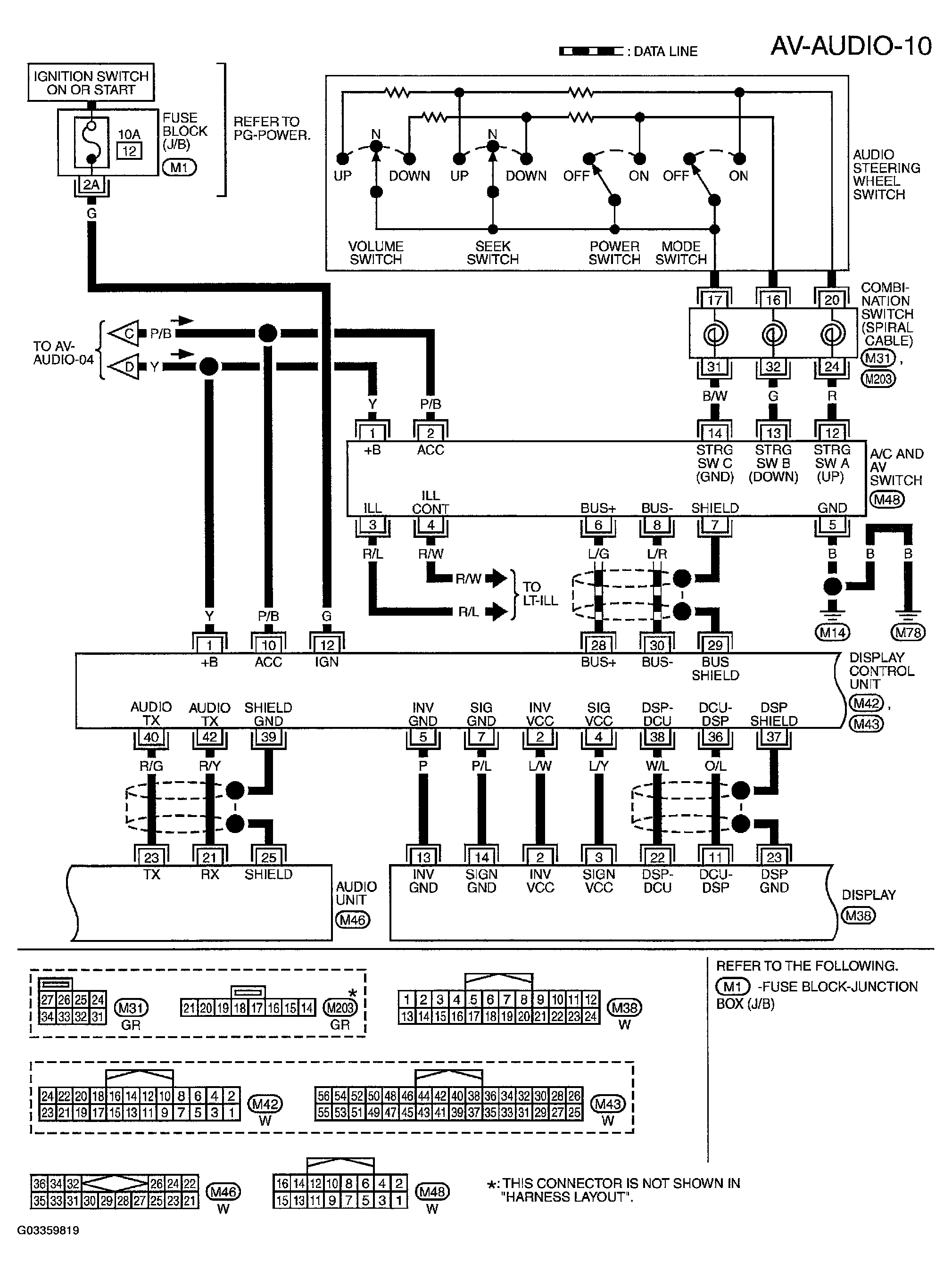

Fig 7: Wiring Diagram - Audio Bose System (7 Of 8)

G03359819

Courtesy of NISSAN MOTOR CO., U.S.A.

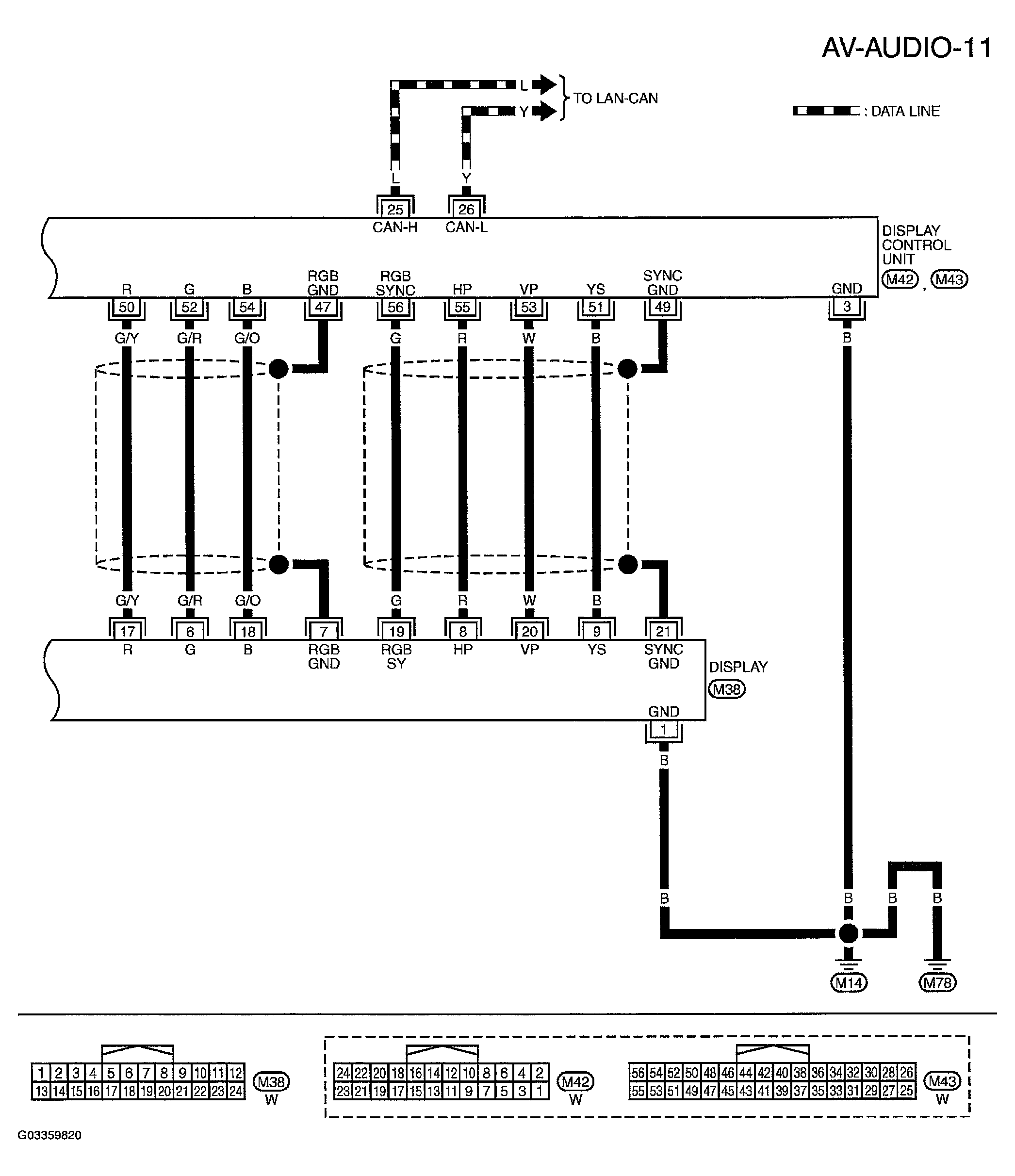

Fig 8: Wiring Diagram - Audio Bose System (8 Of 8)

G03359820

Courtesy of NISSAN MOTOR CO., U.S.A.
