Wiring Diagram - INF/D -

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

For references to "PG-Power" in wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS.

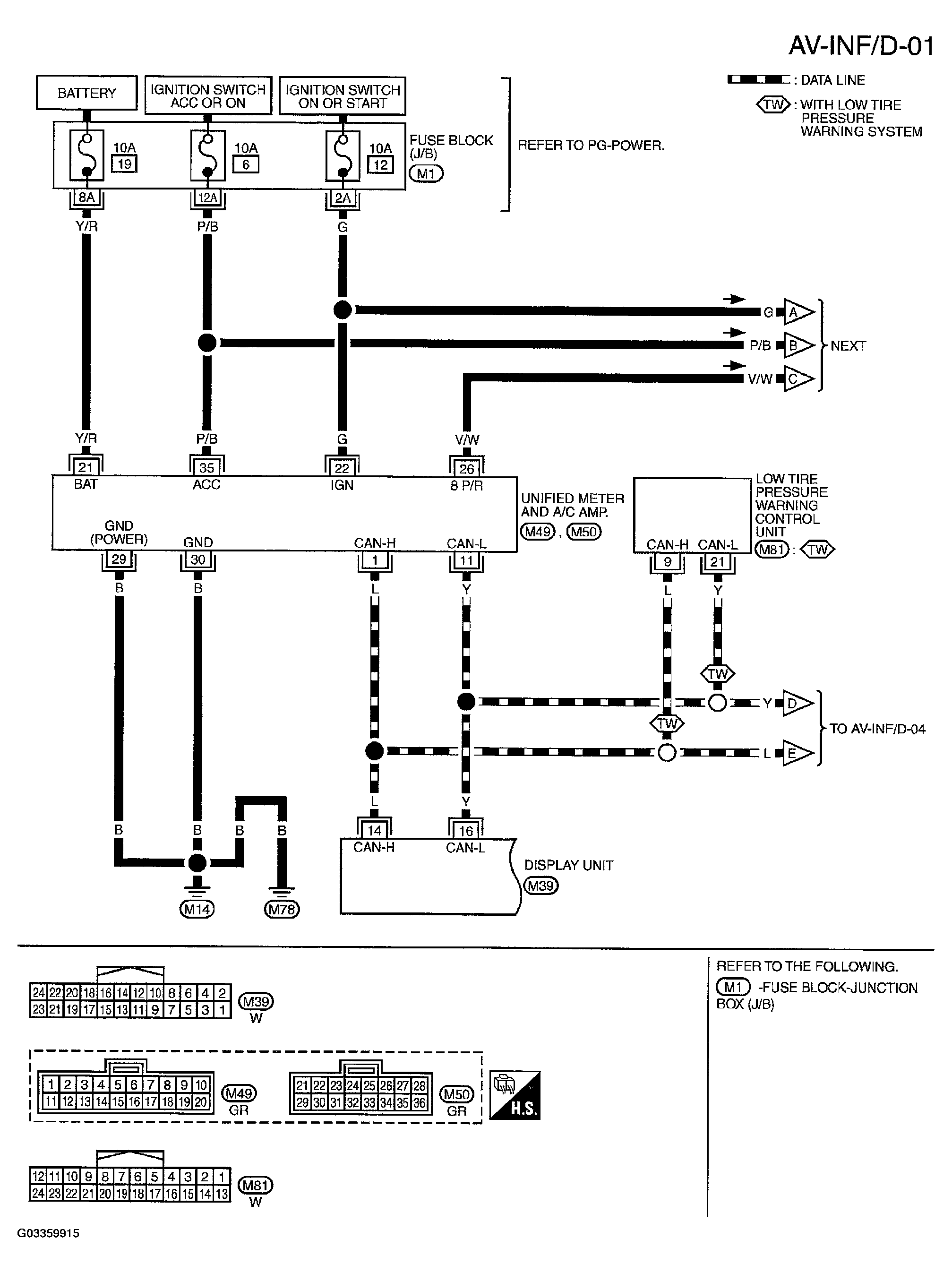

Fig 1: Wiring Diagram - Integrated Display System - AV-INF/D-01

G03359915

Courtesy of NISSAN MOTOR CO., U.S.A.

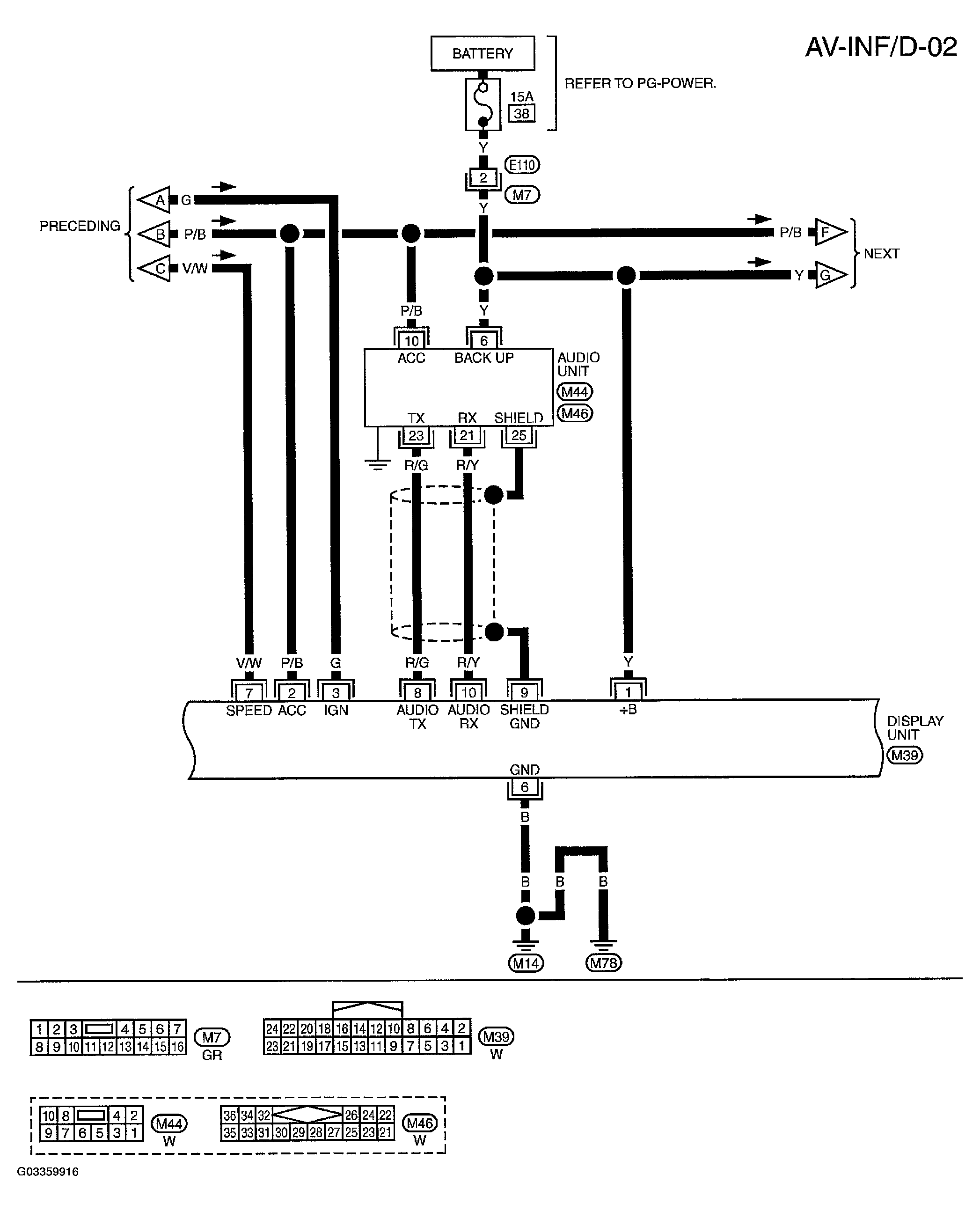

Fig 2: Wiring Diagram - Integrated Display System - AV-INF/D-02

G03359916

Courtesy of NISSAN MOTOR CO., U.S.A.

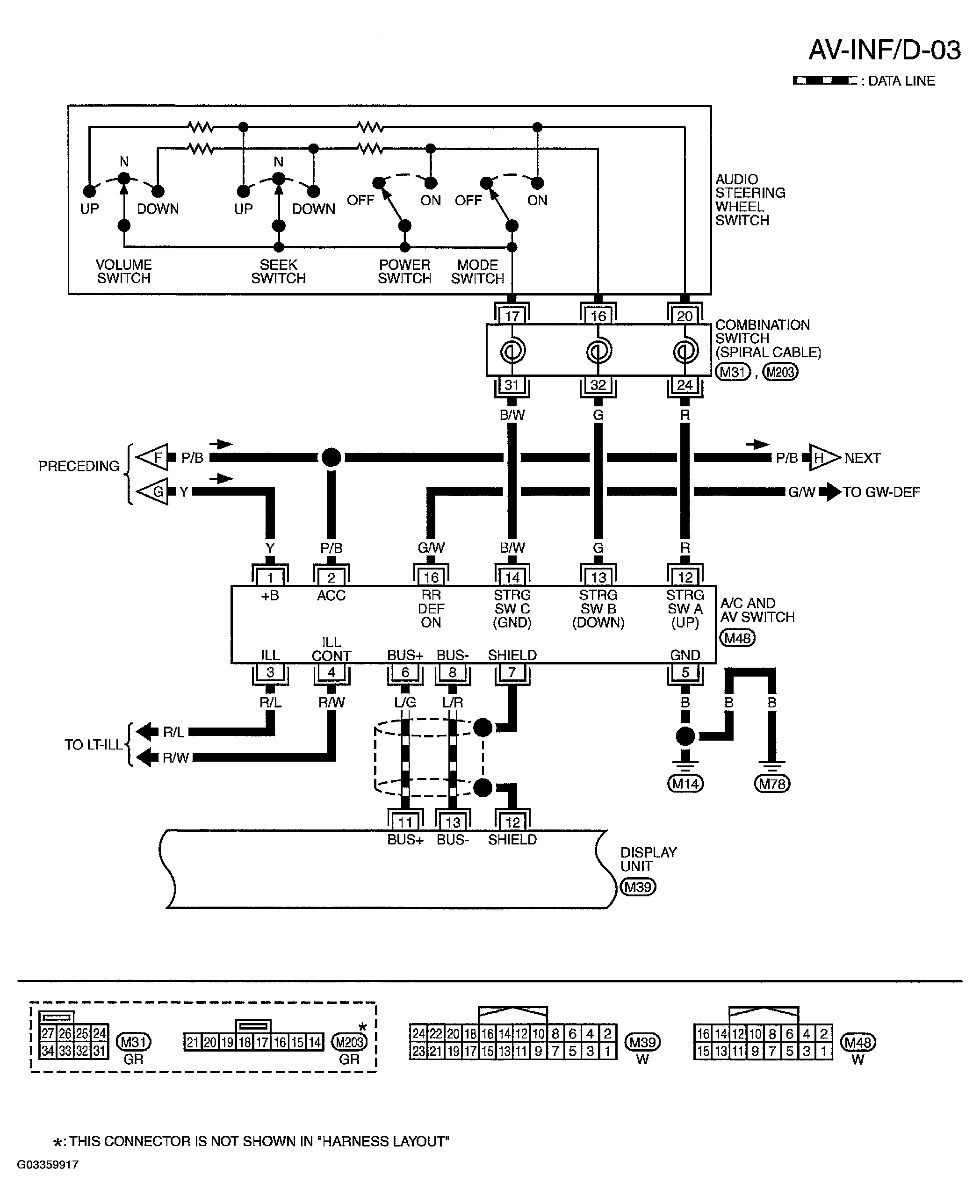

Fig 3: Wiring Diagram - Integrated Display System - AV-INF/D-03

G03359917

Courtesy of NISSAN MOTOR CO., U.S.A.

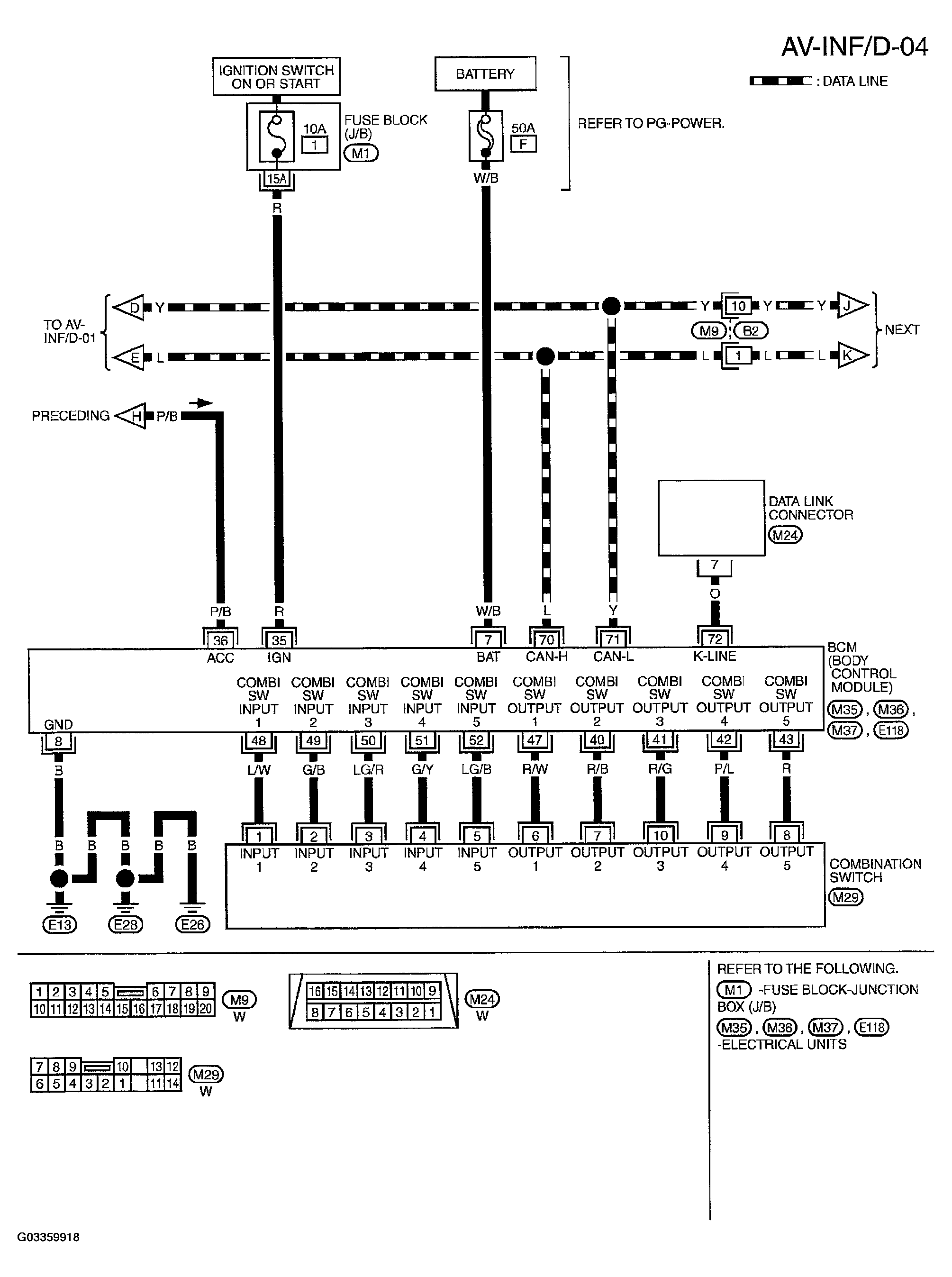

Fig 4: Wiring Diagram - Integrated Display System - AV-INF/D-04

G03359918

Courtesy of NISSAN MOTOR CO., U.S.A.

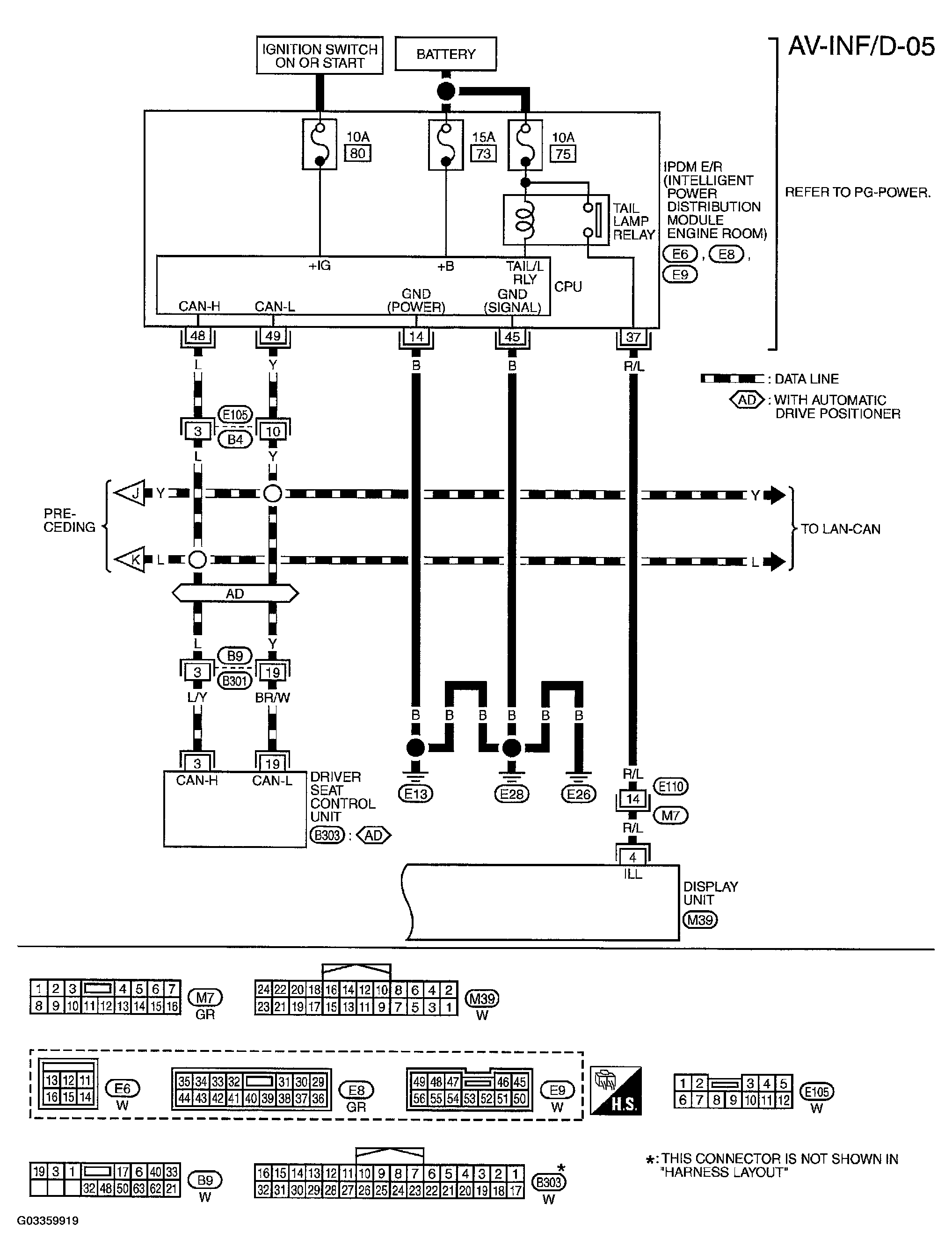

Fig 5: Wiring Diagram - Integrated Display System - AV-INF/D-05

G03359919

Courtesy of NISSAN MOTOR CO., U.S.A.
