Removal and Installation of NAVI Switch: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Remove audio unit from cluster lid C. Refer to REMOVAL AND INSTALLATION OF AUDIO UNIT .
Remove screws (8) and remove NAVI switch with A/C and audio controller.

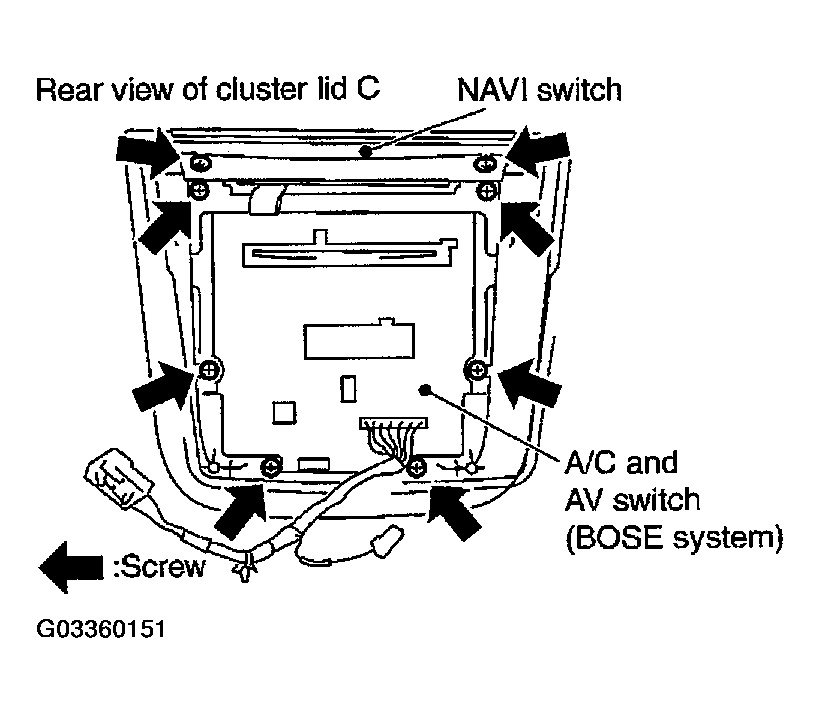

Fig 1: Removing NAVI Switch With A/C And Audio Controller
Courtesy of NISSAN MOTOR CO., U.S.A.
