Removal and Installation of NAVI control unit: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console. Refer to REMOVAL AND INSTALLATION .
  2. Remove console cover (LH and RH). Refer to REMOVAL AND INSTALLATION .
  3. Remove control device assembly and remove NAVI control unit screws (2) and nut.
  4. Disconnect NAVI control unit connector.

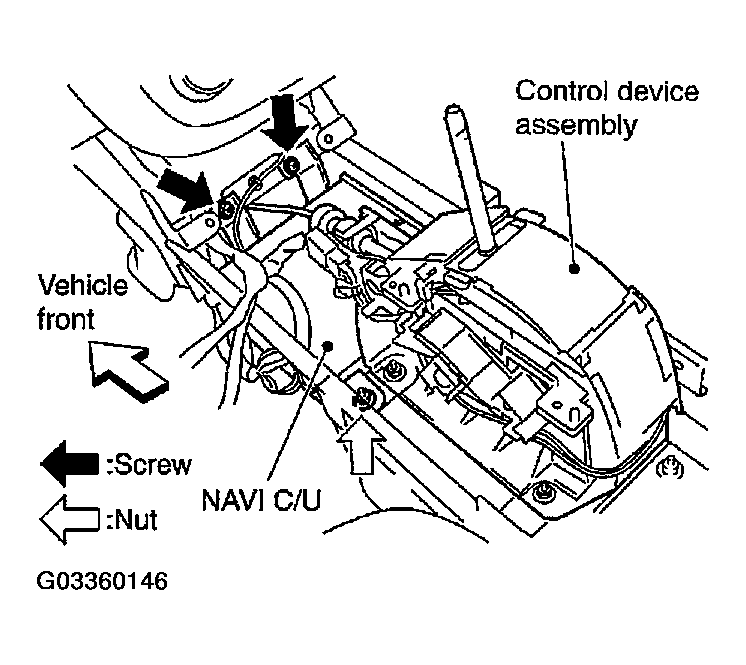

    Fig 1: Disconnecting NAVI Control Unit Connector
    G03360146Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Pull NAVI control unit to a cock, then your side.
    CAUTION: Cover unit with cloth avoid contact with console box bracket that may cause scratches or damages.

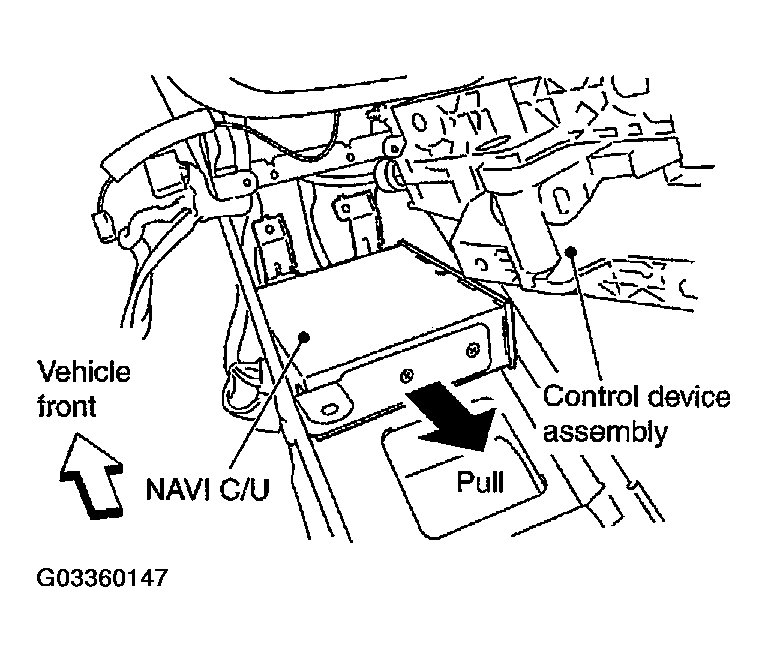

    Fig 2: Removing NAVI Control Unit
    G03360147Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove screws (4) and remove bracket.
    Fig 3: Removing Bracket
    G03360148Courtesy of NISSAN MOTOR CO., U.S.A.
