Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Install the RH heat shield bolts.
1. RH heat shield bolts: 5.8 N.m (0.59 kg-m, 51 in-lb)

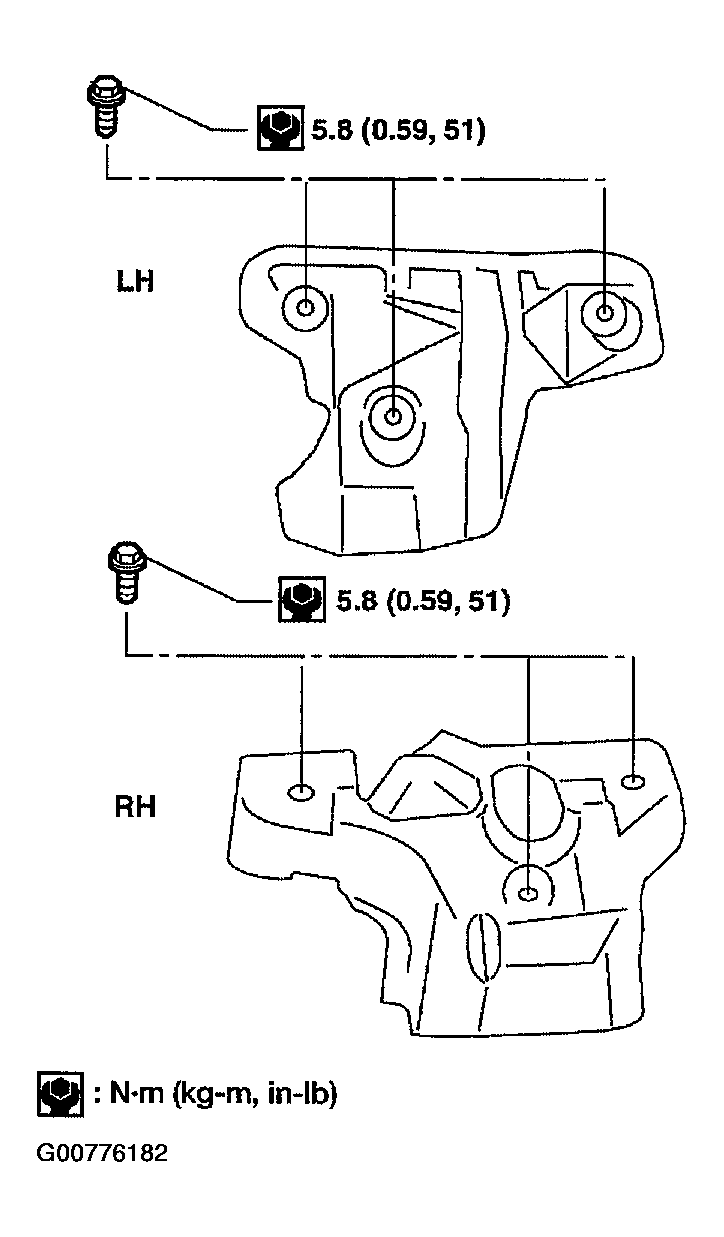

Fig 1: Installing RH Heat Shield Bolts & Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
