Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Drain the coolant from the radiator.
CAUTION: Perform when Engine is cold.
Partially drain the A/T fluid.
Remove fresh air duct.
Disconnect radiator upper and lower hoses.
Disconnect the A/T fluid cooler hoses.
- Plug hoses to avoid leakage of A/T fluid.
Disconnect the reservoir tank hose.

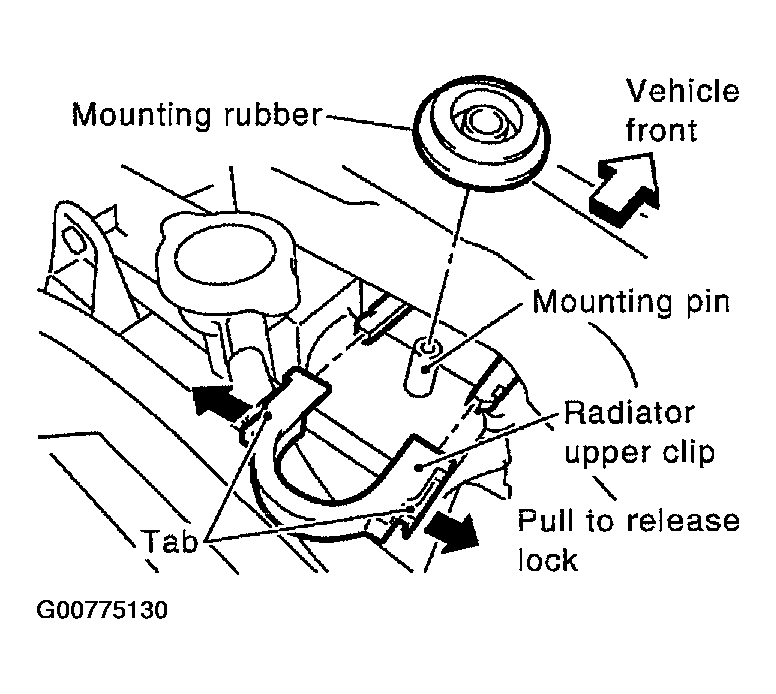

Remove the radiator upper clips by pulling the tabs outside to release the lock, as shown.

Fig 1: Removing Radiator Upper Clips
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: To prevent damage, do not pull lock tabs excessively.
Disconnect fan electrical connectors.
Remove the radiator fan assembly.
CAUTION: Do not damage or scratch A/C condenser and radiator core when removing.
If necessary, remove the radiator fan assembly from the radiator. Refer to "DISASSEMBLY AND ASSEMBLY OF RADIATOR FAN ".
If necessary, remove the mounting rubber from the radiator.
