ASCD Indicator: Wiring Diagram

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

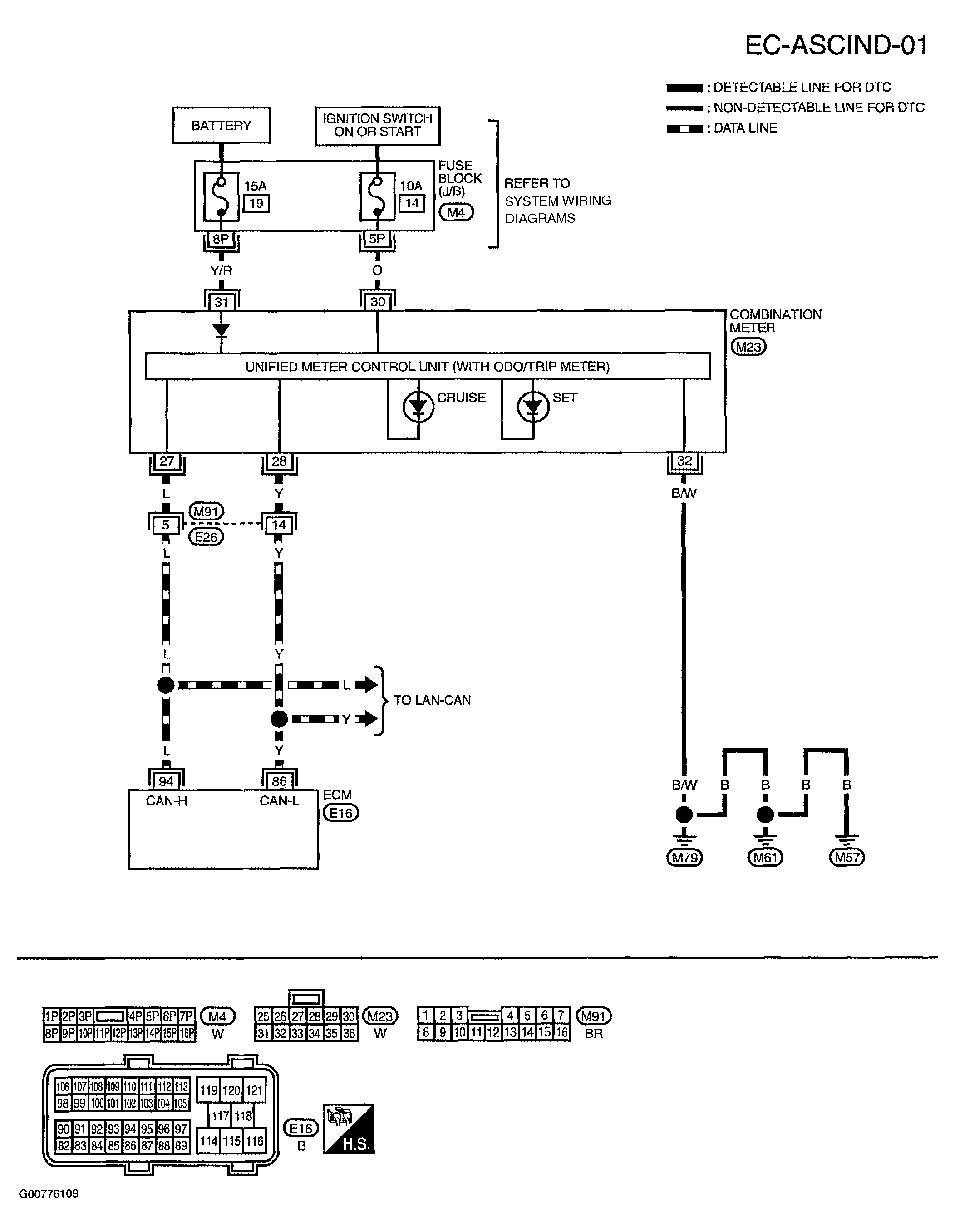

Fig 1: displaying EC-ASCIND-01 Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
