Input/Output Signal Chart

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

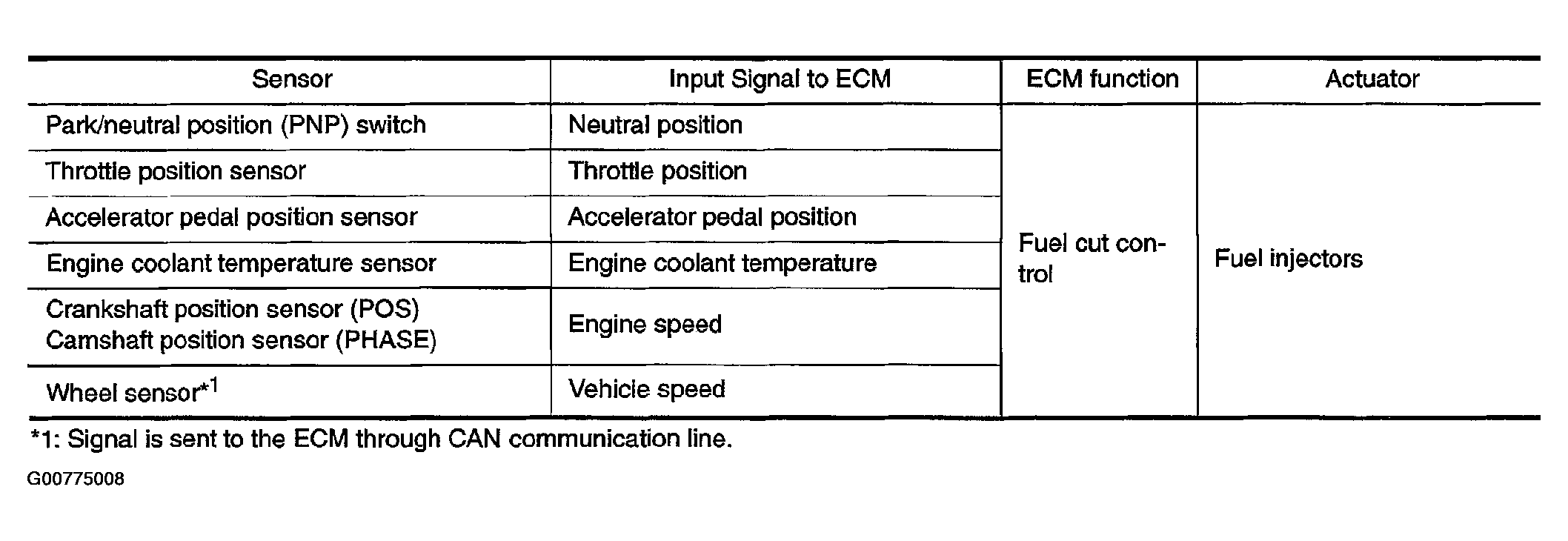

Fig 1: Fuel Cut Control (At No Load And High Engine Speed) Input/Output Signal Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
