Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Check that the wheel bearing operates smoothly.
Check that the wheel hub bearing axial end play is within specification as shown.

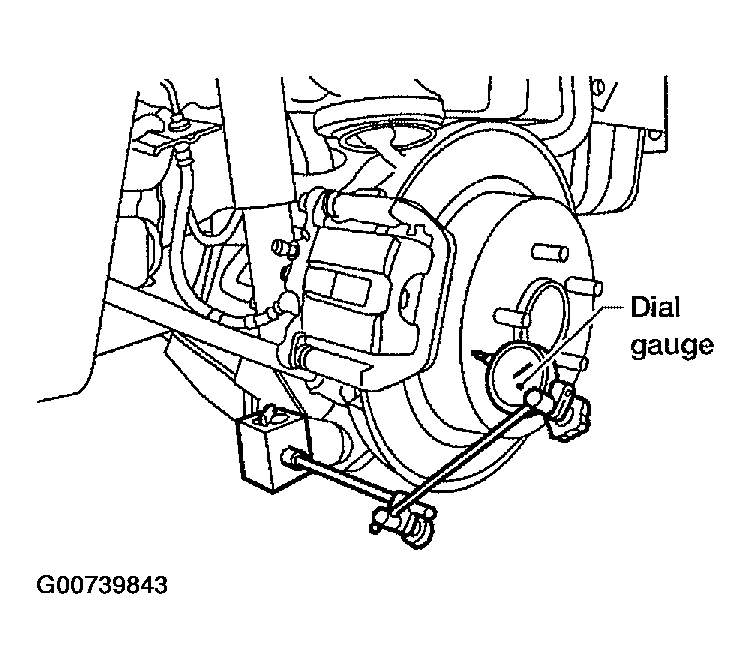

Fig 1: Checking Wheel Hub Bearing Axial End Play
Courtesy of NISSAN MOTOR CO., U.S.A.

Axial end play : 0.1 mm (0.004 in) or less
