Operation Chart

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

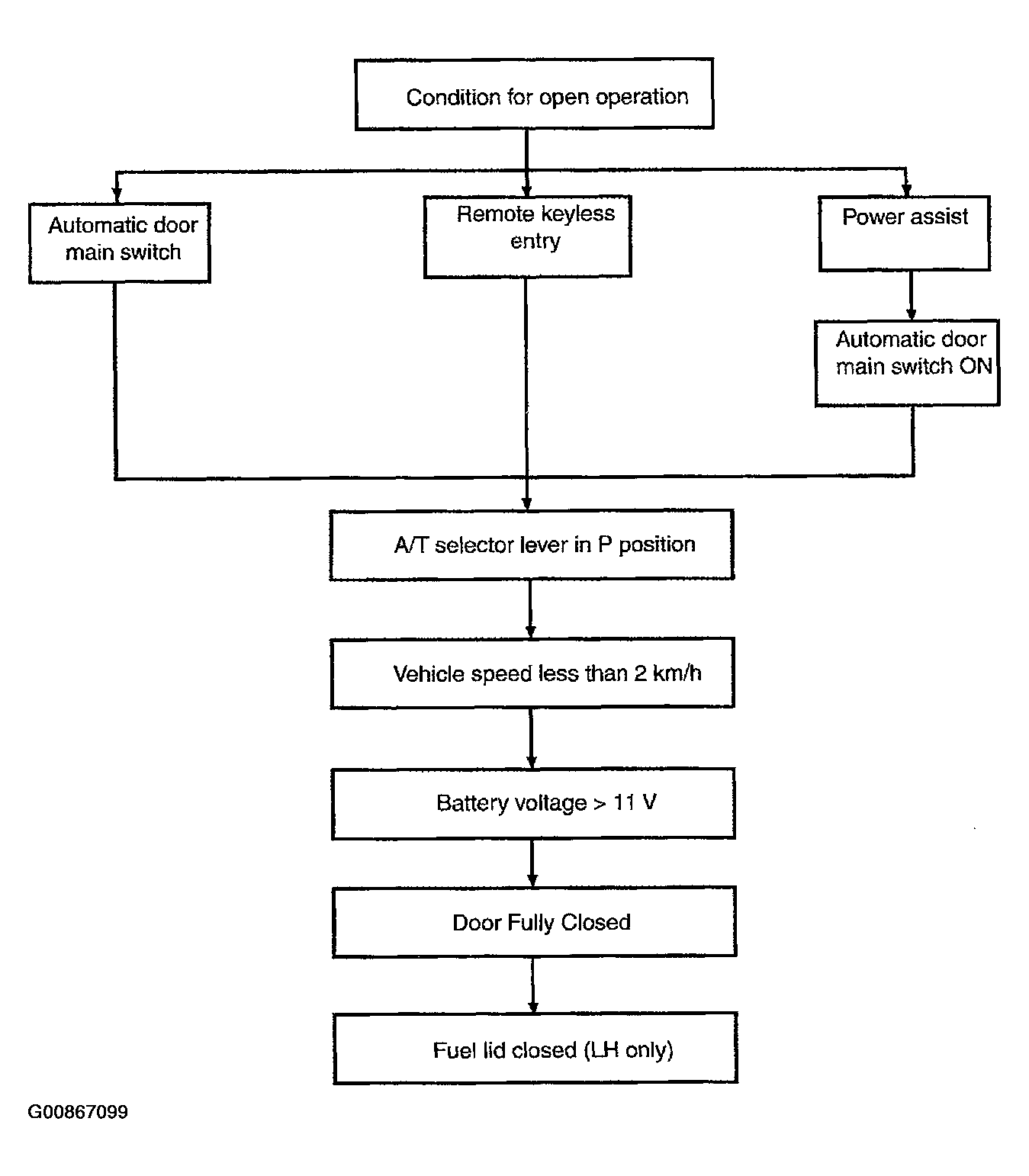

Fig 1: Open Operation From Fully Closed - Operation Flow Chart
G00867099Courtesy of NISSAN MOTOR CO., U.S.A.

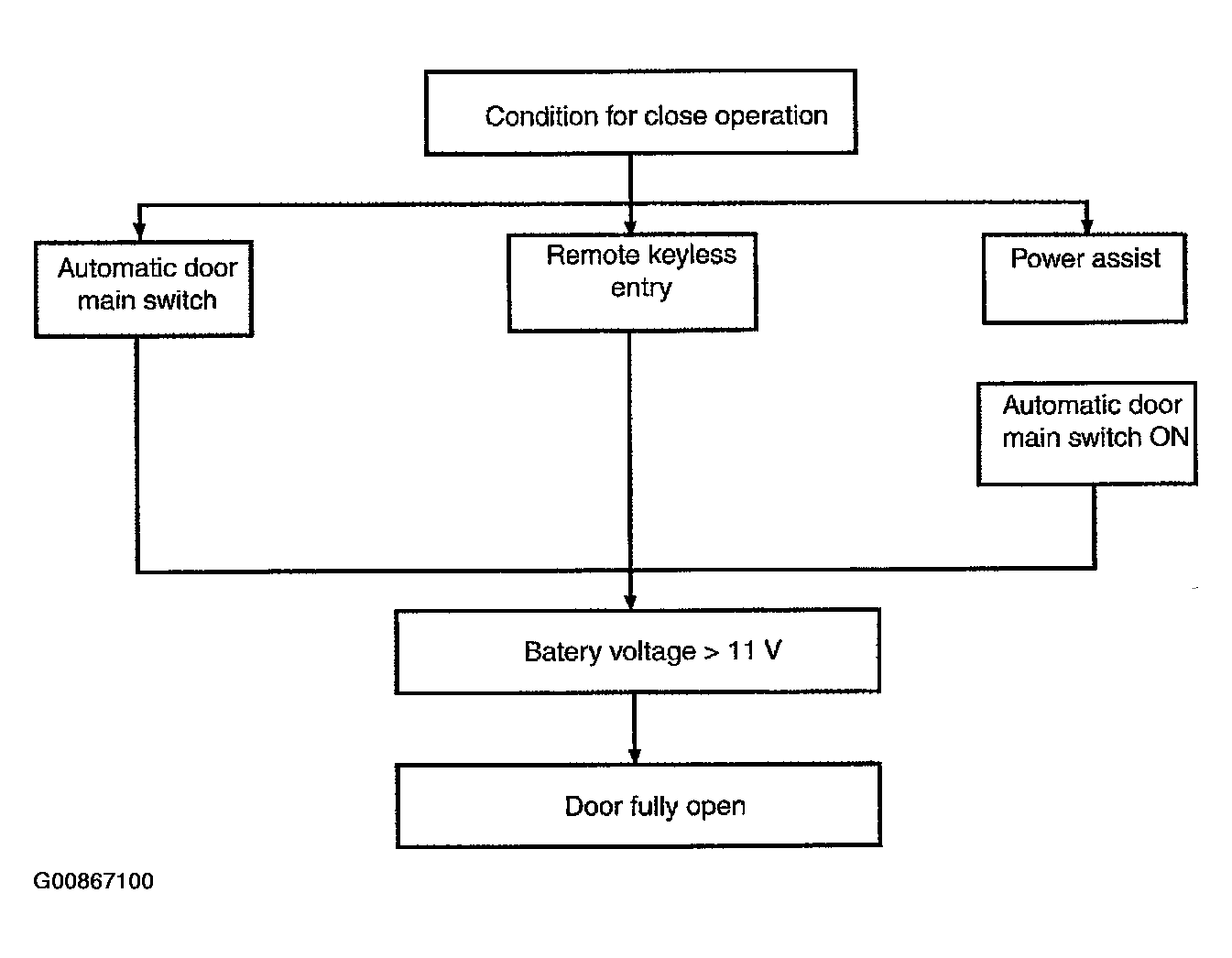

Fig 2: Close Operation From Fully Open - Operation Flow Chart
G00867100Courtesy of NISSAN MOTOR CO., U.S.A.
