Ducts And Grilles: Components

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

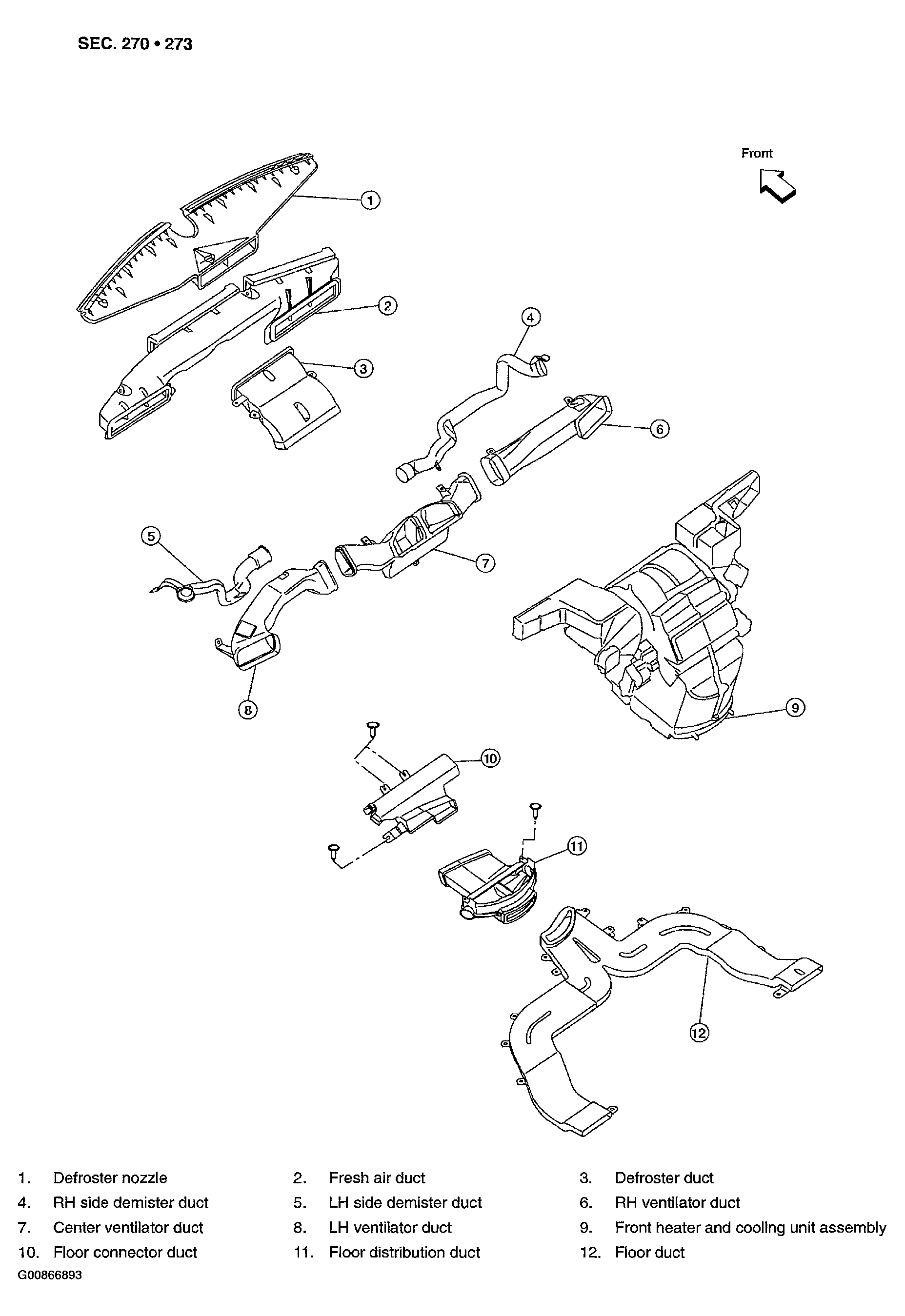

Fig 1: Identifying Ducts - Front Heater And Cooling Unit Assembly
G00866893Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Defroster nozzle
  2. Fresh air duct
  3. Defroster duct
  4. RH side demister duct
  5. LH side demister duct
  6. RH ventilator duct
  7. Center ventilator duct
  8. LH ventilator duct
  9. Front heater and cooling unit assembly
  10. Floor connector duct
  11. Floor distribution duct
  12. Floor duct

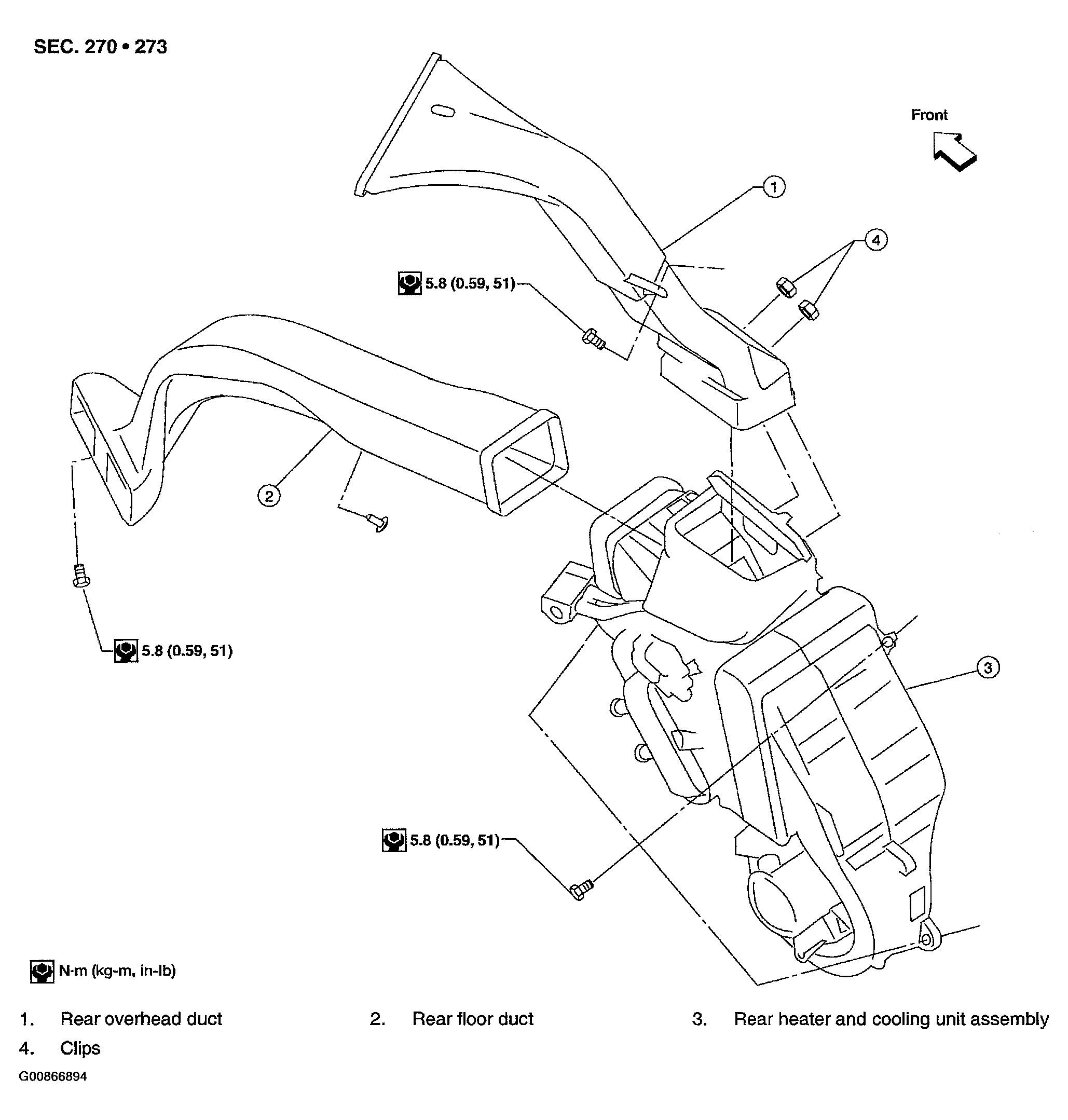

Fig 2: Identifying Ducts - Rear Heater And Cooling Unit Assembly
G00866894Courtesy of NISSAN MOTOR CO., U.S.A.

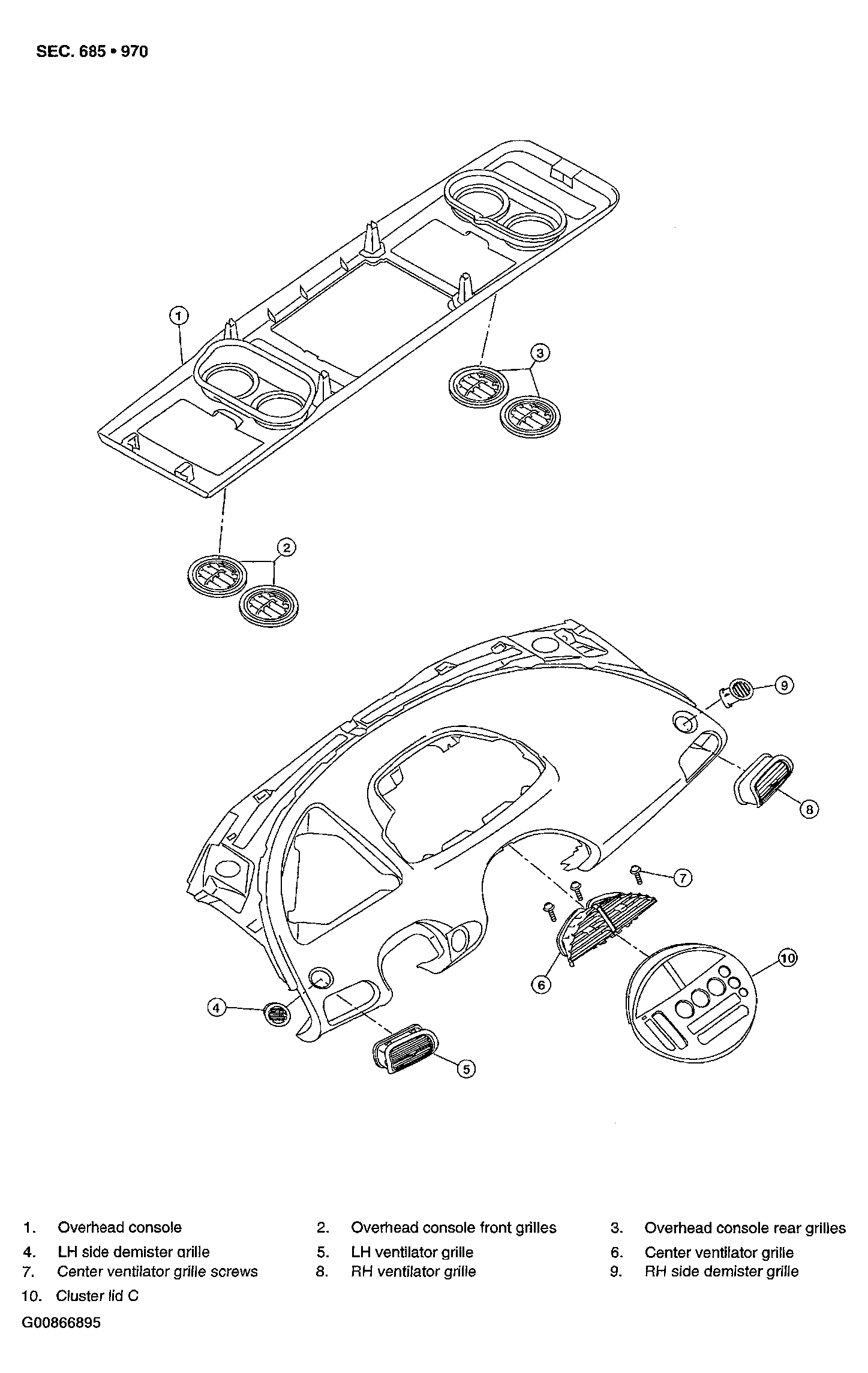

Fig 3: Identifying Ducts And Grilles Component
G00866895Courtesy of NISSAN MOTOR CO., U.S.A.
