Service Hoses

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Be certain that the service hoses display the markings described (colored hose with black stripe). All hoses must include positive shut-off devices (either manual or automatic) near the end of the hoses opposite the manifold gauge.

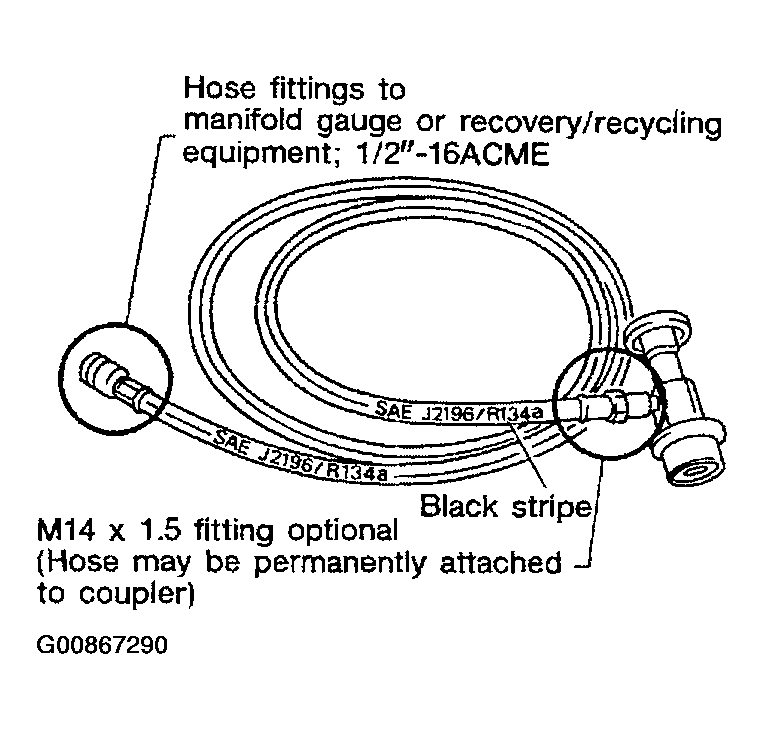

Fig 1: Identifying Service Hoses
G00867290Courtesy of NISSAN MOTOR CO., U.S.A.
