How To Use This Article : Components
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks of work and hidden or tricky steps which are not shown in the previous large illustrations. Assembly, inspection and adjustment procedures for the complicated units such as the automatic transaxle or transmission, etc. are presented in a step-by-step format where necessary.

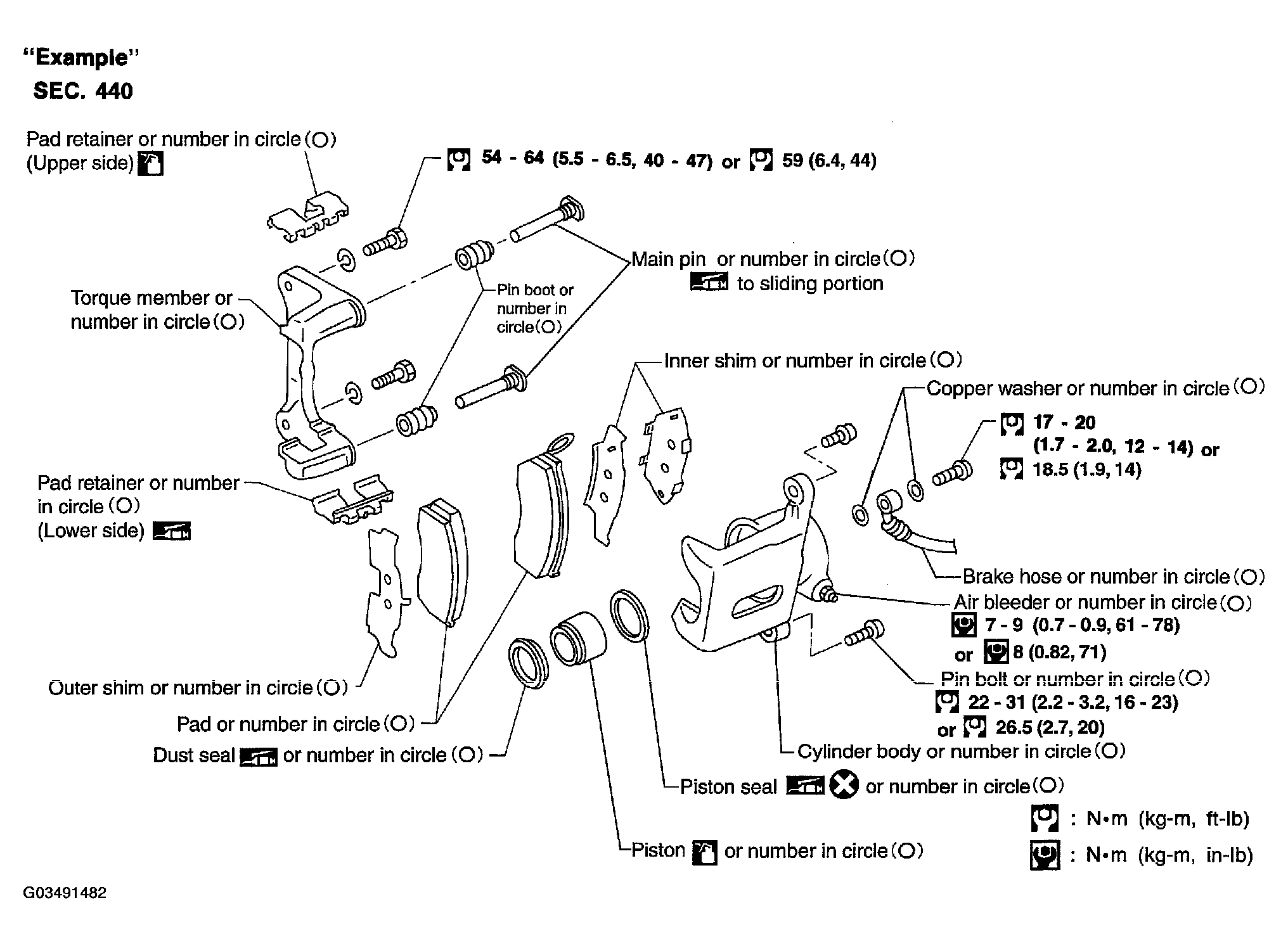

- THE LARGE ILLUSTRATIONS
are exploded views (See Fig 1 and Fig 2

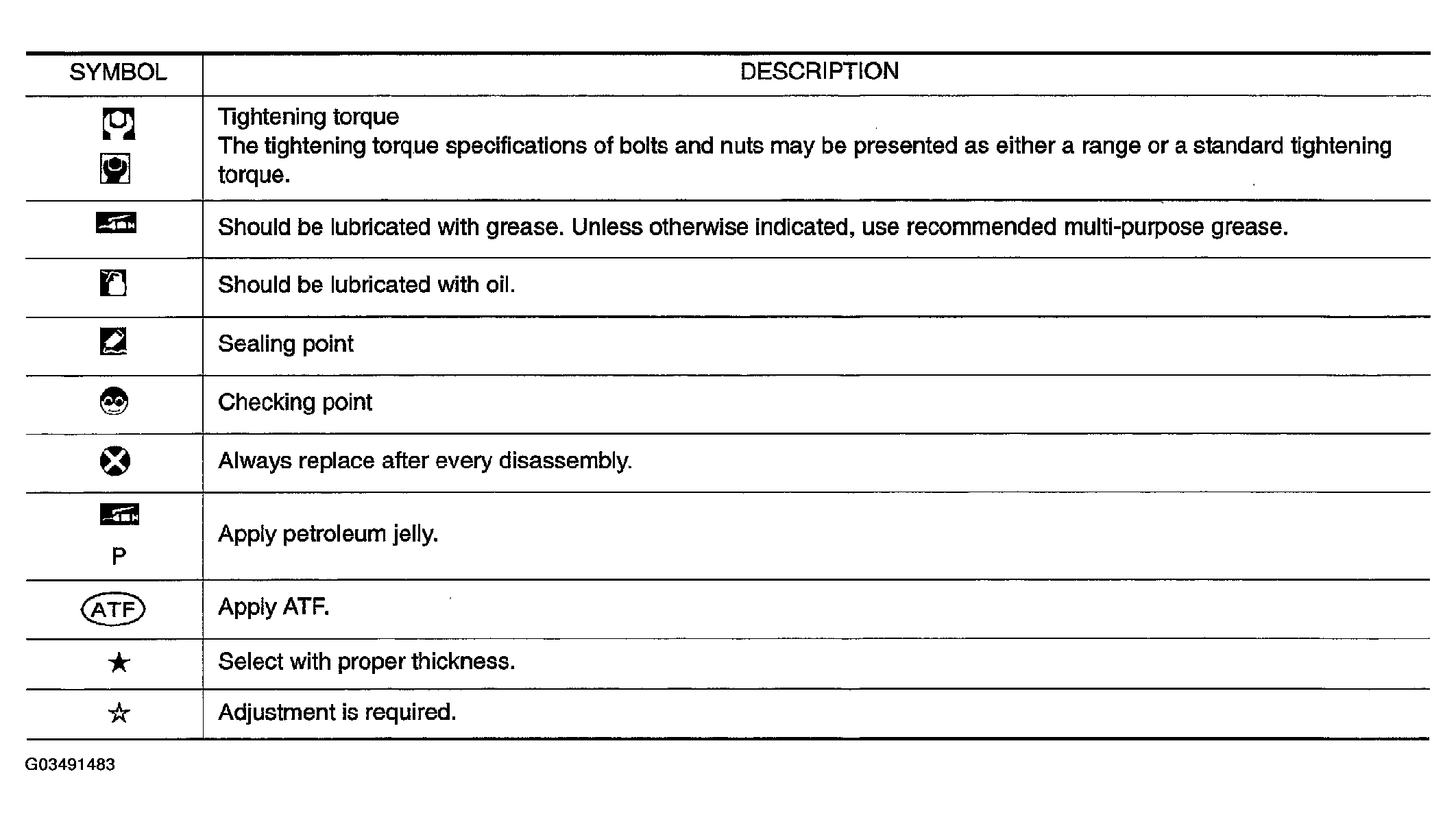

) and contain tightening torques, lubrication points,
and other information necessary to perform repairs.
The illustrations should be used in reference to service matters only.
Components shown in an illustration may be identified by a circled number. When this style of illustration is used, the text description of the components will follow the illustration.
