CONSULT-II Reference Value in Data Monitor Mode

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

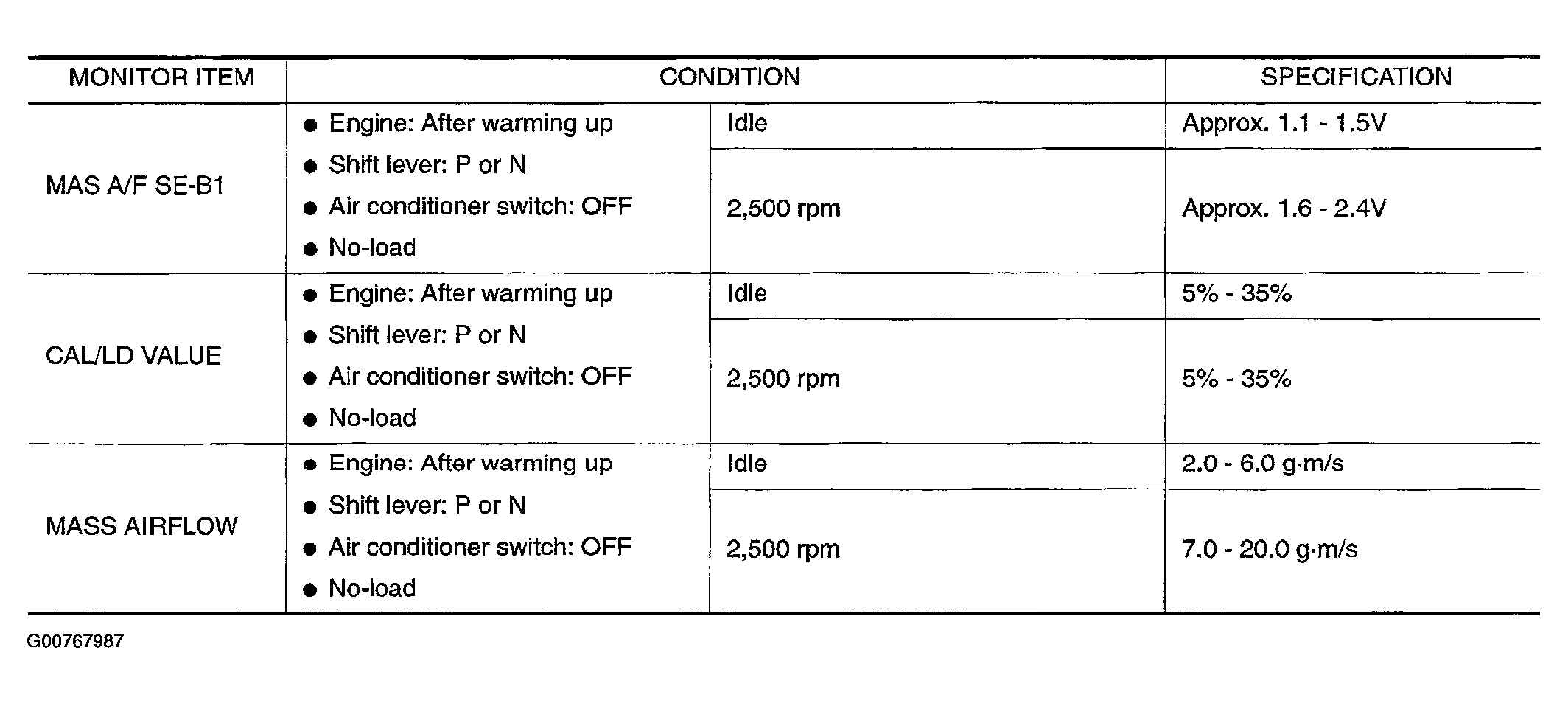

Fig 1: Data Monitor CONSULT-II Reference Value Chart (P0101)

Courtesy of NISSAN MOTOR CO., U.S.A.
