On Board Diagnosis Logic: Notes

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

These self-diagnoses have the one trip detection logic.

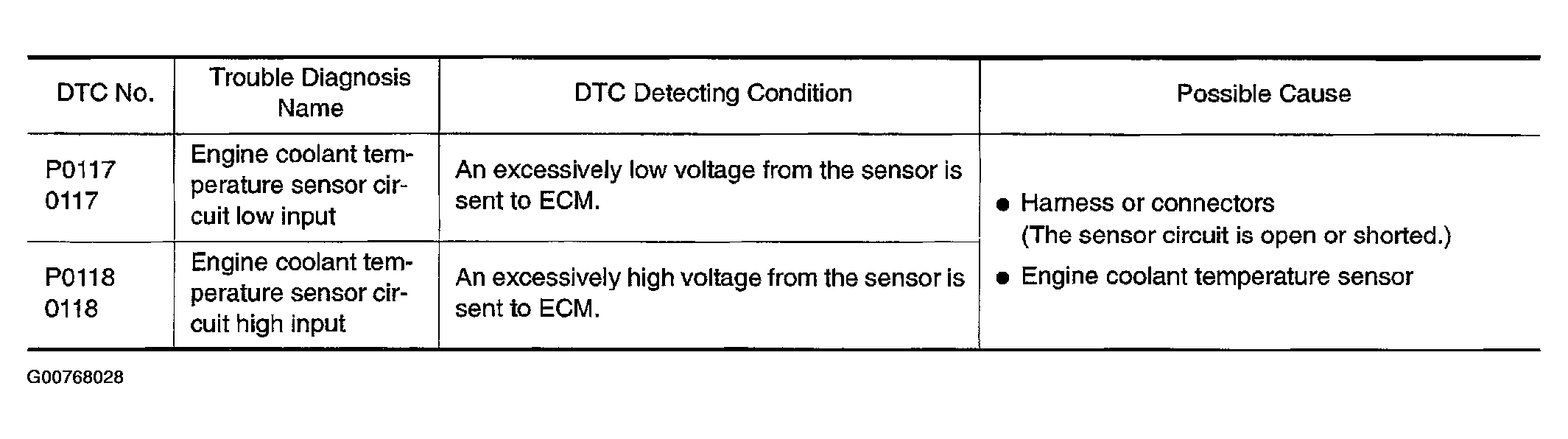

Fig 1: On Board Diagnosis Logic Chart (P0117, P0118)
G00768028Courtesy of NISSAN MOTOR CO., U.S.A.
