On Board Diagnosis Logic

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

This self-diagnosis has the one trip detection logic.

The MIL will not light up for this diagnosis.

NOTE: If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to DTC P0605 ECM PFP:23710 .

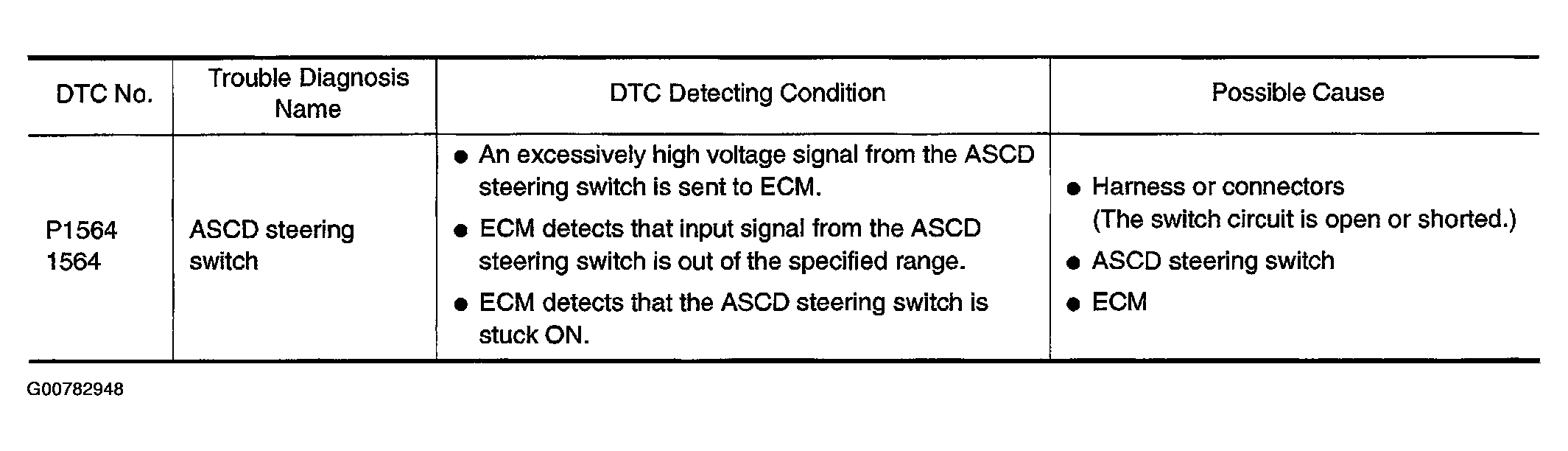

Fig 1: DTC Condition Detection Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
