Adjustment of CVT Position

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place selector lever in "P" position.
  2. Loosen control cable nut and place manual lever in "P" position.
    CAUTION: Turn wheels more than 1/4 rotations and apply the park lock.
  3. After pushing the control cable with the specified force toward the rear, move your hands off the control cable.
    1. Specified force: 9.8 N (1.0 kg, 2.2 lb)
  4. Connect control cable on manual lever.
    CAUTION: No application of a force to the manual lever.
  5. Tighten control cable nut.

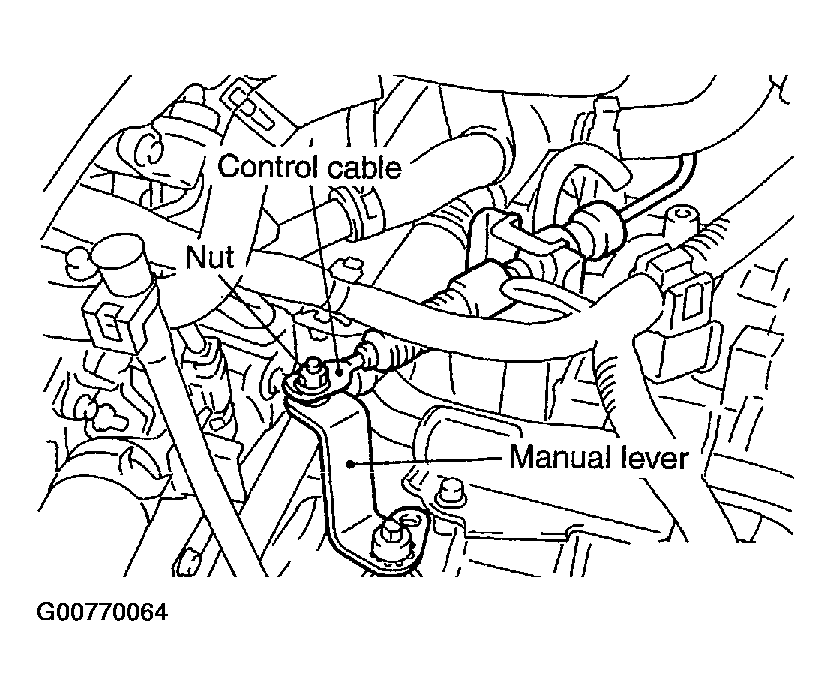

    Fig 1: Connecting Control Cable On Manual Lever
    G00770064Courtesy of NISSAN MOTOR CO., U.S.A.

    :11 - 14 N.m (1.2 - 1.4 kg-m, 9 - 10 ft-lb)
