AWD warning lamp indication

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

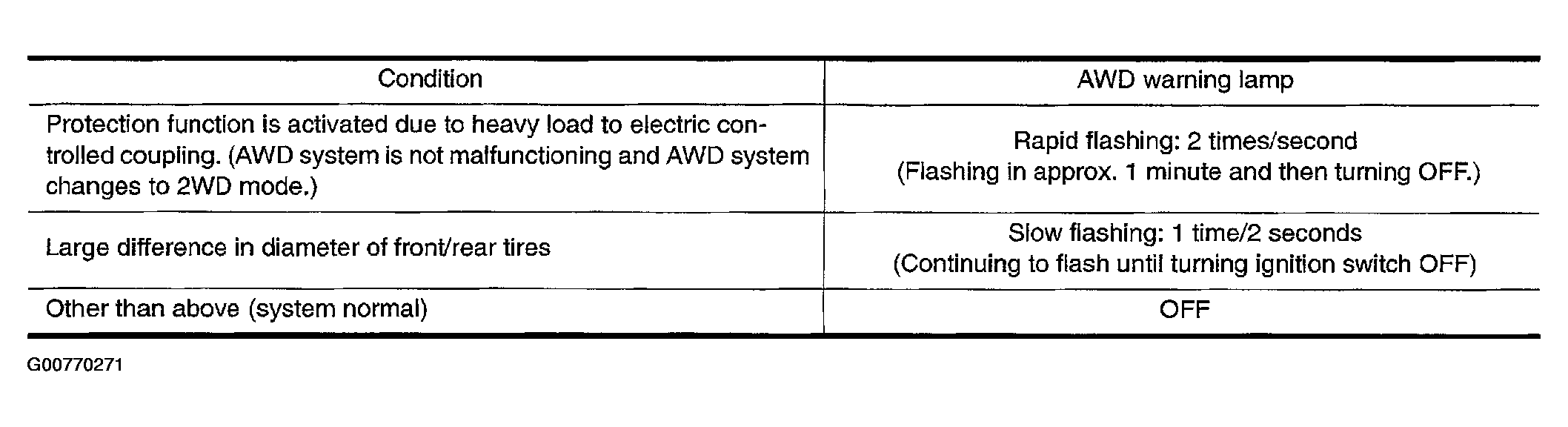

Fig 1: AWD Warning Lamp Indication Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: AWD Warning Lamp Indication Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
