Transfer Oil: Replacement: Draining

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When draining oil, protect exhaust tube flange with cover.

Run the vehicle to warm up the transfer body sufficiently.
Stop the engine, and remove the drain plug to drain the transfer oil.
Apply sealant to drain plug. Install drain plug on transfer and tighten to the specified torque. Refer to "COMPONENTS ".
- Use Genuine Silicone RTV or equivalent . Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

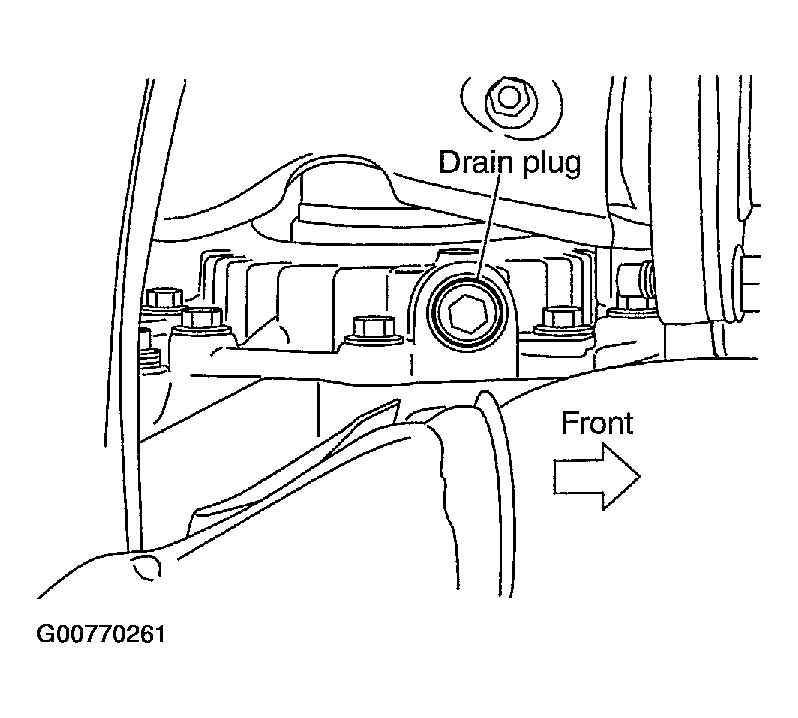

  Fig 1: Identifying Drain Plug
  Courtesy of NISSAN MOTOR CO., U.S.A.
