Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
  2. Touch either "MAIN SIGNALS", "CAN DIAG SUPPORT MNTR" or "SELECTION FROM MENU" on the "DATA MONITOR" screen.
    DATA MONITOR CHART

    MAIN SIGNALS Monitors main signals.
    CAN DIAG SUPPORT MNTR Monitors CAN diagnosis support.
    SELECTION FROM MENU Selects and monitors individual signal.
  3. When "SELECTION FROM MENU" is selected, touch individual items to be monitored. When "MAIN SIGNALS" is selected, main items will be monitored.
  4. Touch "START".
  5. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".

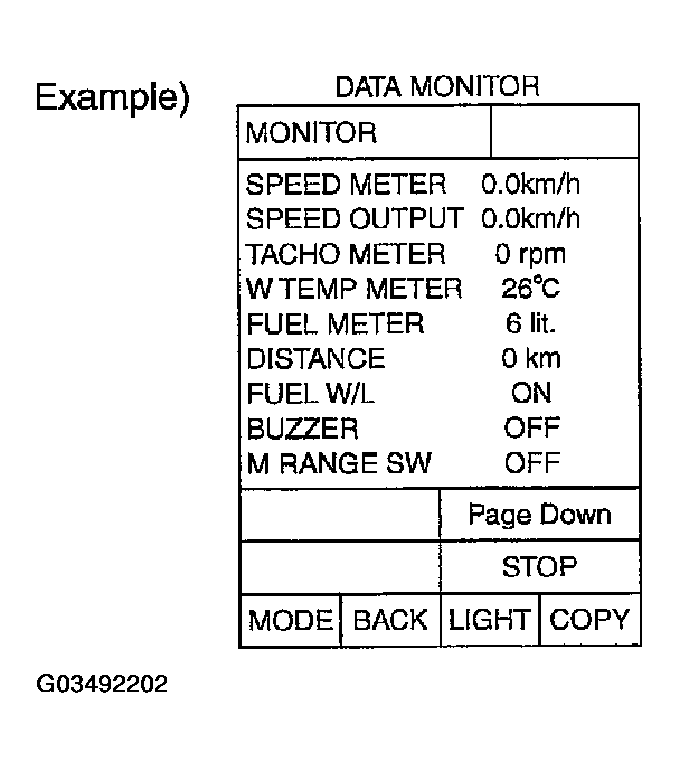

    Fig 1: Displaying DATA MONITOR
    G03492202Courtesy of NISSAN MOTOR CO., U.S.A.
