Data Monitor Mode

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For DATA MONITOR mode descriptions, see Fig 1-Fig 6 .

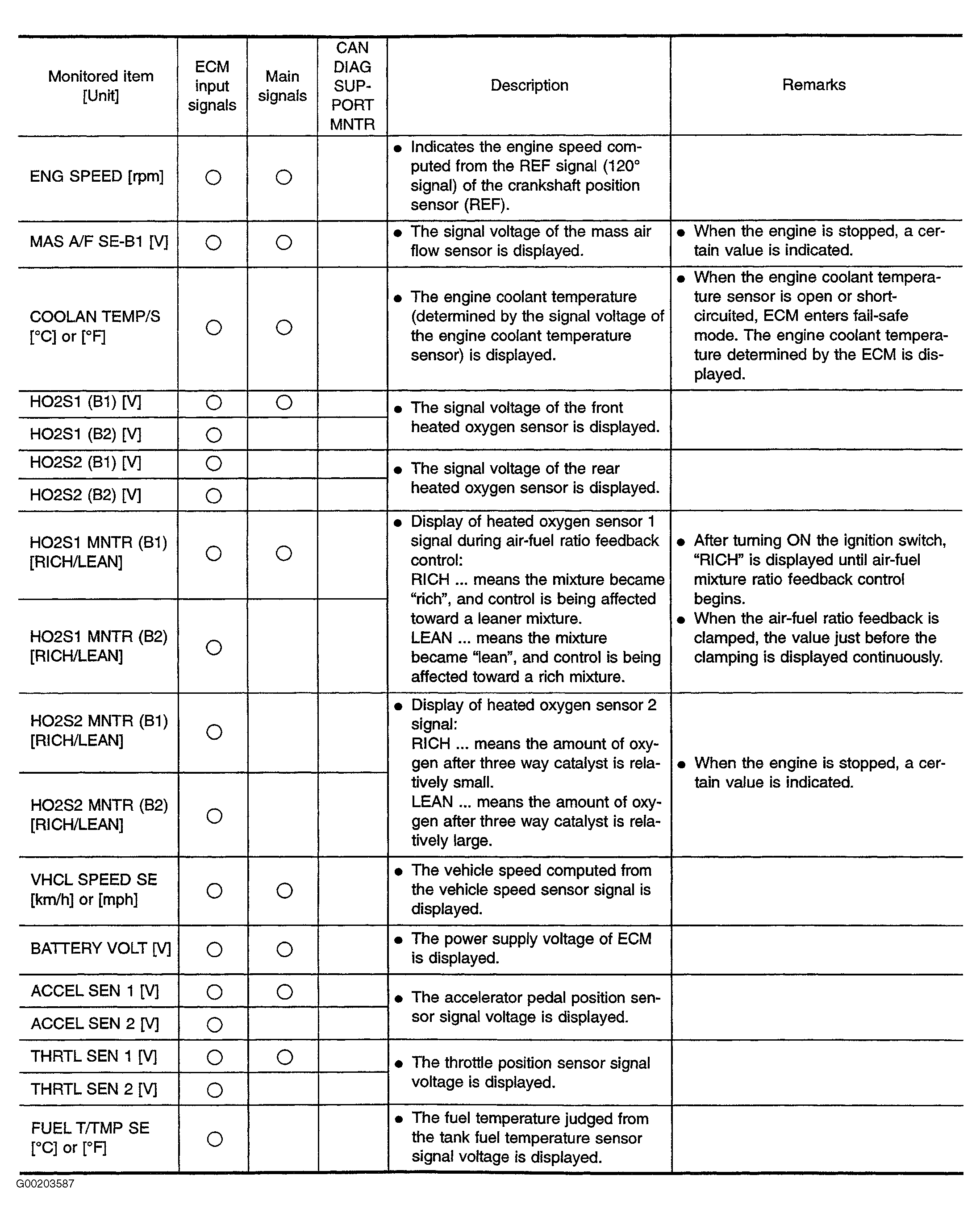

Fig 1: Data Monitor Mode Descriptions (1 Of 6)

G00203587

Courtesy of NISSAN MOTOR CO., U.S.A.

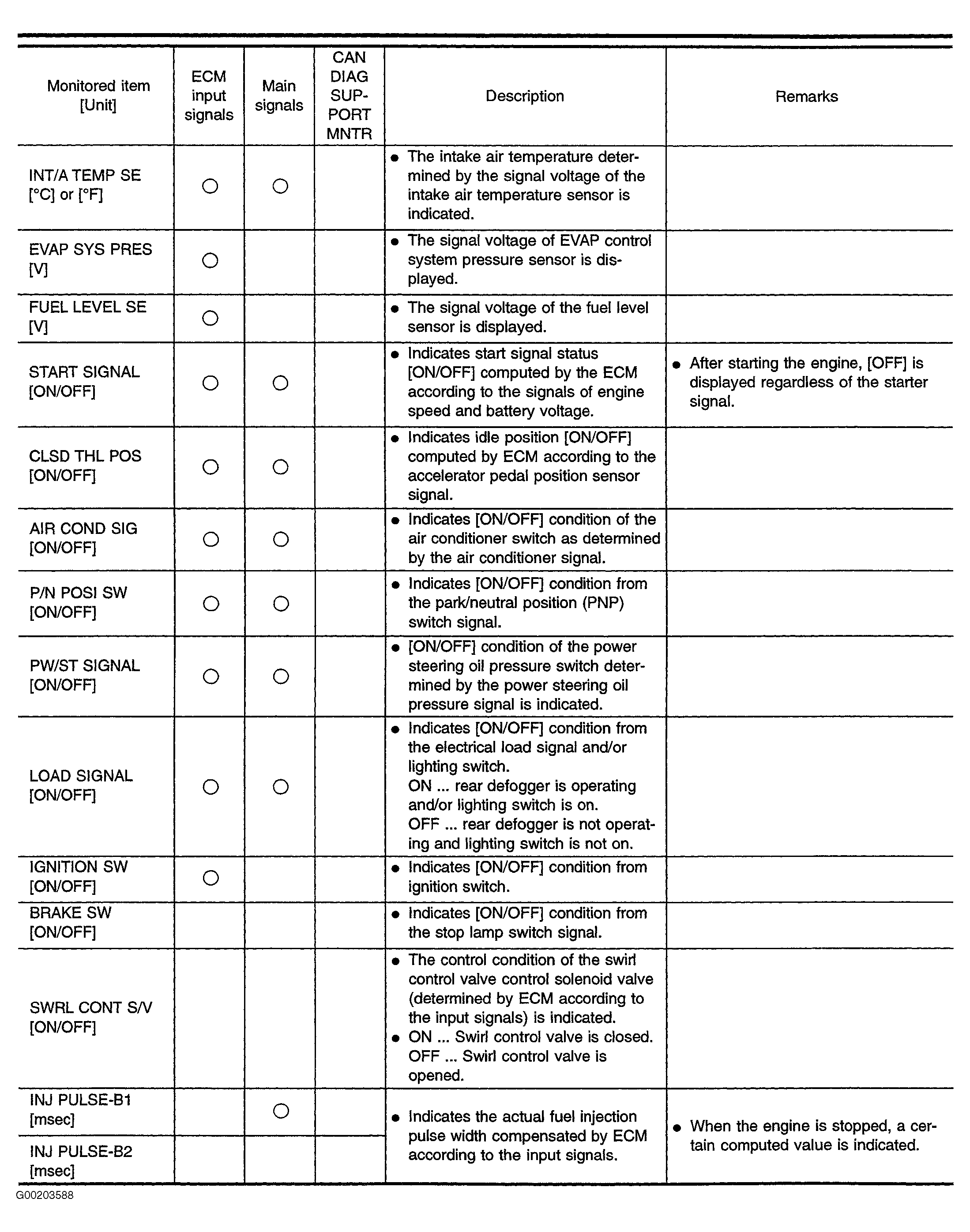

Fig 2: Data Monitor Mode Descriptions (2 Of 6)

G00203588

Courtesy of NISSAN MOTOR CO., U.S.A.

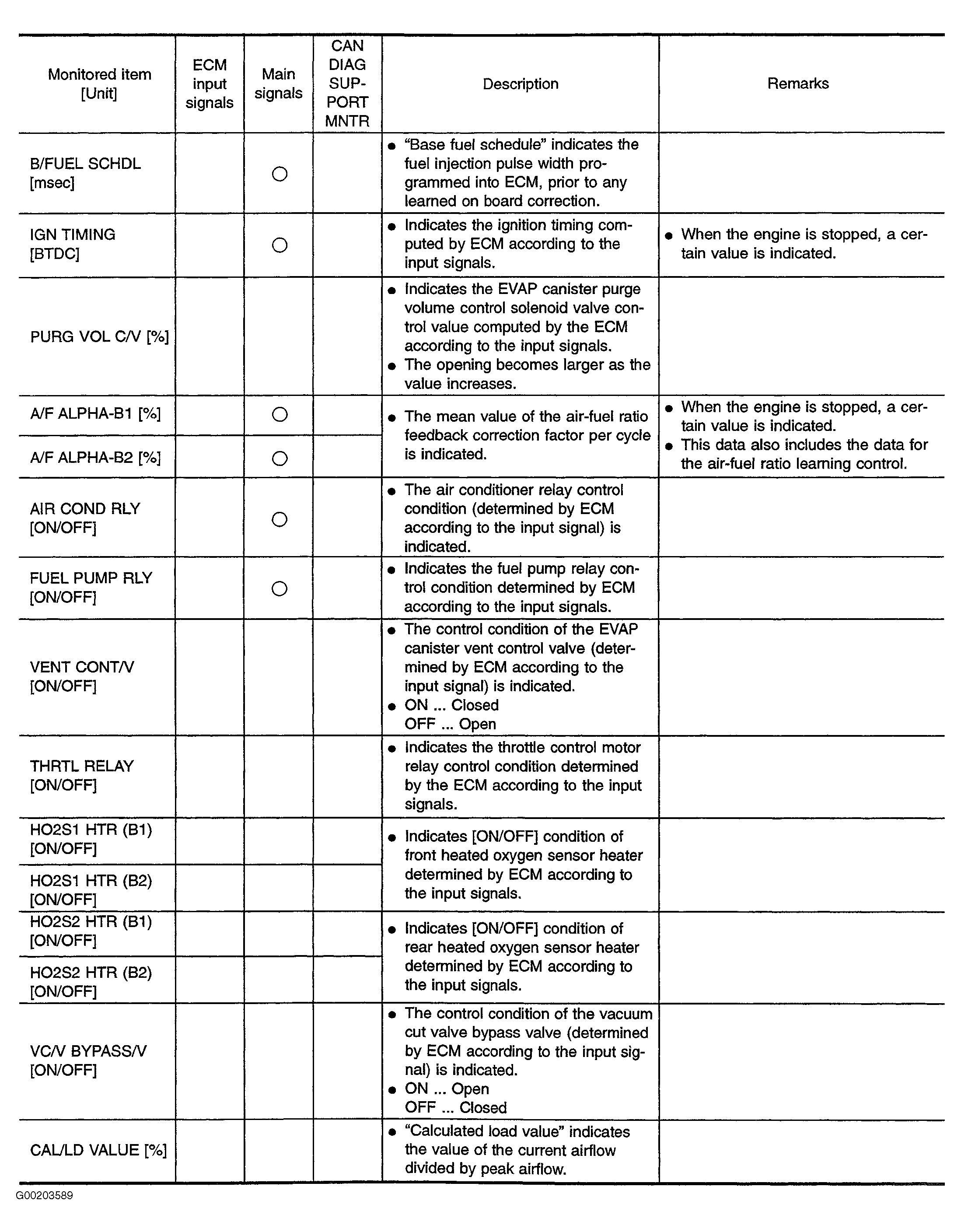

Fig 3: Data Monitor Mode Descriptions (3 Of 6)

G00203589

Courtesy of NISSAN MOTOR CO., U.S.A.

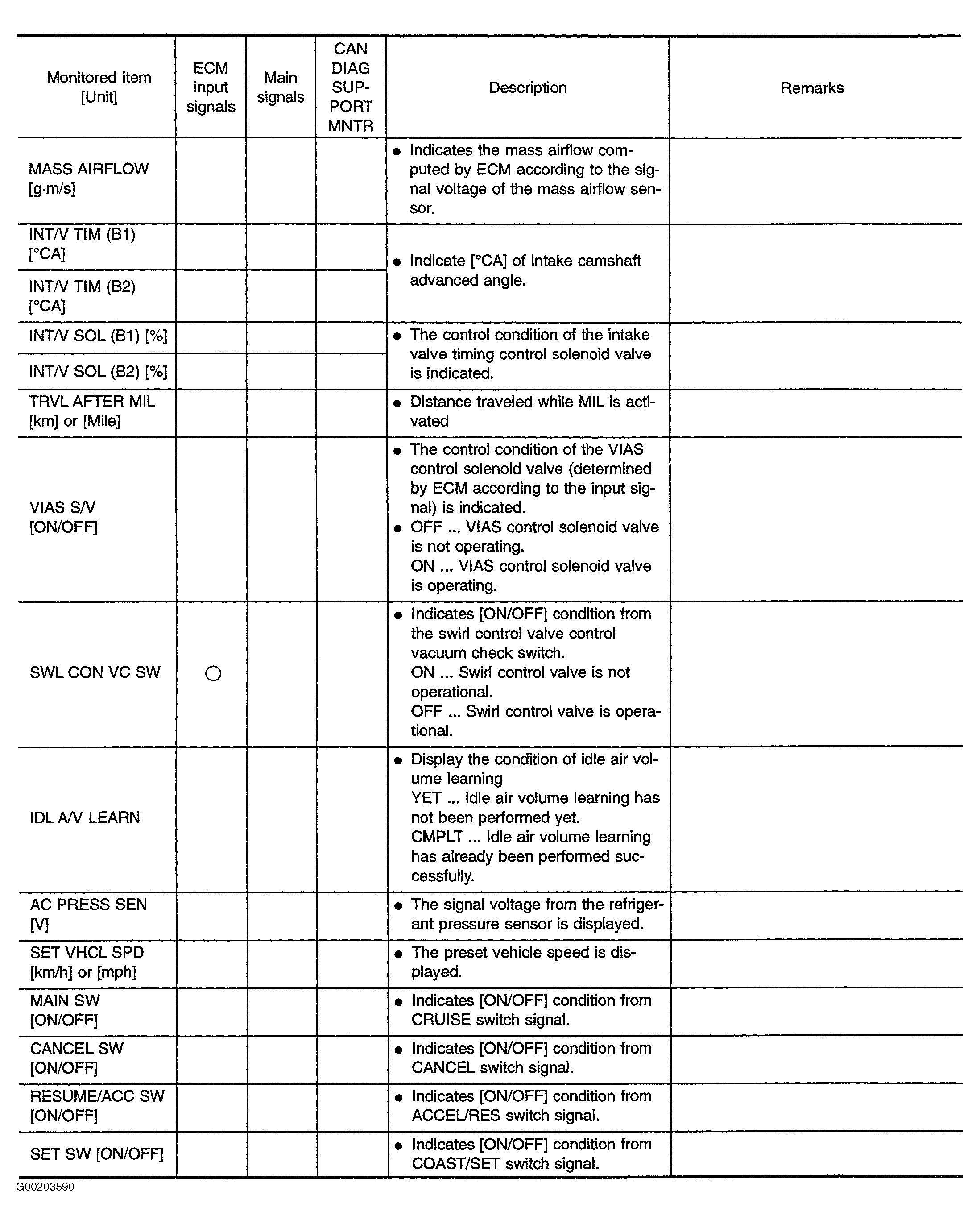

Fig 4: Data Monitor Mode Descriptions (4 Of 6)

G00203590

Courtesy of NISSAN MOTOR CO., U.S.A.

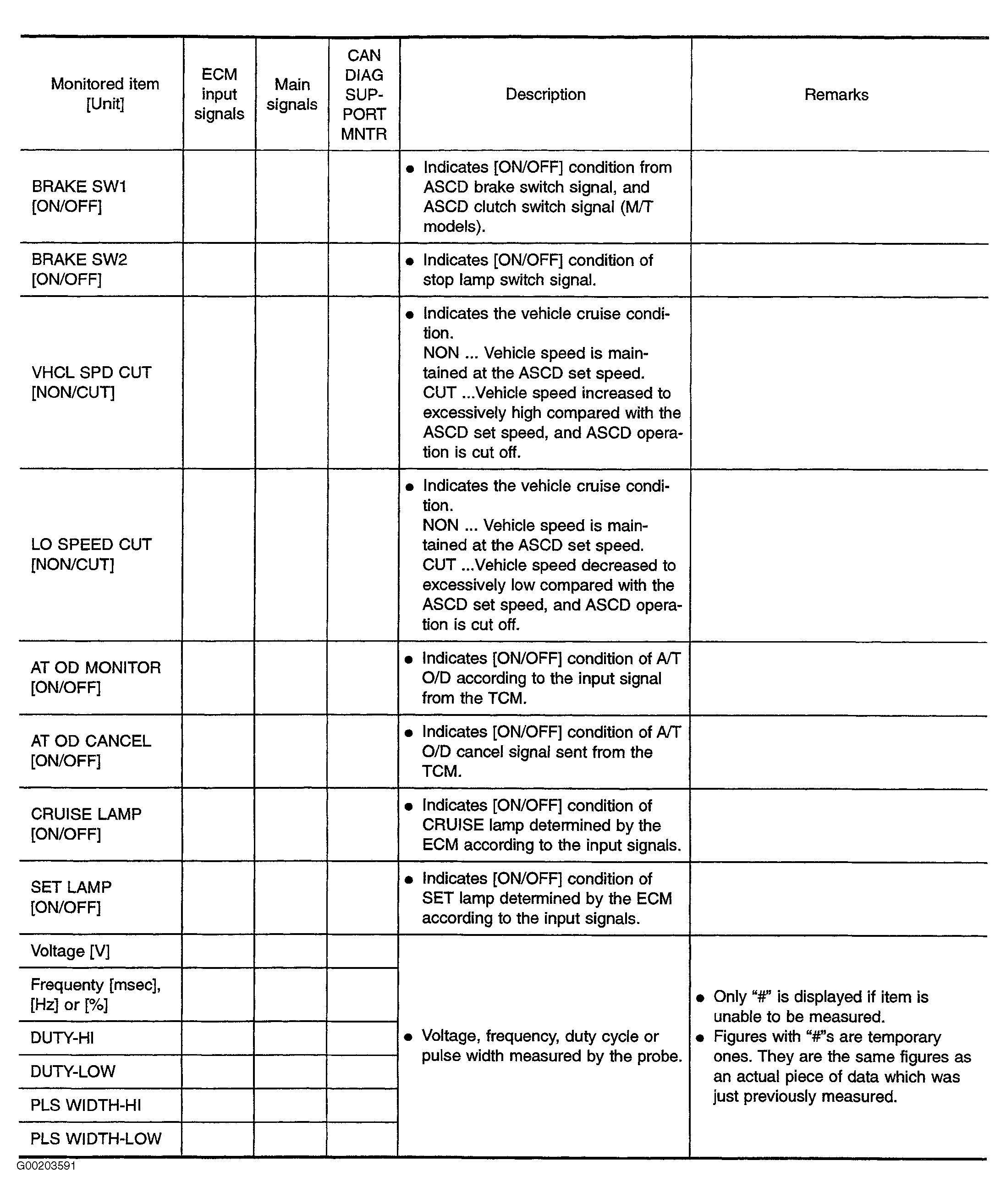

Fig 5: Data Monitor Mode Descriptions (5 Of 6)

G00203591

Courtesy of NISSAN MOTOR CO., U.S.A.

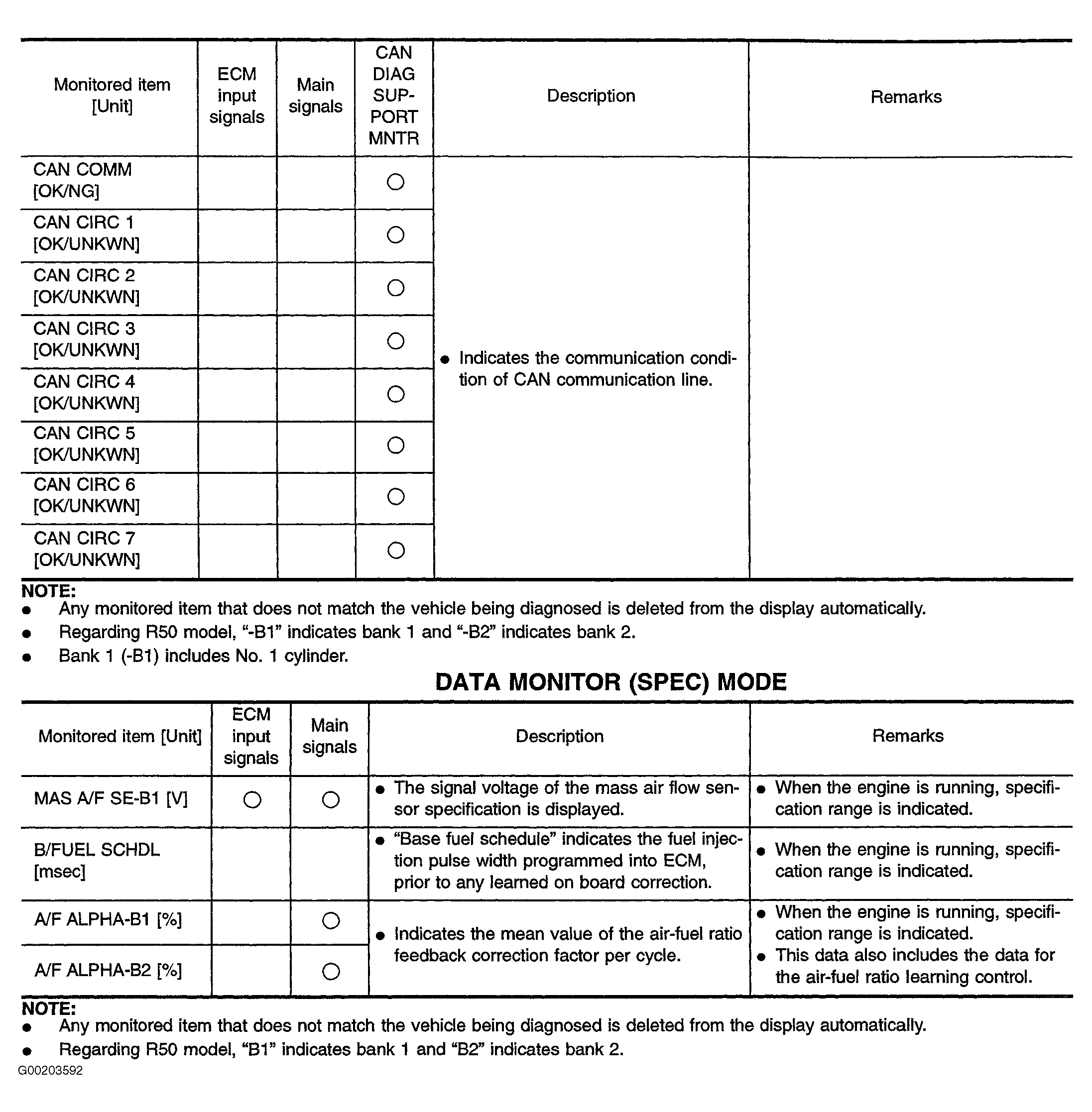

Fig 6: Data Monitor Mode Descriptions (6 Of 6)

G00203592

Courtesy of NISSAN MOTOR CO., U.S.A.
