WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

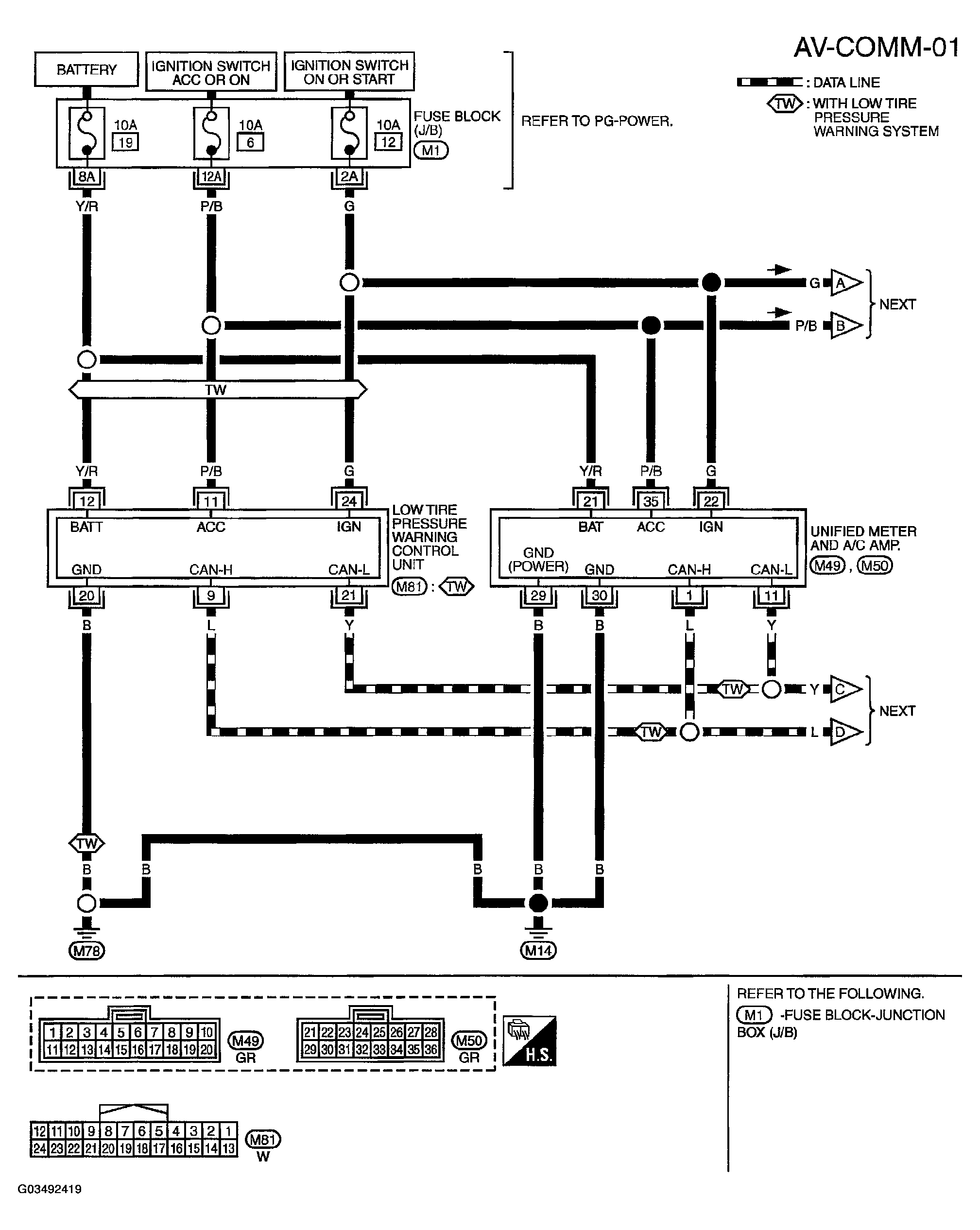

Fig 1: Integrated Display System Wiring Diagram - AV-COMM-01
Courtesy of NISSAN MOTOR CO., U.S.A.

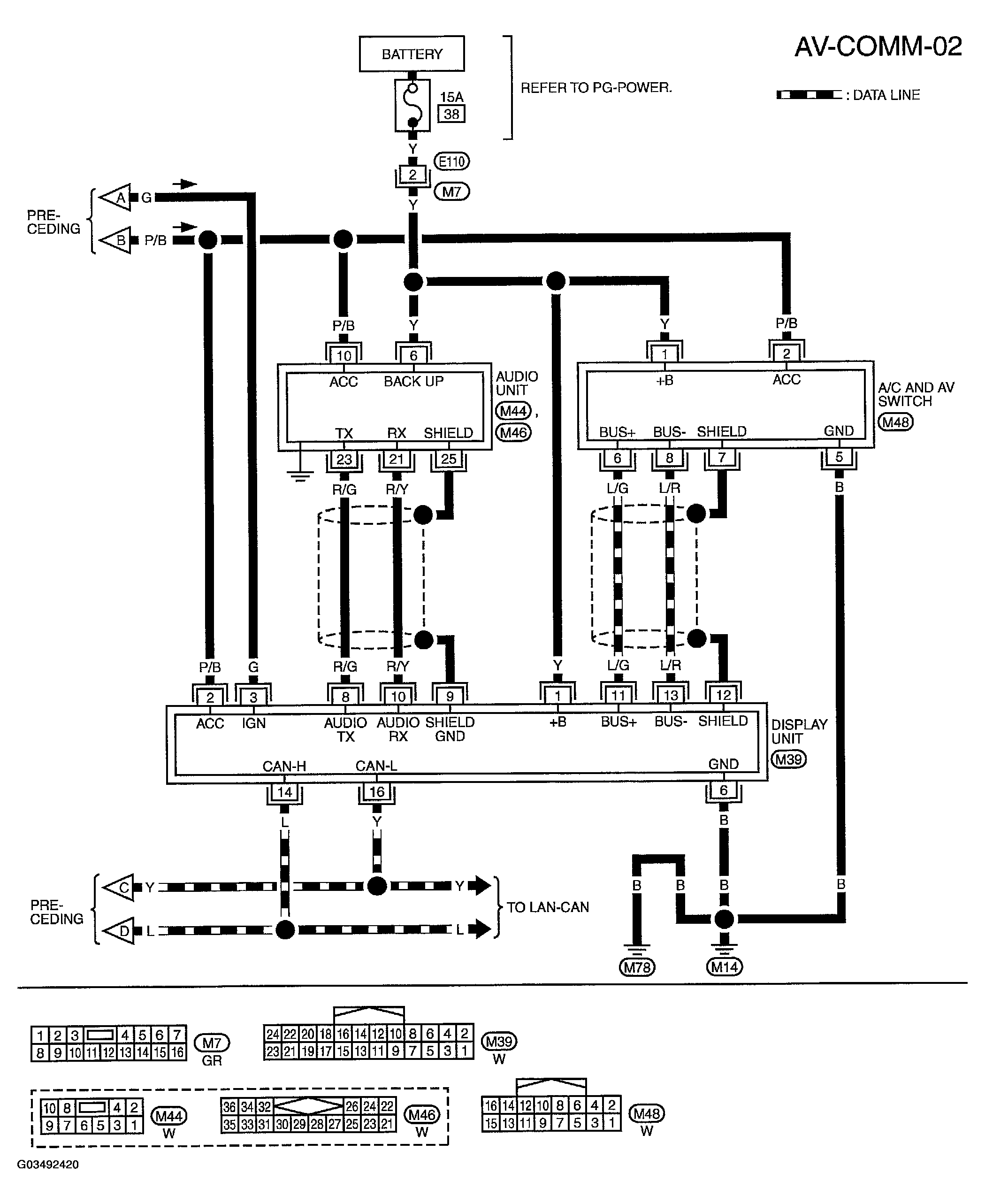

Fig 2: Integrated Display System Wiring Diagram - AV-COMM-02
