Engine Control Module (ECM)

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For inspection, go to Fig 1 and Fig 2 .

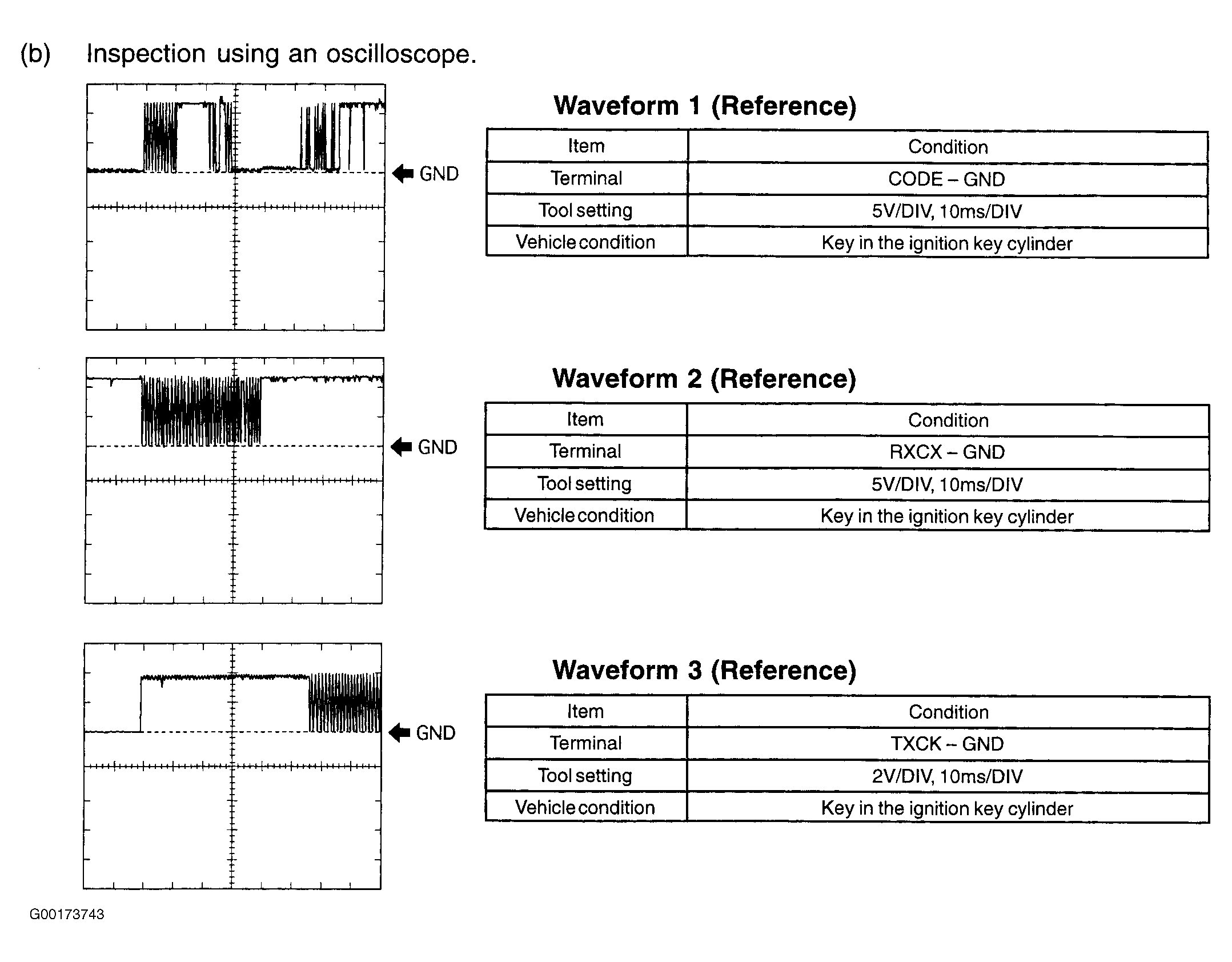

Fig 1: Inspecting Engine Control Module (1 Of 2)

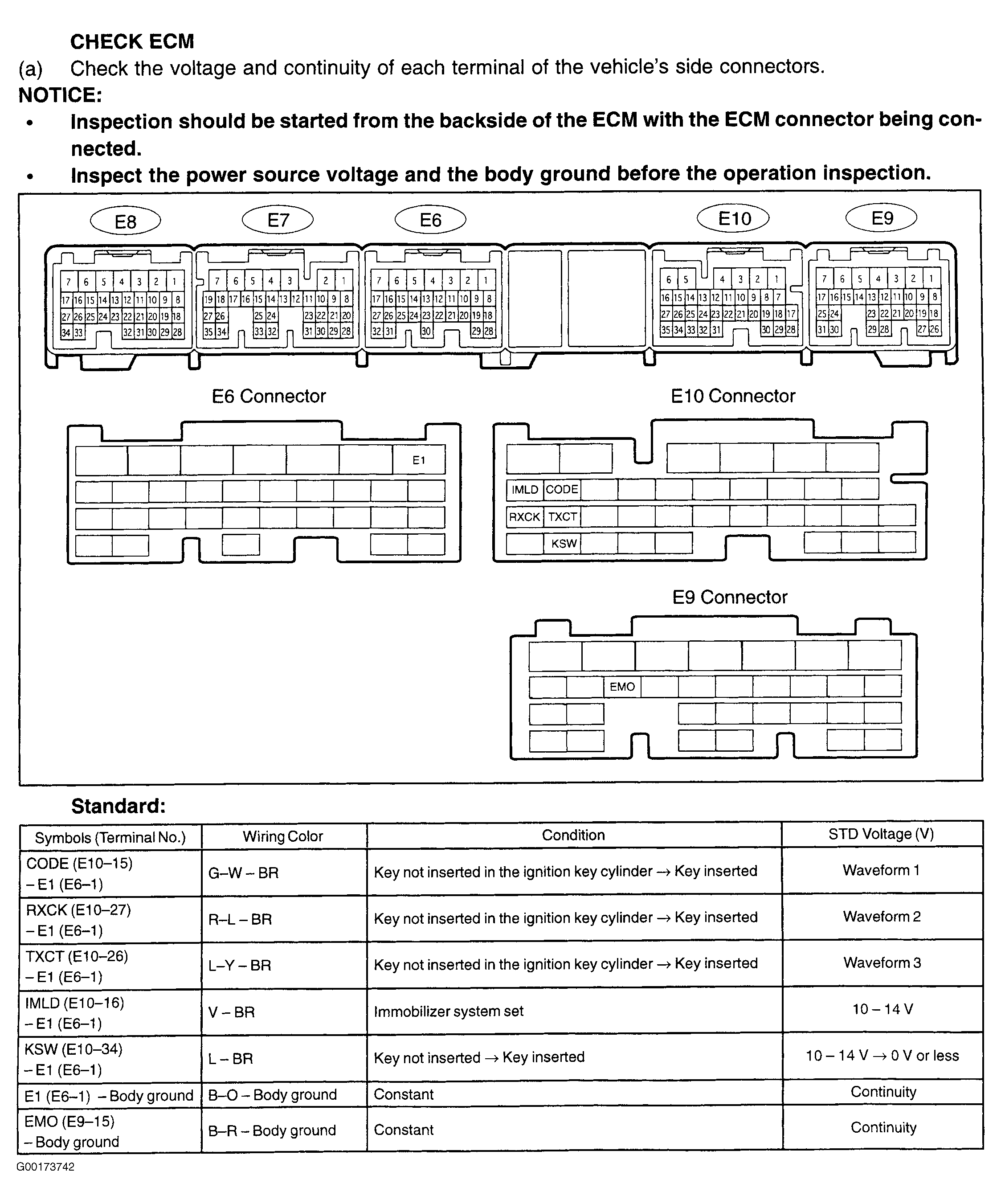

Fig 2: Inspecting Engine Control Module (2 Of 2)
