Removal and Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Altima, 2003 Nissan Altima, and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

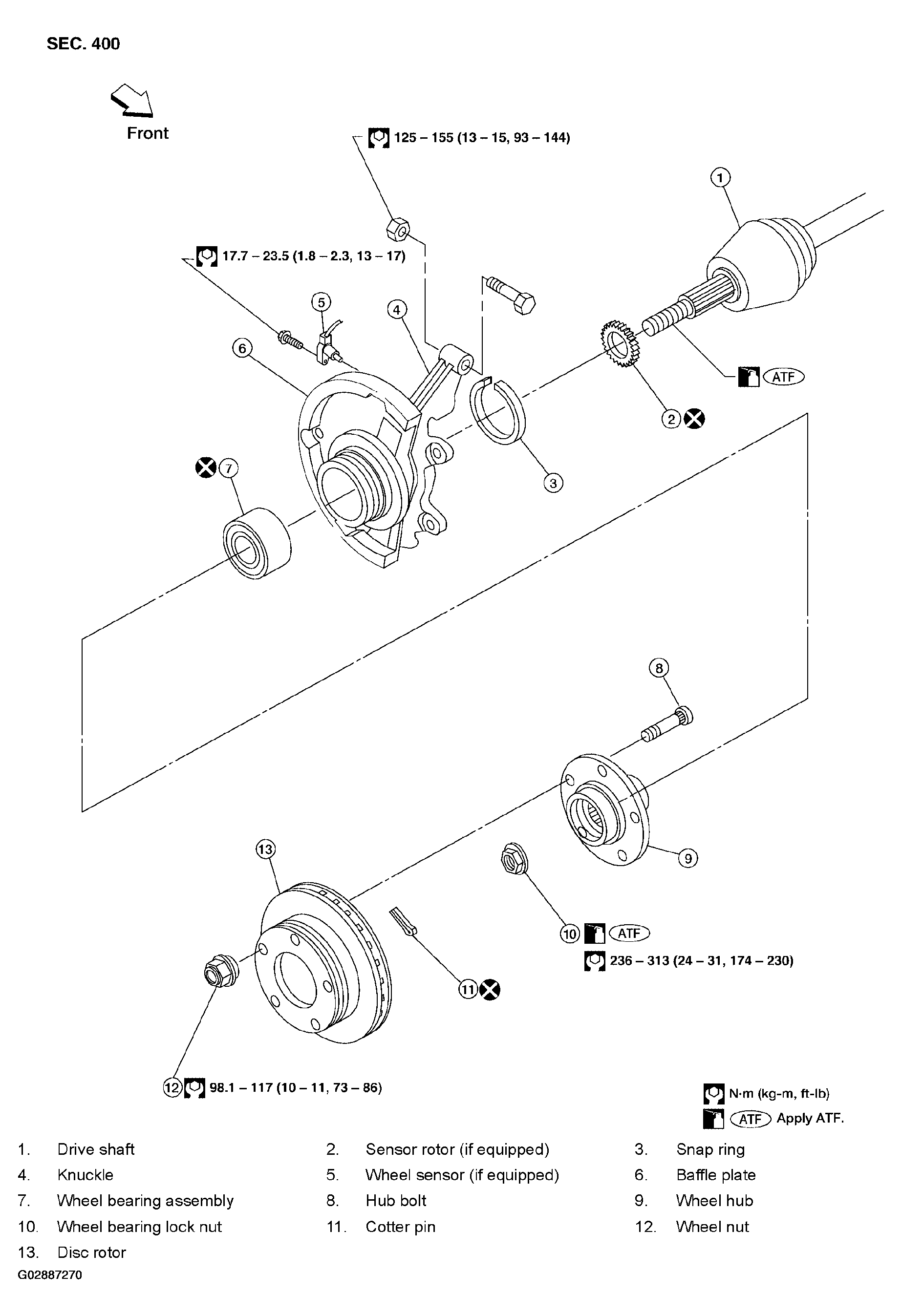

Fig 1: Identifying Wheel Hub And Knuckle Components

Courtesy of NISSAN MOTOR CO., U.S.A.
