Checking Drive Belts: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Be sure to perform when the engine is not running.

Inspect belt for cracks, fraying wear or oil adhesion. If necessary, replace with a new one.
Inspect drive belt deflections by applying 98N (10kg, 22lb) on the belt midway between pulleys as shown.
Measure the belt tension using Tool at the locations shown.
1. Tool number: BT3373-F
NOTE:
- Inspect drive belt deflection or tension when engine is cold.
- Adjust if belt deflections exceed the limit or if belt tension is not within specifications.
Fig 1: Inspecting Drive Belt Deflection Or Tension
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- When checking belt deflection or tension immediately after installation, first adjust it to the specification value.
  Then, after turning the crankshaft two turns or more, readjust to the specified value to avoid variation in deflection between pulleys.

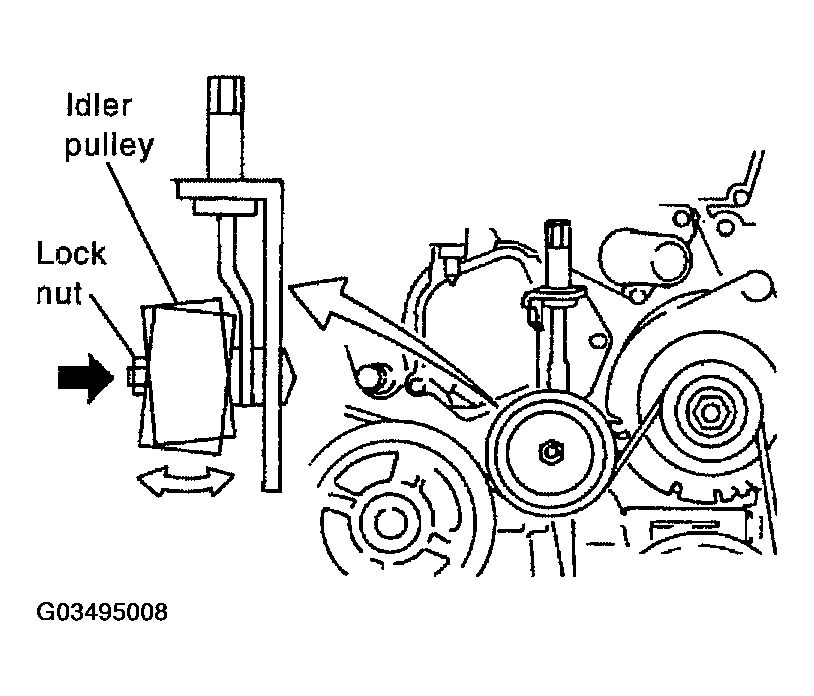

- Tighten idler pulley lock nut by hand and measure deflection or tension without looseness.
Fig 2: Tightening Idler Pulley Lock Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
