ABS Motor

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: ABS Motor Operation Specification

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.

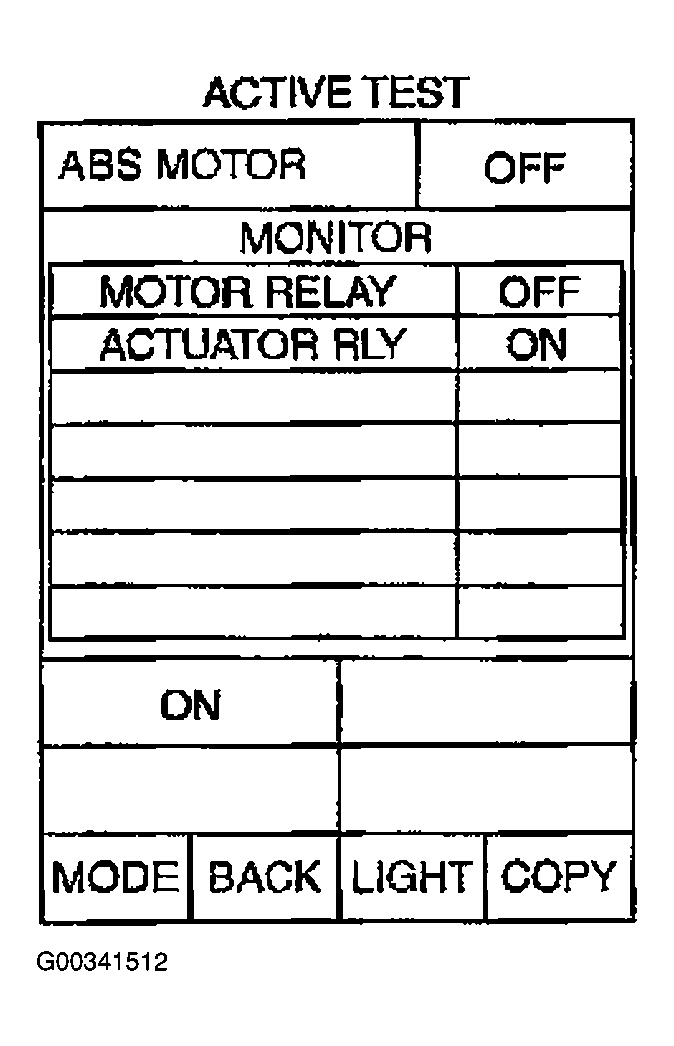

Fig 2: Identifying Scan Tool Display

Courtesy of NISSAN MOTOR CO., U.S.A.
