Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove center console. Refer to CENTER CONSOLE .
Disconnect harness connector.
Remove attaching nuts and remove yaw rate/side/decel G sensor.

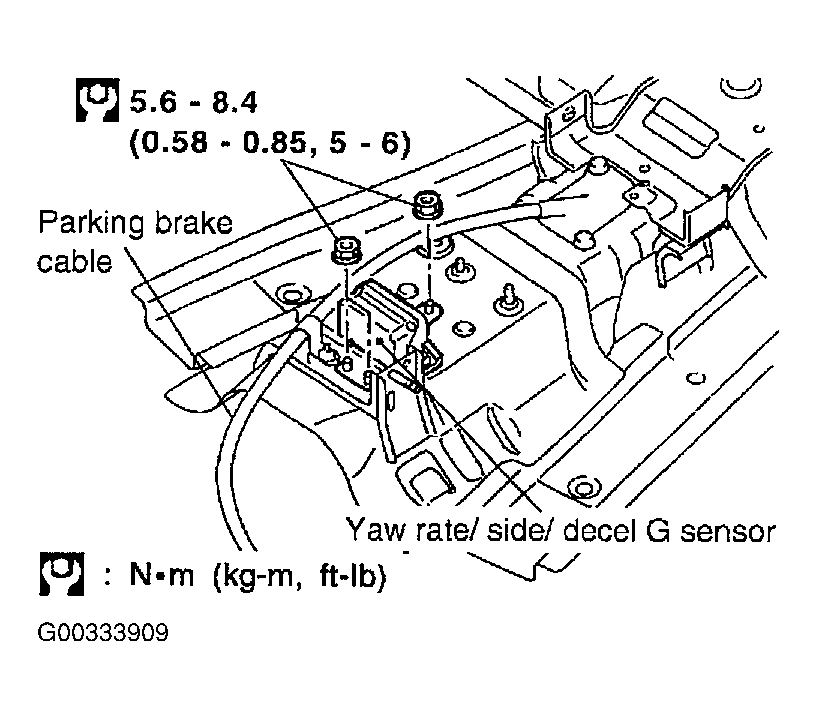

Fig 1: Removing G Sensor (Torque Specifications Included)

G00333909

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Do not drop or strike the yaw rate/side/decel G sensor.
Do not use power tools to remove or install yaw rate/side/decel G sensor.
