Reference Value From Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The display shows the control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short circuited.

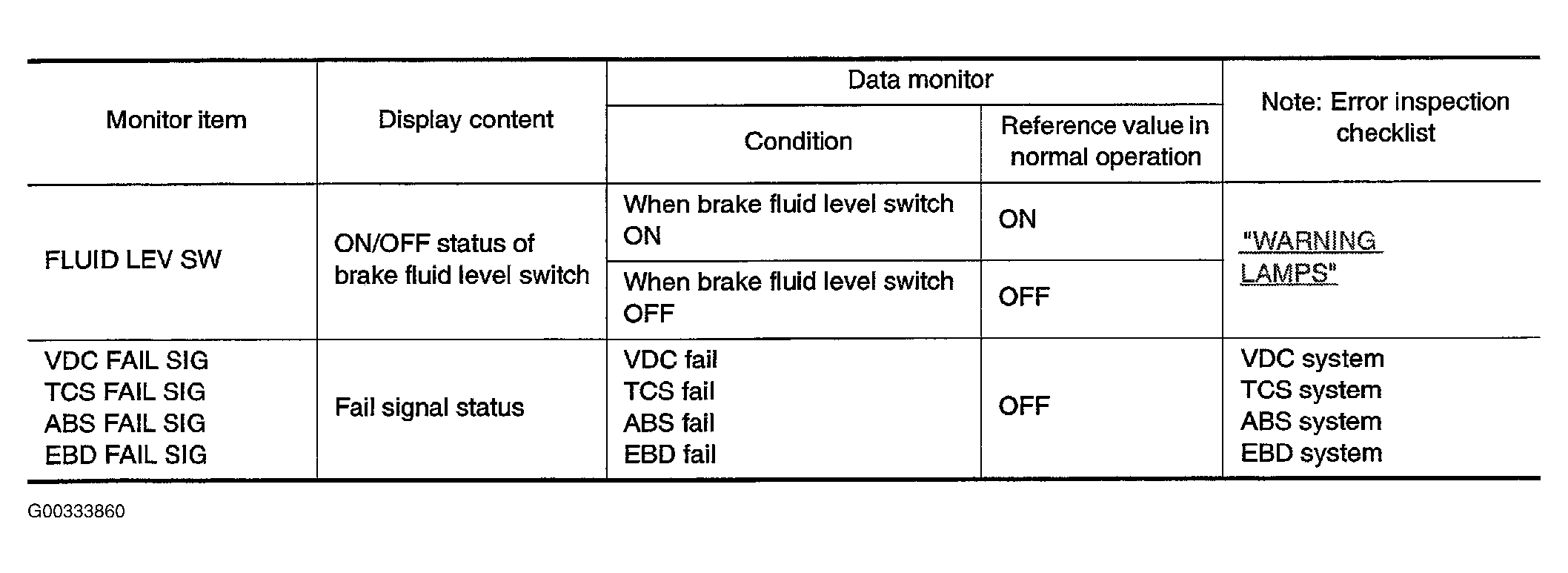

Fig 1: Data Monitor Display Specification (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

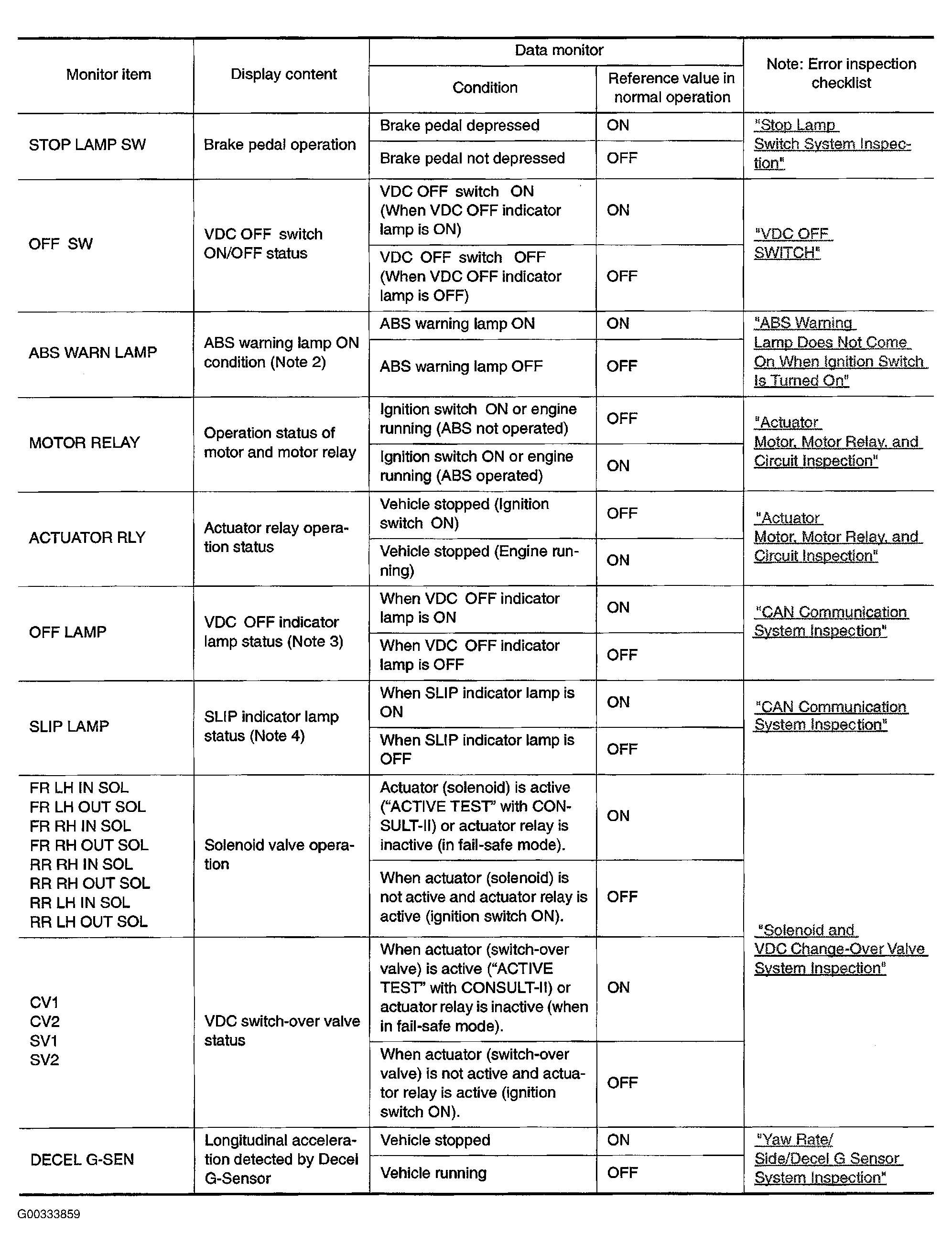

Fig 2: Data Monitor Display Specification (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

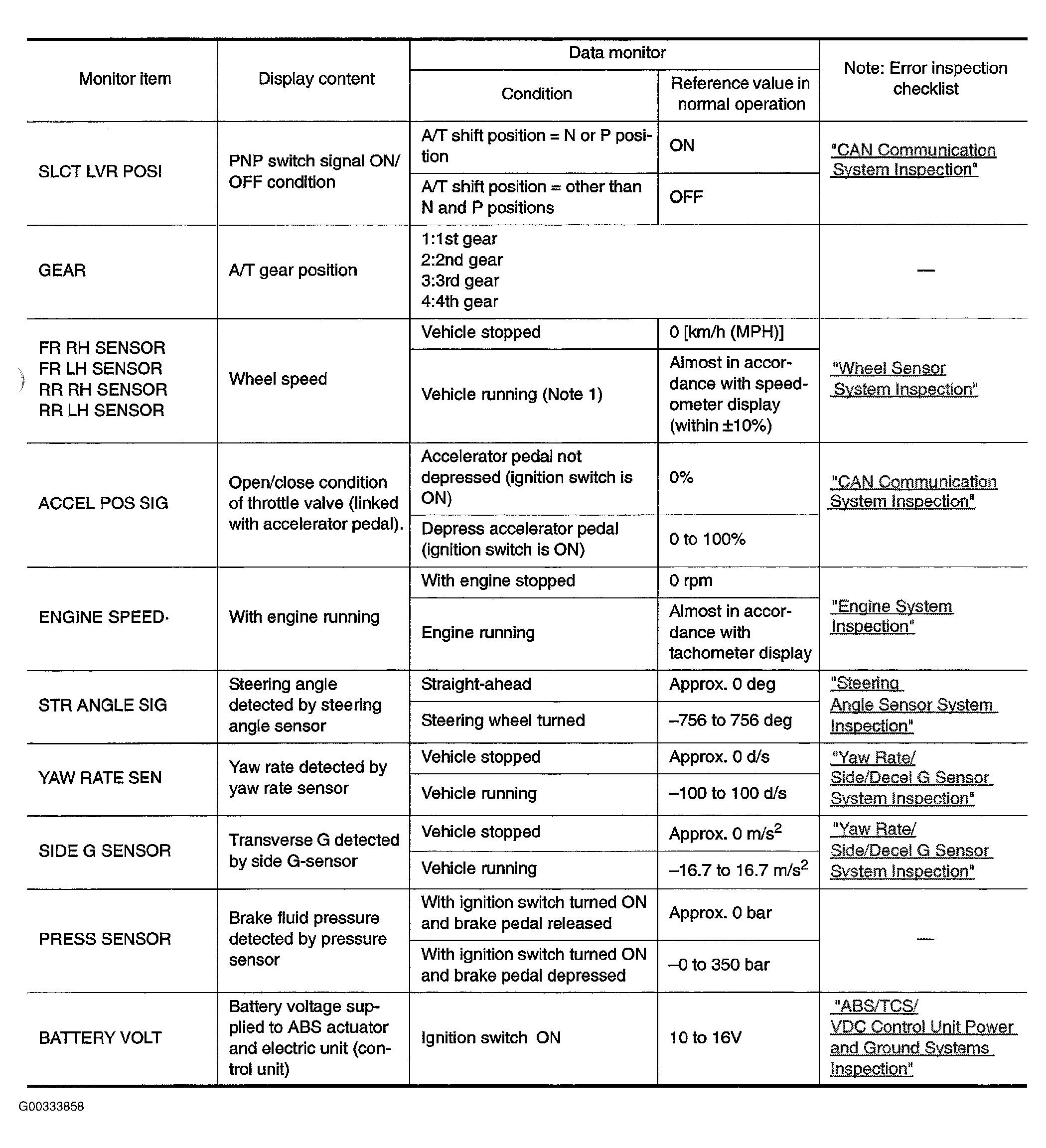

Fig 3: Data Monitor Display Specification (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
