Inspection Of BCM Power Supply & Ground Circuit

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fuse and fusible link inspection. Check if any of the BCM fuses and/or fusible links are blown. See FUSE & FUSIBLE LINK INSPECTION  table.
  2. Power supply circuit inspection. Disconnect BCM connector. To measure voltage, connect connector terminals to positive probe and body ground to negative probe. See Fig 1 . If voltage is OK, go to next step. If voltage is not OK, replace BCM power supply circuit harness.
  3. Ground circuit inspection. Check continuity between BCM connector and body ground. See Fig 2 . If continuity is OK, circuit is normal, testing is complete. If continuity is not OK, replace BCM ground circuit harness.
FUSE & FUSIBLE LINK INSPECTION

Terminal No. Signal Name Fuse & Fusible Link No.
7 Battery (1) "F"
35 Ignition "ON" Or "Start" (2) 12
36 Ignition "ACC" Or "ON" (2) 6
(1) See Fig 3 .
(2) See Fig 4 .

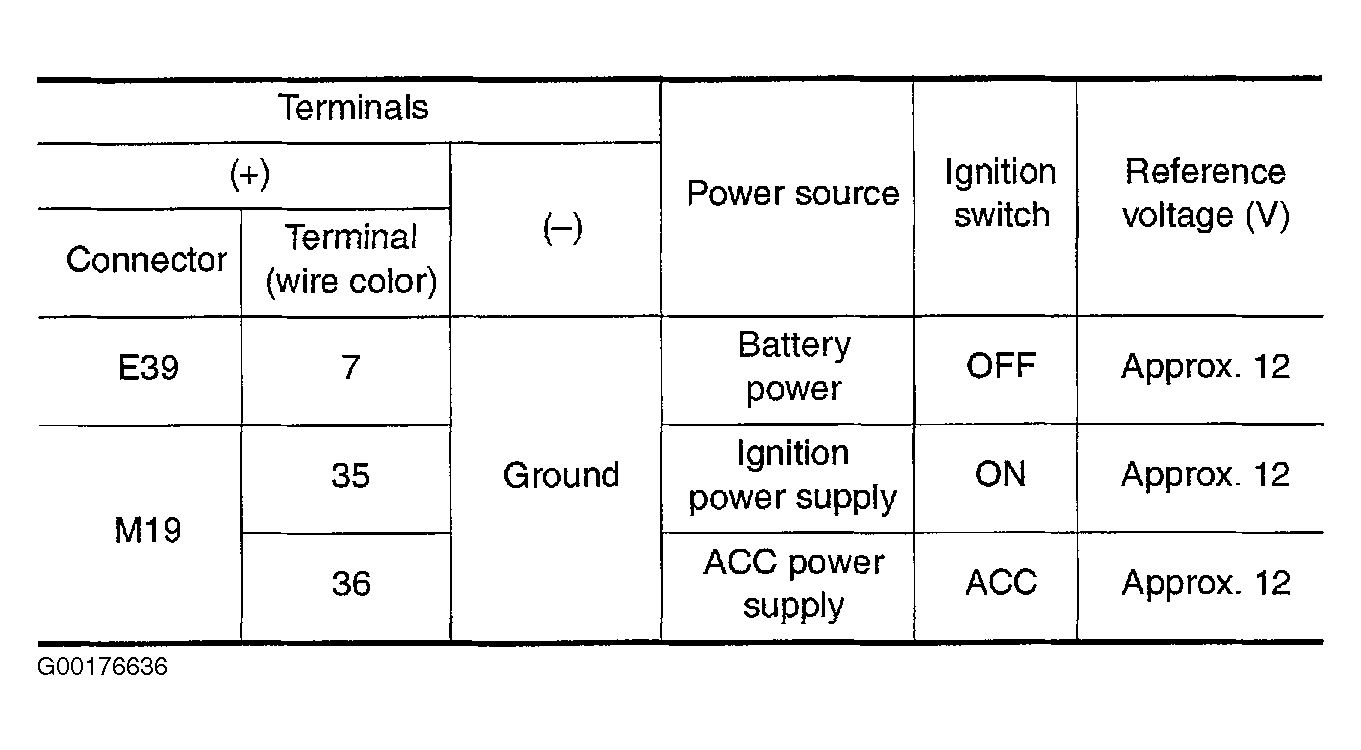

Fig 1: Measuring BCM Voltage
G00176636Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Measuring Continuity Between BCM Connector & Body Ground
G00176637Courtesy of NISSAN MOTOR CO., U.S.A.

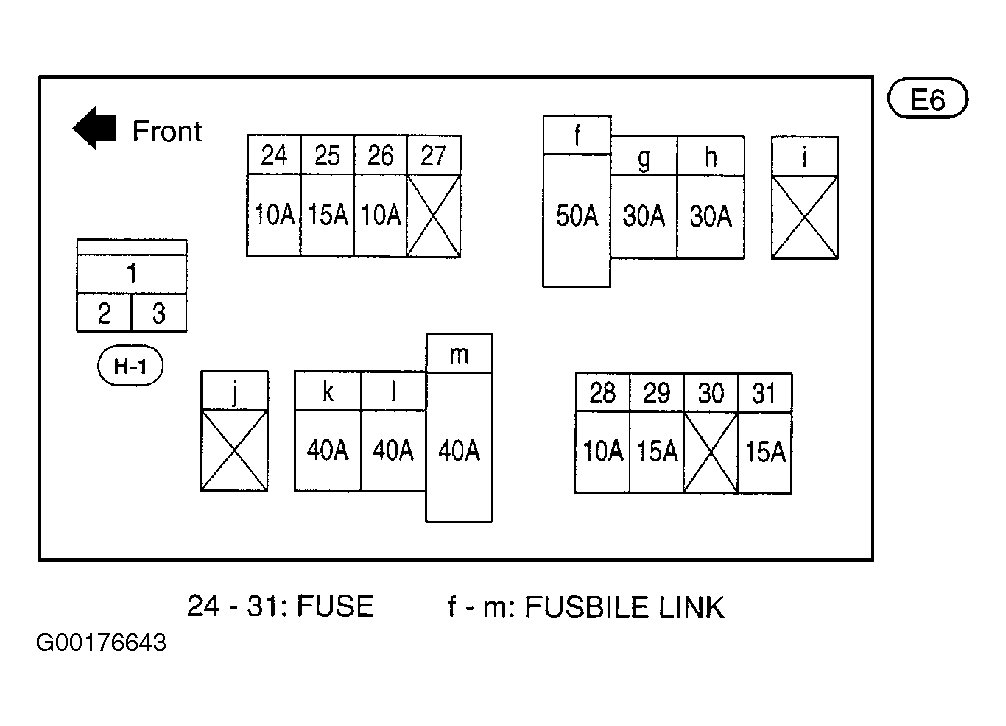

Fig 3: Identifying Fuse & Fusible Link Box
G00176643Courtesy of NISSAN MOTOR CO., U.S.A.

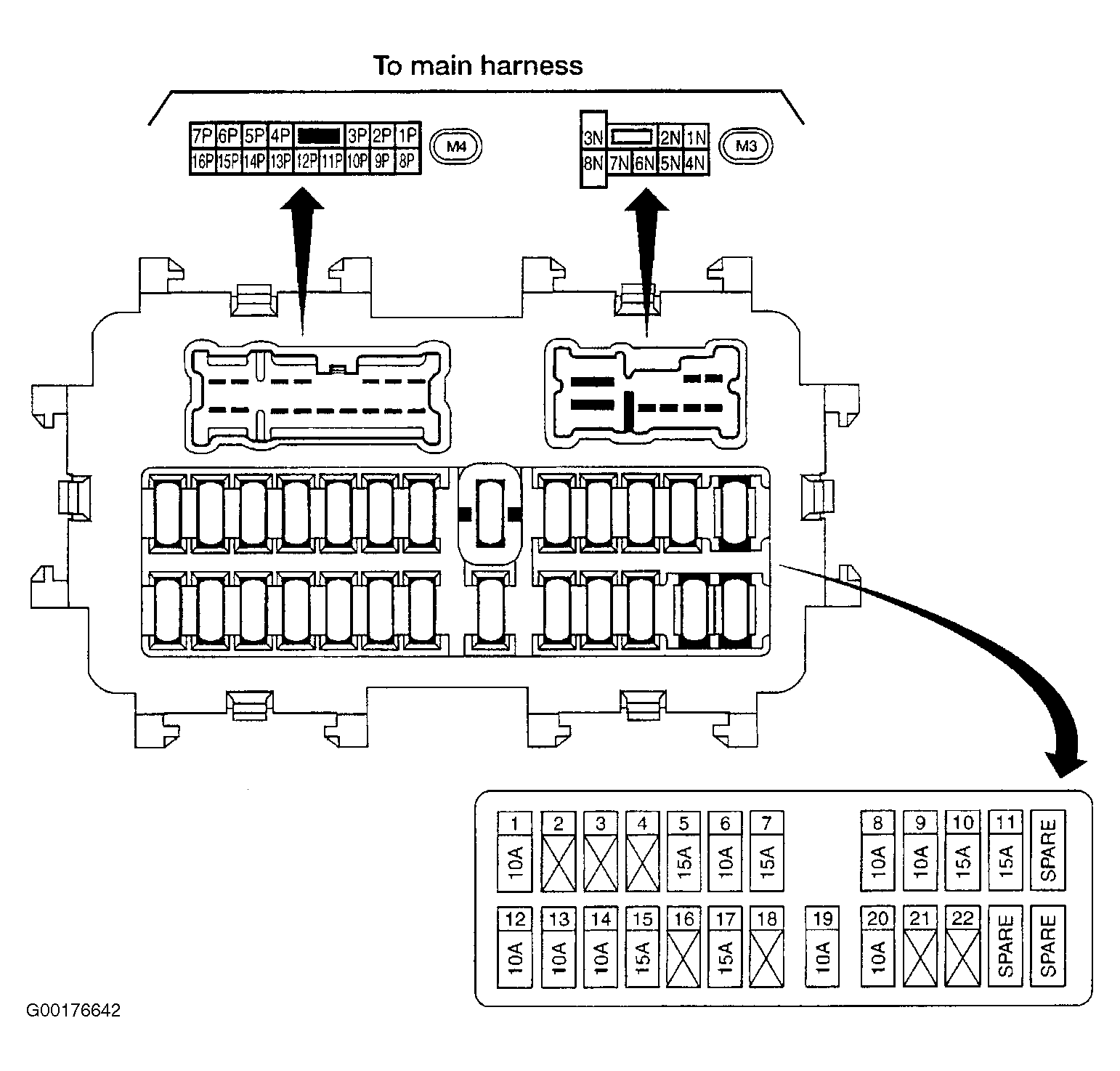

Fig 4: Identifying Fuse Junction Block
G00176642Courtesy of NISSAN MOTOR CO., U.S.A.
