Removal and Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

After any adjustment, check sunroof operation and glass lid alignment.
Handle glass lid with care so not to cause damage.
For easier installation, mark each point before removal.

CAUTION:

Always work with a helper.
Before removal, fully close the glass lid assembly. Then, after removal, do not move the motor assembly.

After installing the sunroof and glass lid, check gap adjustment to ensure there is no malfunction.

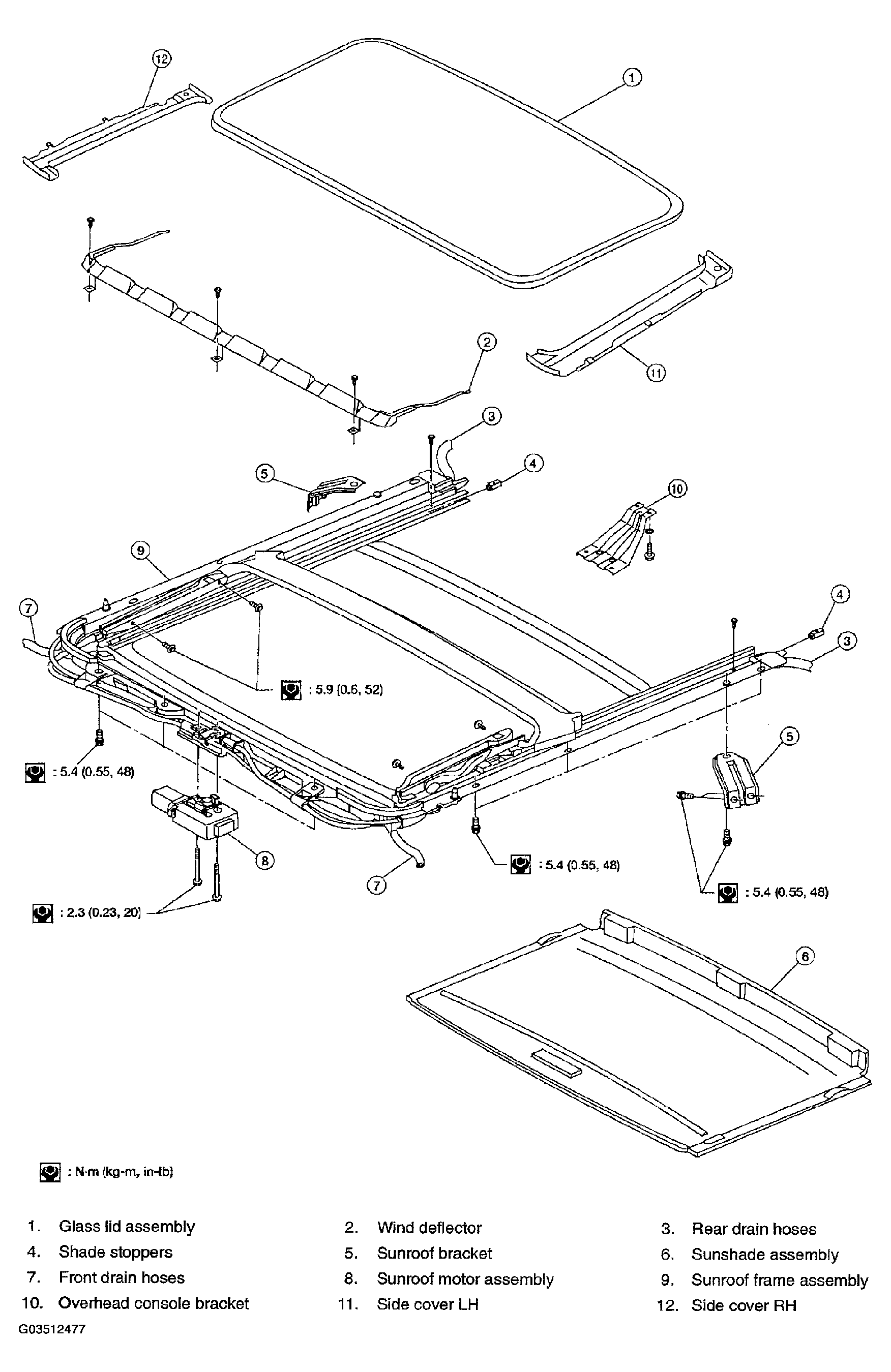

Fig 1: Sunroof And Glass - With Torque Specifications

G03512477

Courtesy of NISSAN MOTOR CO., U.S.A.
