TCM Circuit Check (With TCS & A/T)

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS .

For TCM circuit check (with TCS and A/T), see Fig 1 and Fig 2 .

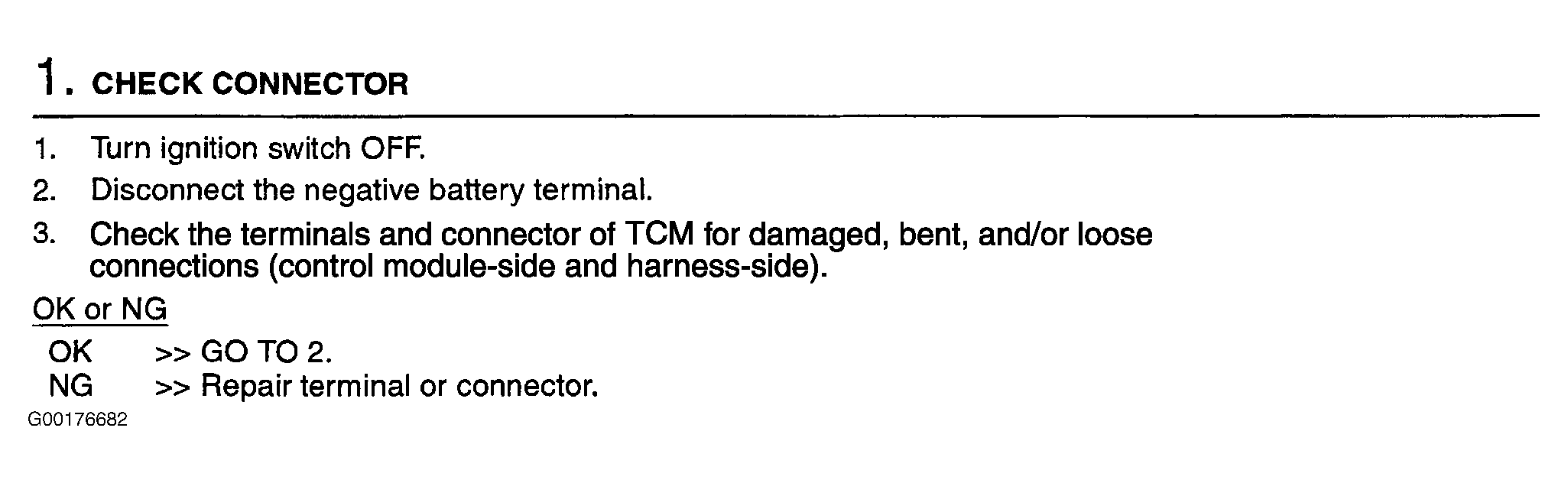

Fig 1: Identifying TCM Circuit Check, Step 1 (With TCS & A/T)

Courtesy of NISSAN MOTOR CO., U.S.A.

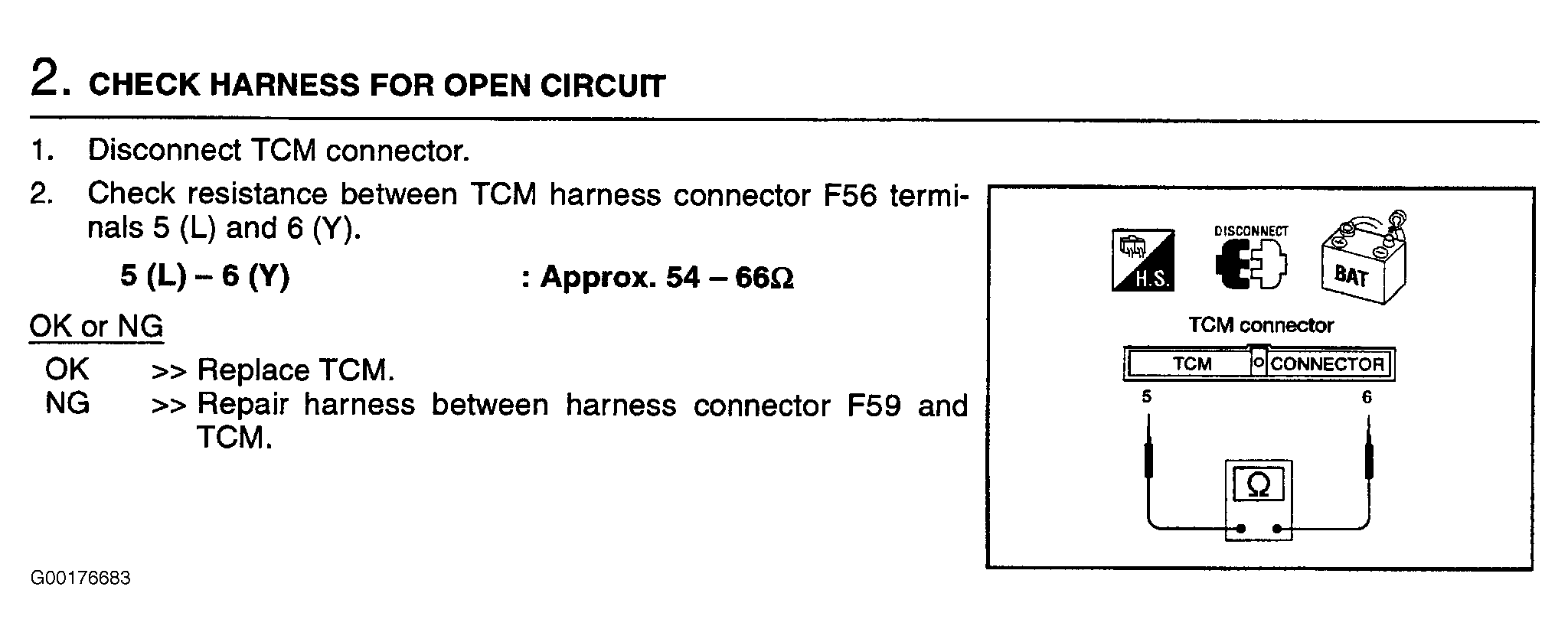

Fig 2: Identifying TCM Circuit Check, Step 2 (With TCS & A/T)

Courtesy of NISSAN MOTOR CO., U.S.A.
