Premium System (With NAVI)

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

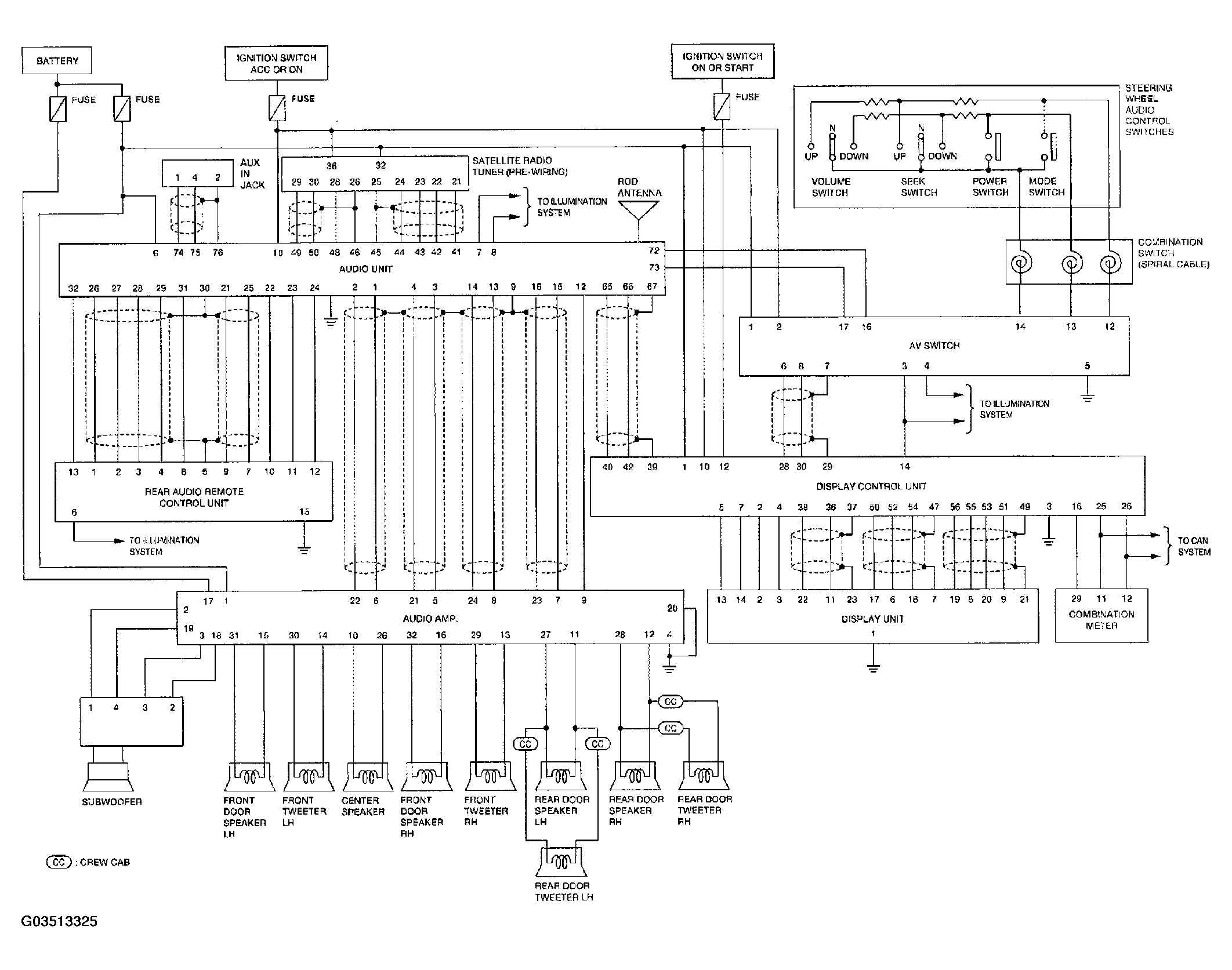

Fig 1: Audio Premium System (With NAVI)

Courtesy of NISSAN MOTOR CO., U.S.A.
