Premium System

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

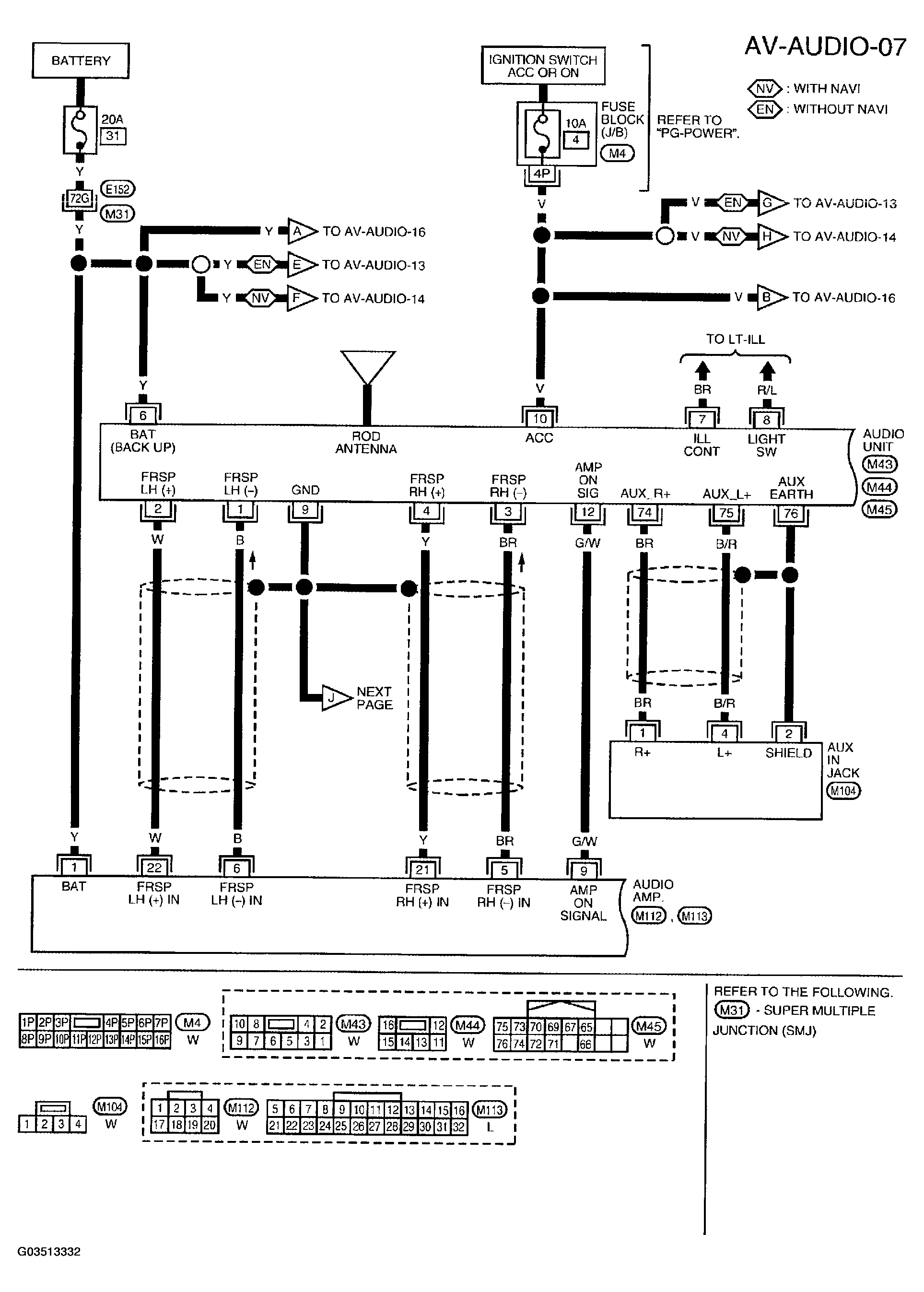

Fig 1: Wiring Diagram - Audio Premium System AV-AUDIO-07 (1 Of 6)

G03513332

Courtesy of NISSAN MOTOR CO., U.S.A.

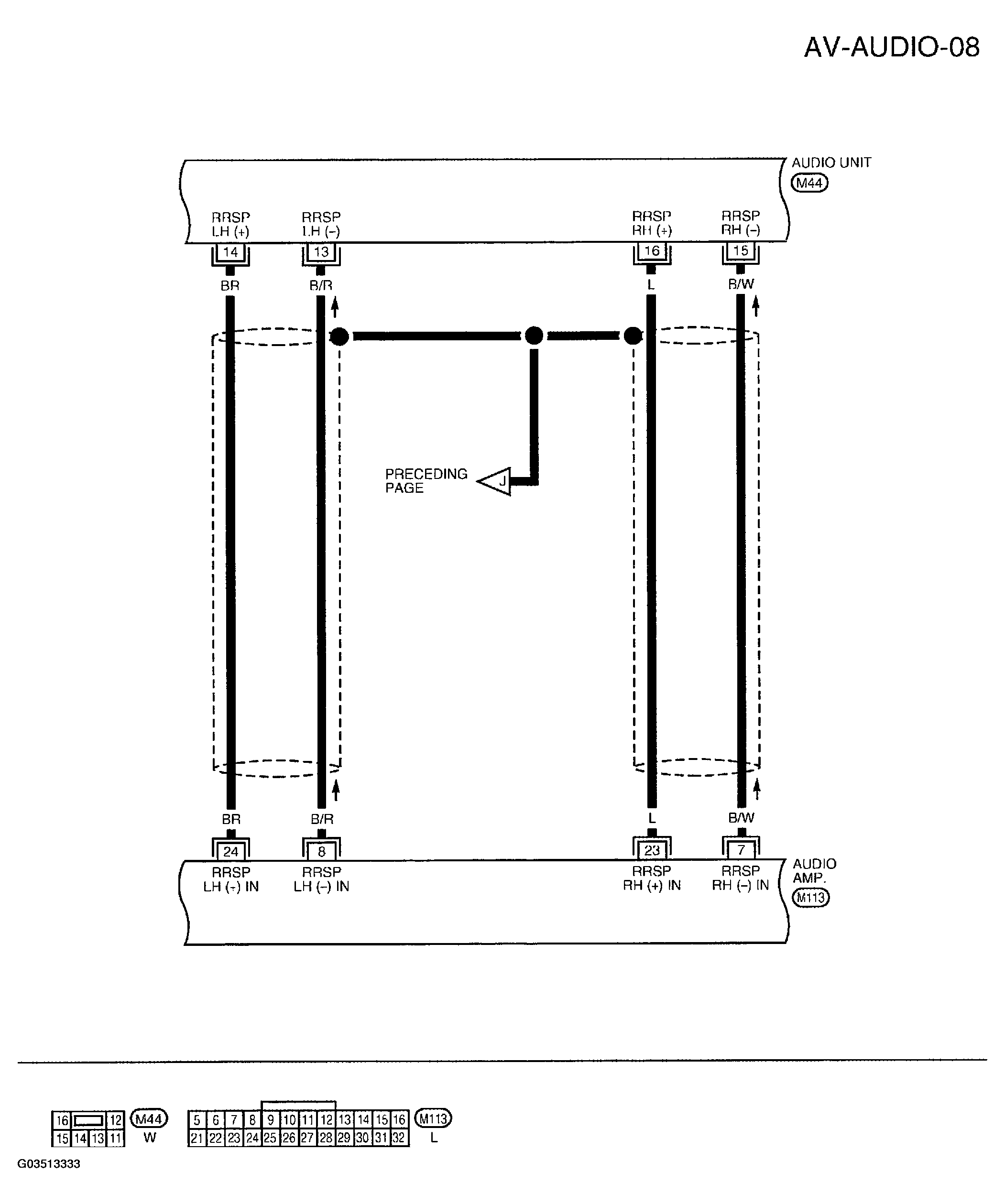

Fig 2: Wiring Diagram - Audio Premium System AV-AUDIO-08 (2 Of 6)

G03513333

Courtesy of NISSAN MOTOR CO., U.S.A.

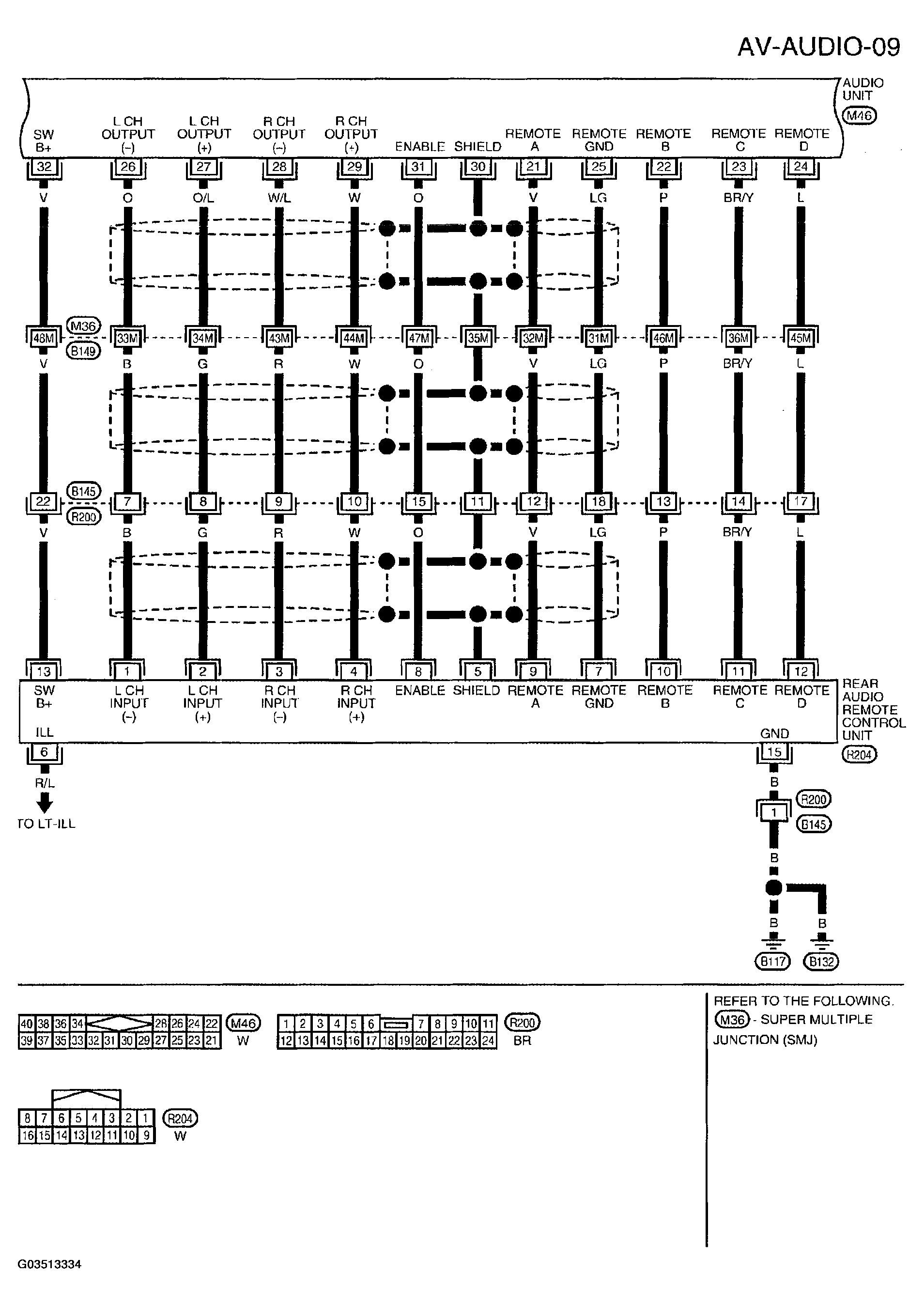

Fig 3: Wiring Diagram - Audio Premium System AV-AUDIO-09 (3 Of 6)

G03513334

Courtesy of NISSAN MOTOR CO., U.S.A.

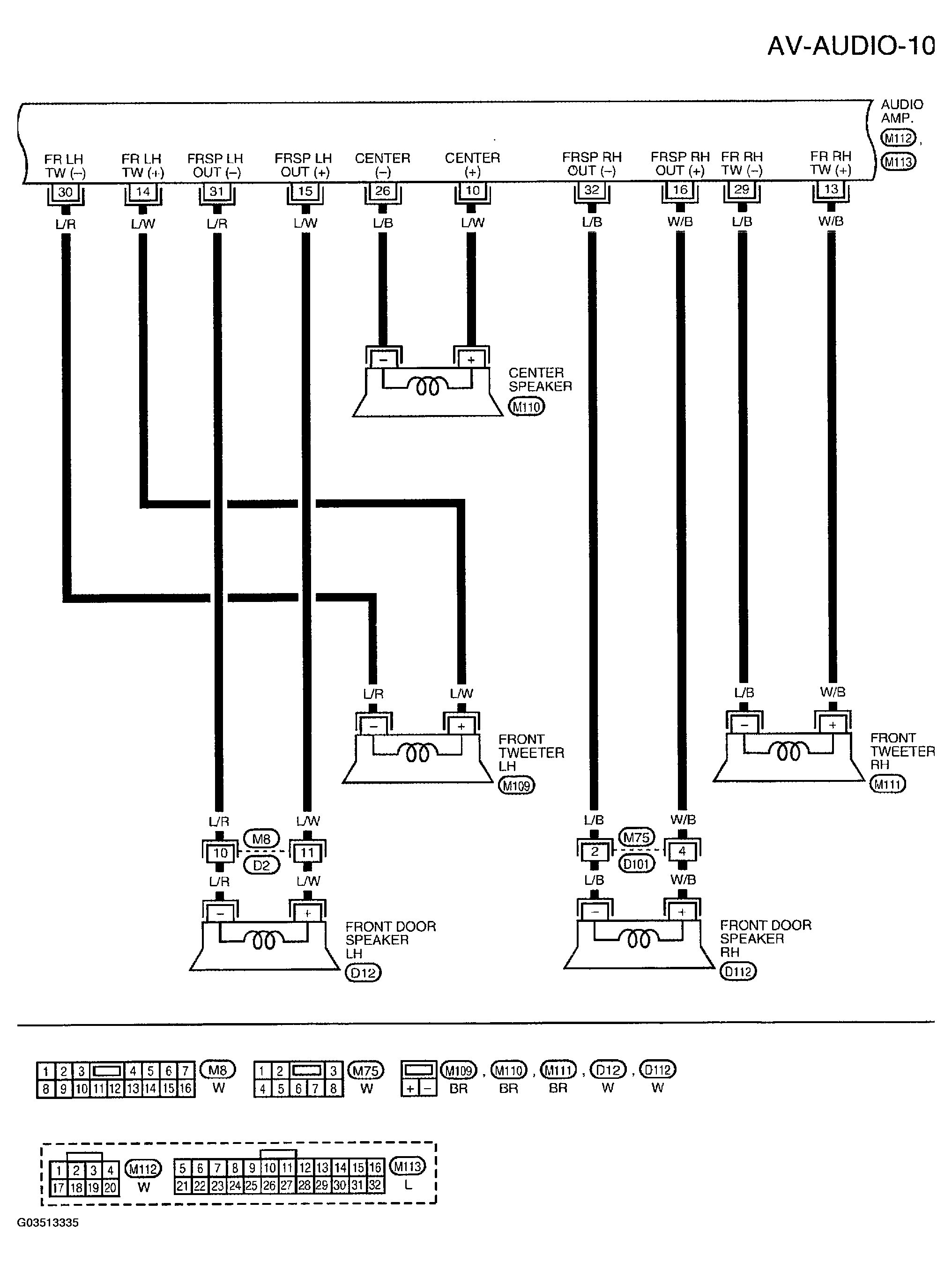

Fig 4: Wiring Diagram - Audio Premium System AV-AUDIO-10 (4 Of 6)

G03513335

Courtesy of NISSAN MOTOR CO., U.S.A.

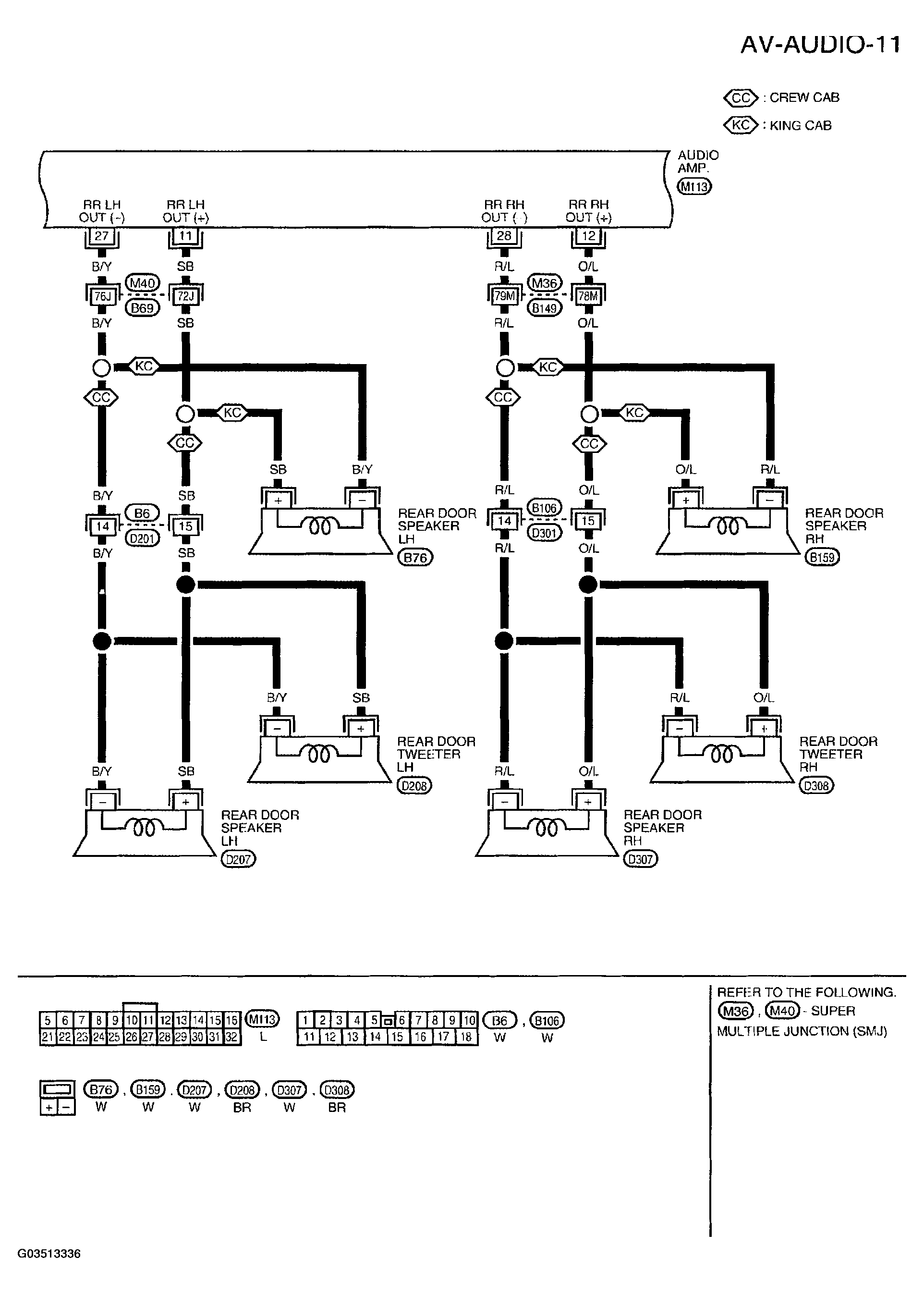

Fig 5: Wiring Diagram - Audio Premium System AV-AUDIO-11 (5 Of 6)

G03513336

Courtesy of NISSAN MOTOR CO., U.S.A.

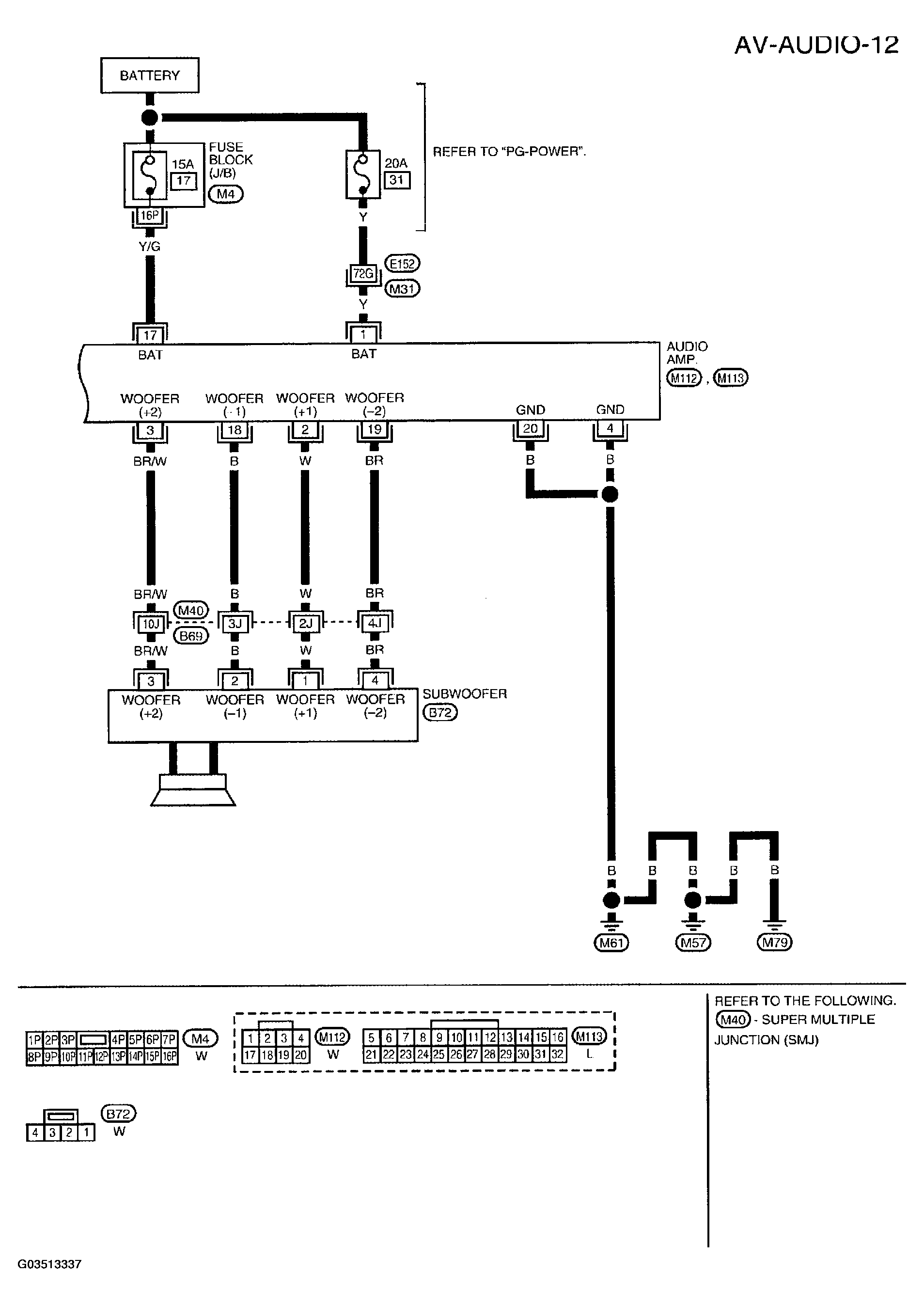

Fig 6: Wiring Diagram - Audio Premium System AV-AUDIO-12 (6 Of 6)

G03513337

Courtesy of NISSAN MOTOR CO., U.S.A.

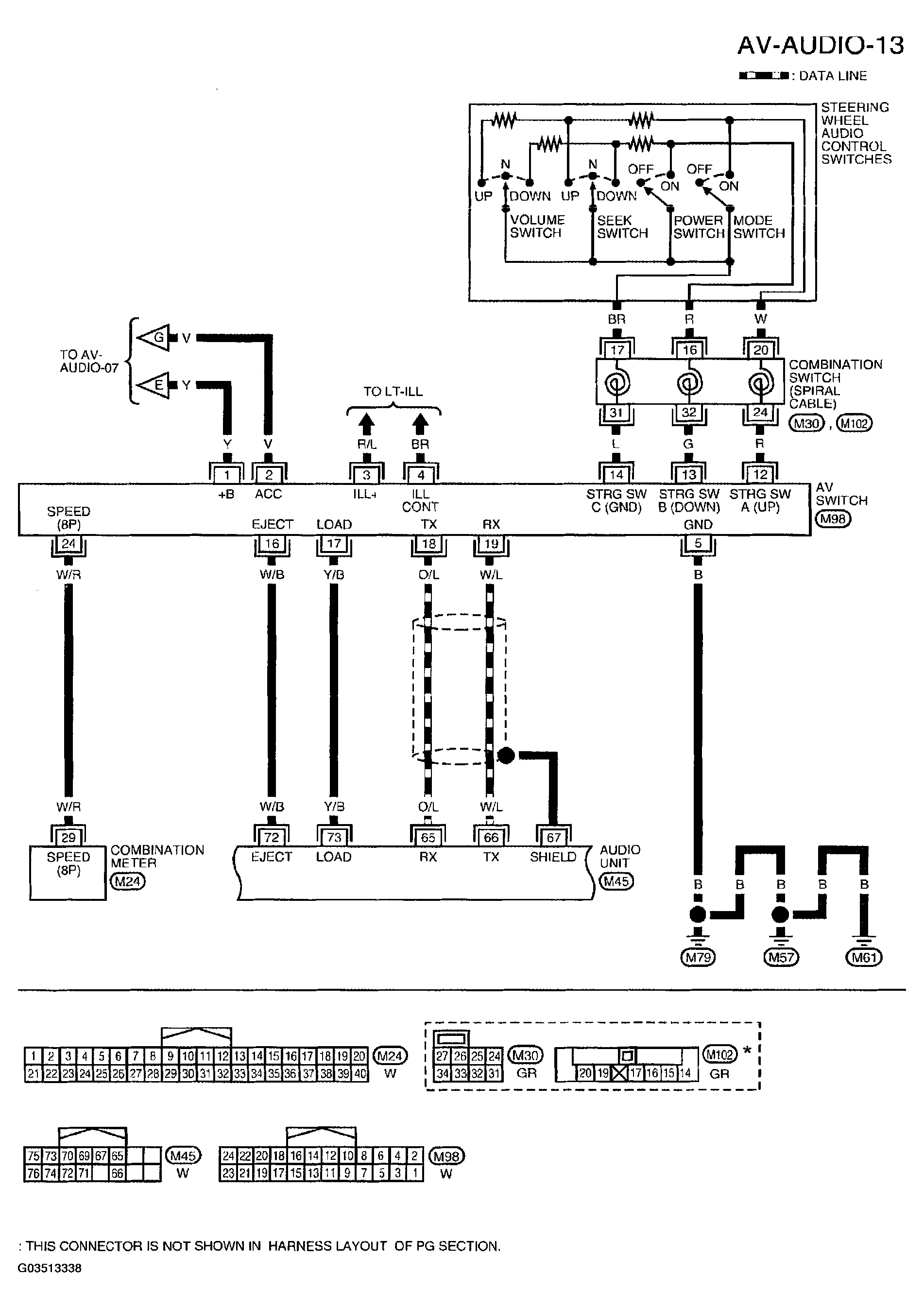

Fig 7: Wiring Diagram - Audio Premium System (Without NAVI) AV-AUDIO-13

G03513338

Courtesy of NISSAN MOTOR CO., U.S.A.

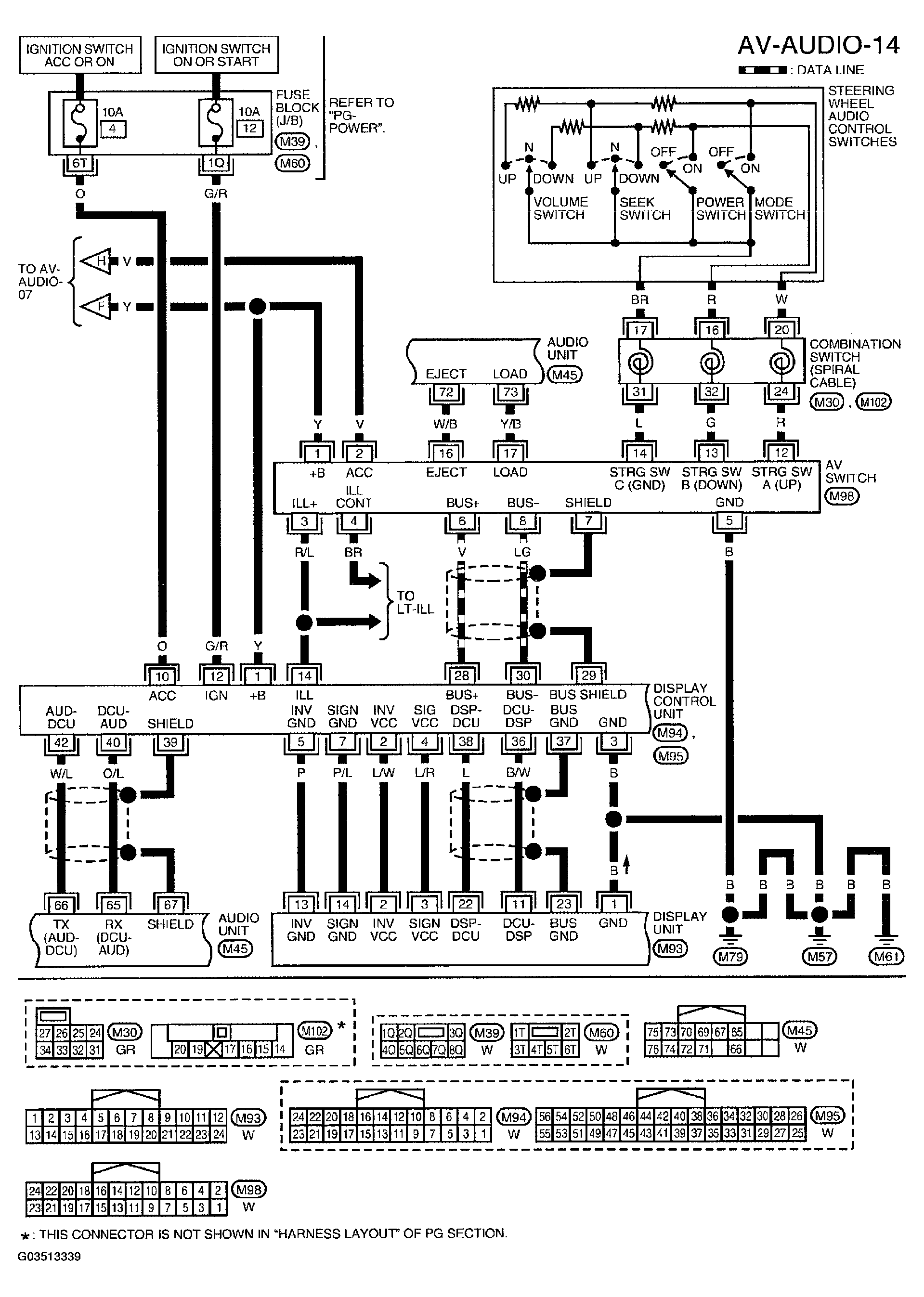

Fig 8: Wiring Diagram - Audio Premium System (With NAVI) AV-AUDIO-14 (1 Of 2)

G03513339

Courtesy of NISSAN MOTOR CO., U.S.A.

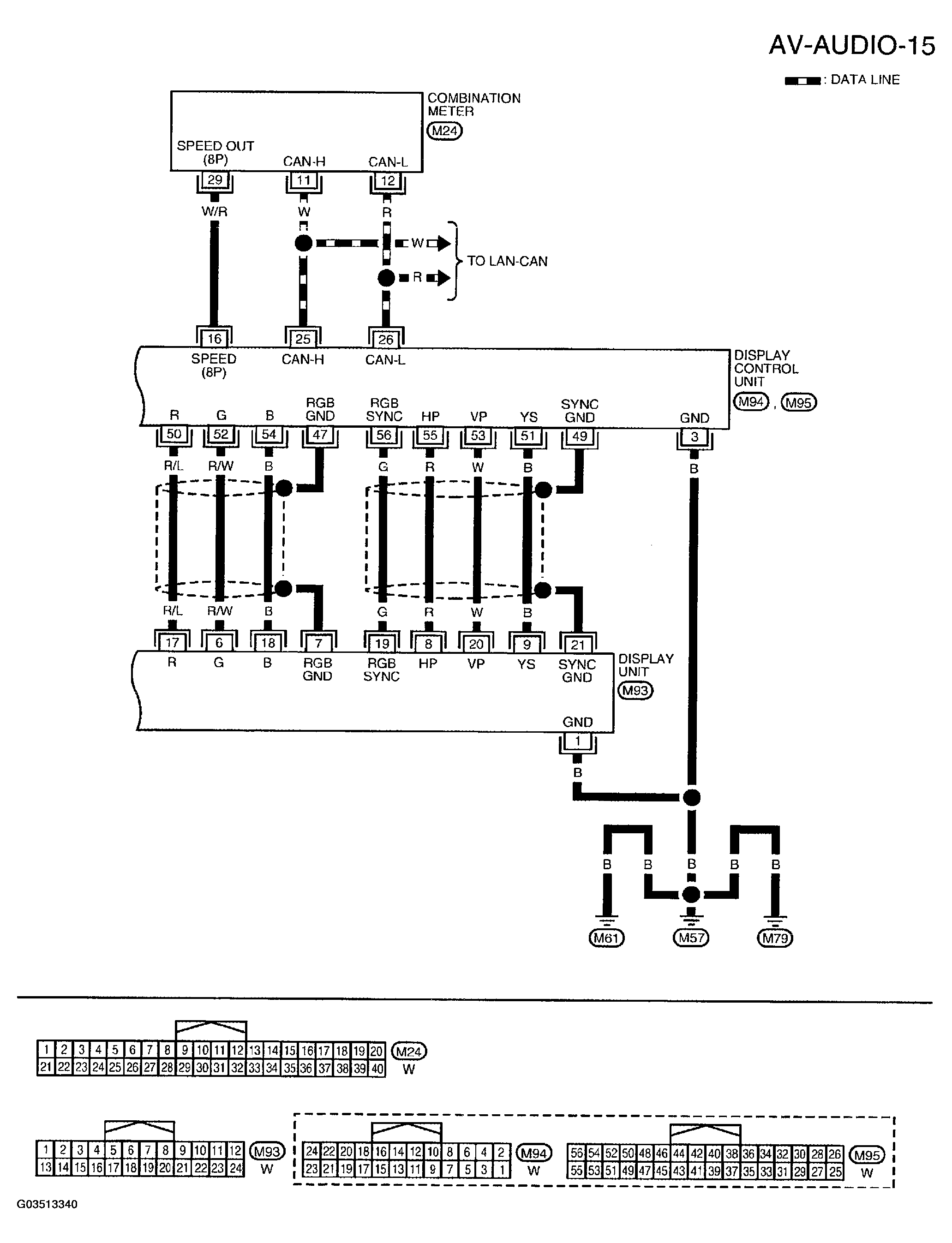

Fig 9: Wiring Diagram - Audio Premium System (With NAVI) AV-AUDIO-15 (2 Of 2)

G03513340

Courtesy of NISSAN MOTOR CO., U.S.A.

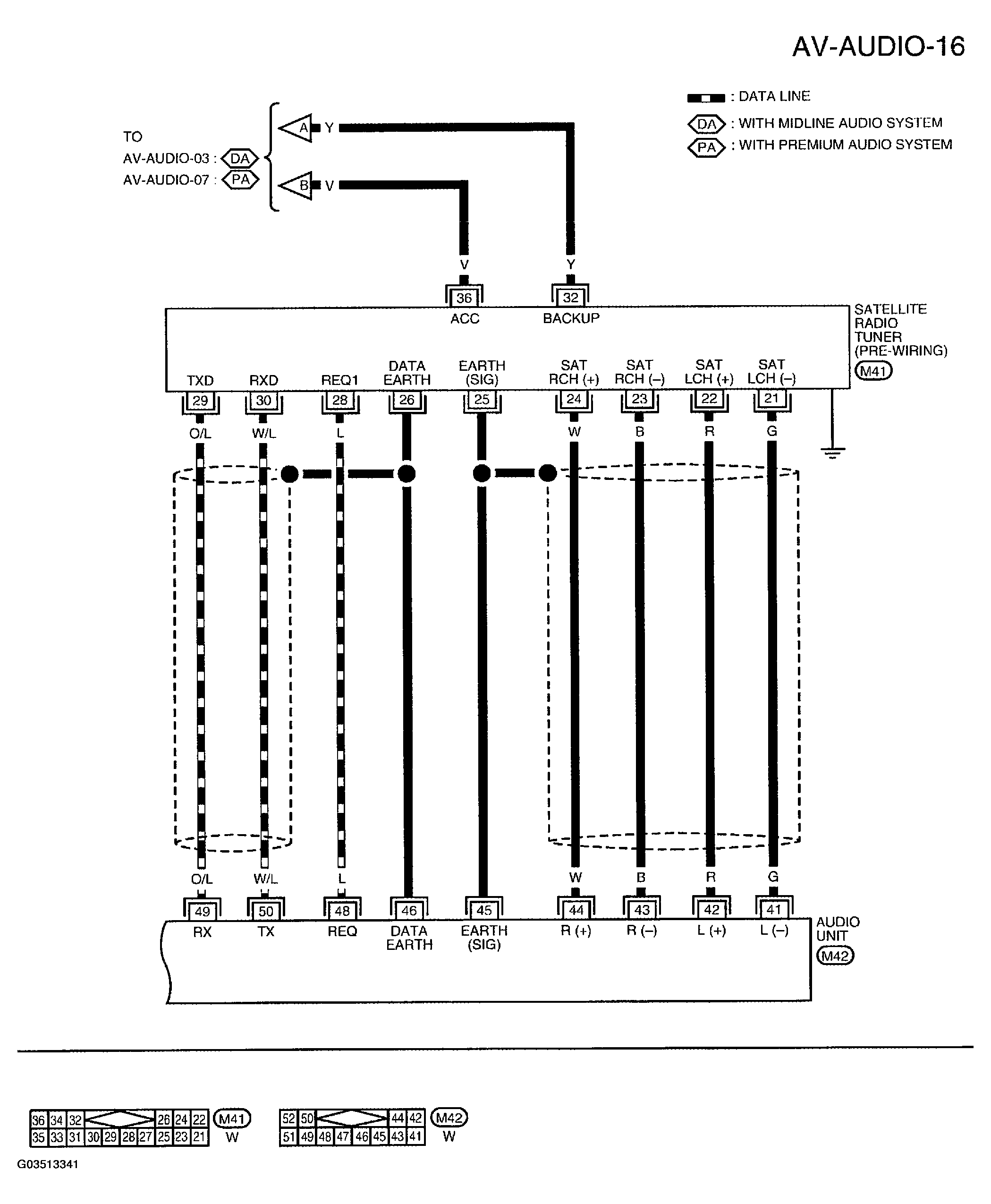

Fig 10: Wiring Diagram - Audio Base Or Midline System (With NAVI) AV-AUDIO-16

G03513341

Courtesy of NISSAN MOTOR CO., U.S.A.
