Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "SELF-DIAG RESULTS" on "SELECT DIAG MODE" screen.
  2. Self-diagnosis results are displayed.

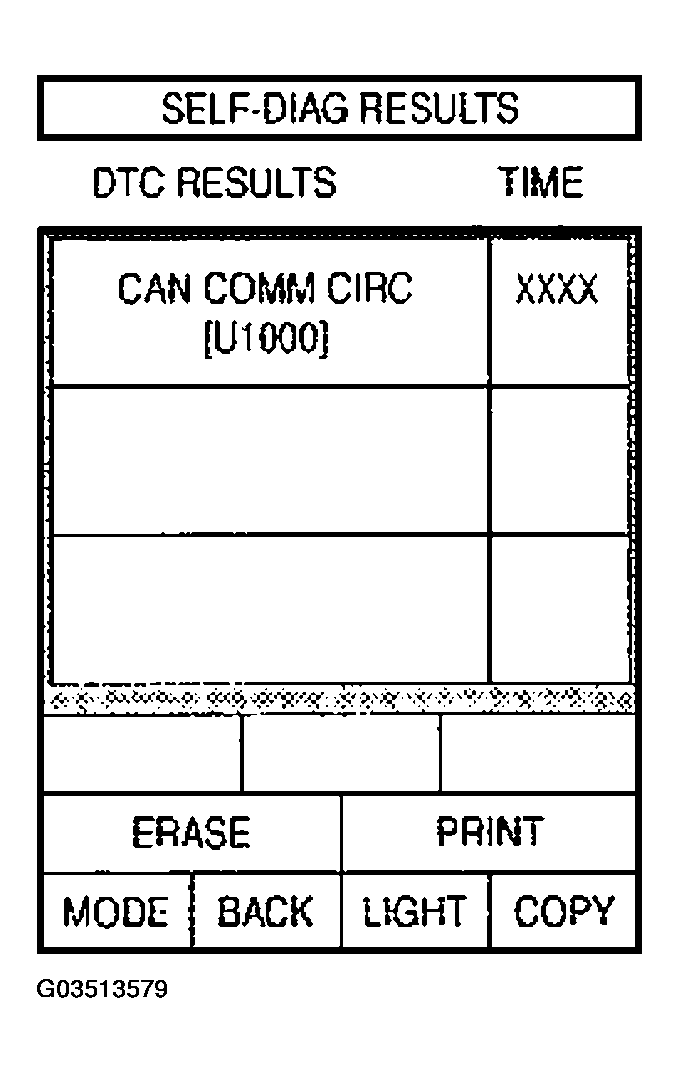

Fig 1: Displaying Self-Diagnosis Results
G03513579Courtesy of NISSAN MOTOR CO., U.S.A.
