KEYFOB Id Setup With Consult-II

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
NOTE:
  • If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use.

    When the ID code of a lost keyfob is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new key fobs must be re-registered.

  • When registering an additional keyfob, the existing ID codes in memory may or may not be erased.

    If five ID codes are stored in memory, when an additional code is registered, only the oldest code is erased. If less than five ID codes are stored in memory, when an additional ID code is registered, the new ID code is added and no ID codes are erased.

  • Entry of maximum five ID codes is allowed. When more than five ID codes are entered, the oldest ID code will be erased.
  • Even if same ID code that is already in the memory is input, the same ID code can be entered. The code is counted as an additional code.
  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

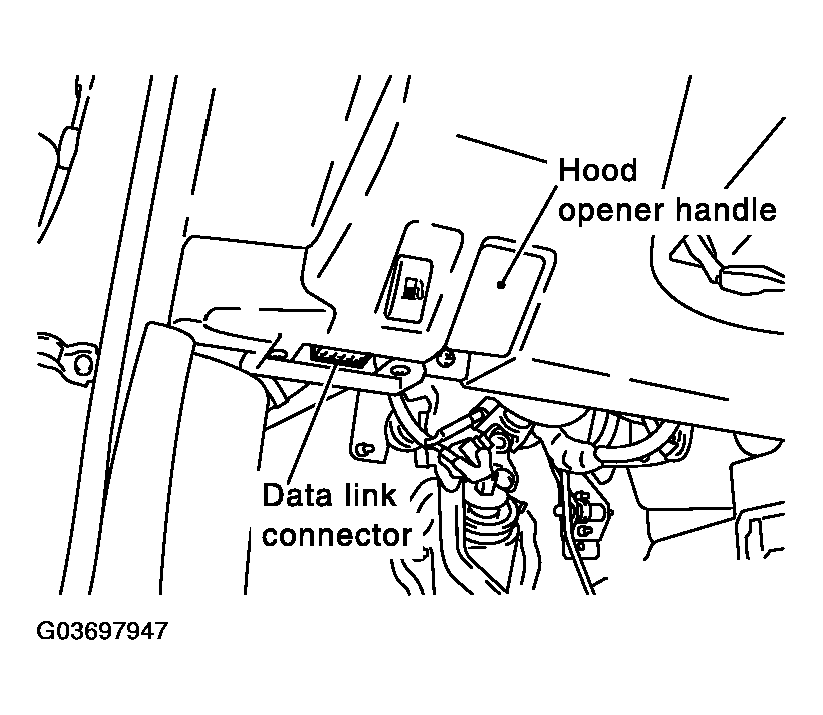

    Fig 1: Identifying Data Link Connector
    G03697947Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Identifying Scan Tool SETUP Display (1 Of 5)
    G03697948Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "BCM".

    If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT

    Fig 3: Identifying Scan Tool SETUP Display (2 Of 5)
    G03697949Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "MULTI REMOTE ENT".
    Fig 4: Identifying Scan Tool SETUP Display (3 Of 5)
    G03697950Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "WORK SUPPORT".
    Fig 5: Identifying Scan Tool SETUP Display (4 Of 5)
    G03697951Courtesy of NISSAN MOTOR CO., U.S.A.
  8. The items shown on the figure can be set up.

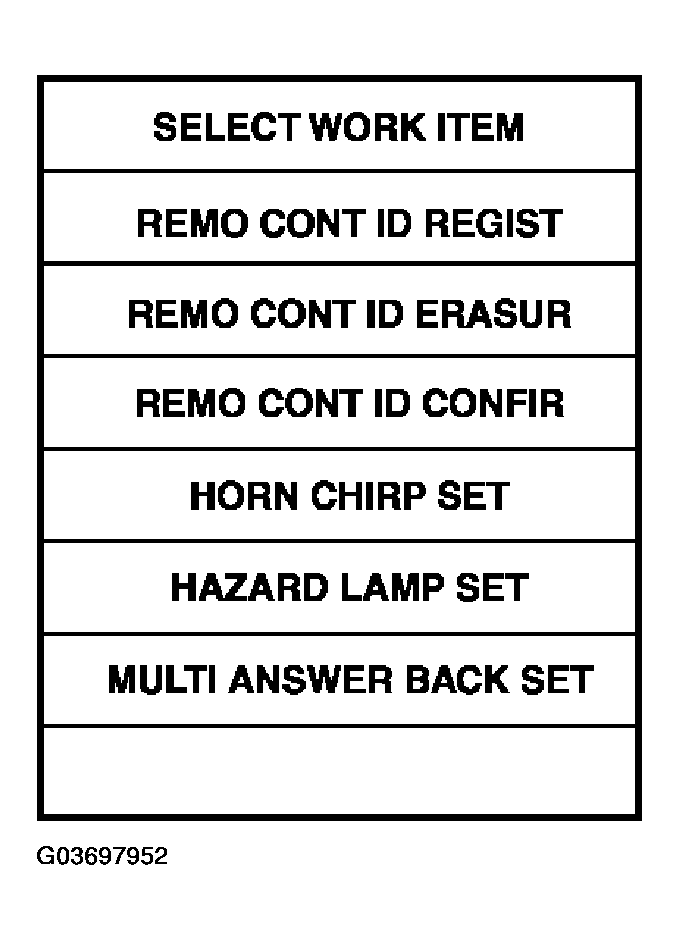

    Fig 6: Identifying Scan Tool SETUP Display (5 Of 5)
    G03697952Courtesy of NISSAN MOTOR CO., U.S.A.
    • "REMO CONT ID REGIST "

      Use this mode to register a keyfob ID code.

      NOTE: Register the ID code when keyfob or BCM is replaced, or when additional keyfob is required.
    • "REMO CONT ID ERASER "

      Use this mode to erase a keyfob ID code.

    • "REMO CONT ID CONFIR "

      Use this mode to confirm if a keyfob ID code is registered or not.
