COMPONENT LOCATIONS

Component

Location

Body ECU

⁽¹⁾

Moon Roof Control Relay (Moon Roof Drive Gear Sub-Assembly)

⁽¹⁾

Moon Roof Housing Sub-Assembly

⁽¹⁾⁽⁴⁾

Moon Roof Motor Switch

⁽¹⁾

PWR No. 1 Fuse

⁽²⁾

Rear Sun Shade Assembly

⁽³⁾

Rear Sun Shade Relay

⁽³⁾

Rear Sun Shade Switch Assembly

⁽³⁾

Roof Headlining Components

⁽⁵⁾

⁽¹⁾	See Fig 1.

⁽²⁾	Located in the driver side junction block in the lower finish panel.

⁽³⁾	See Fig 2.

⁽⁴⁾	See Fig 3.

⁽⁵⁾	See Fig 4 and Fig 5 .

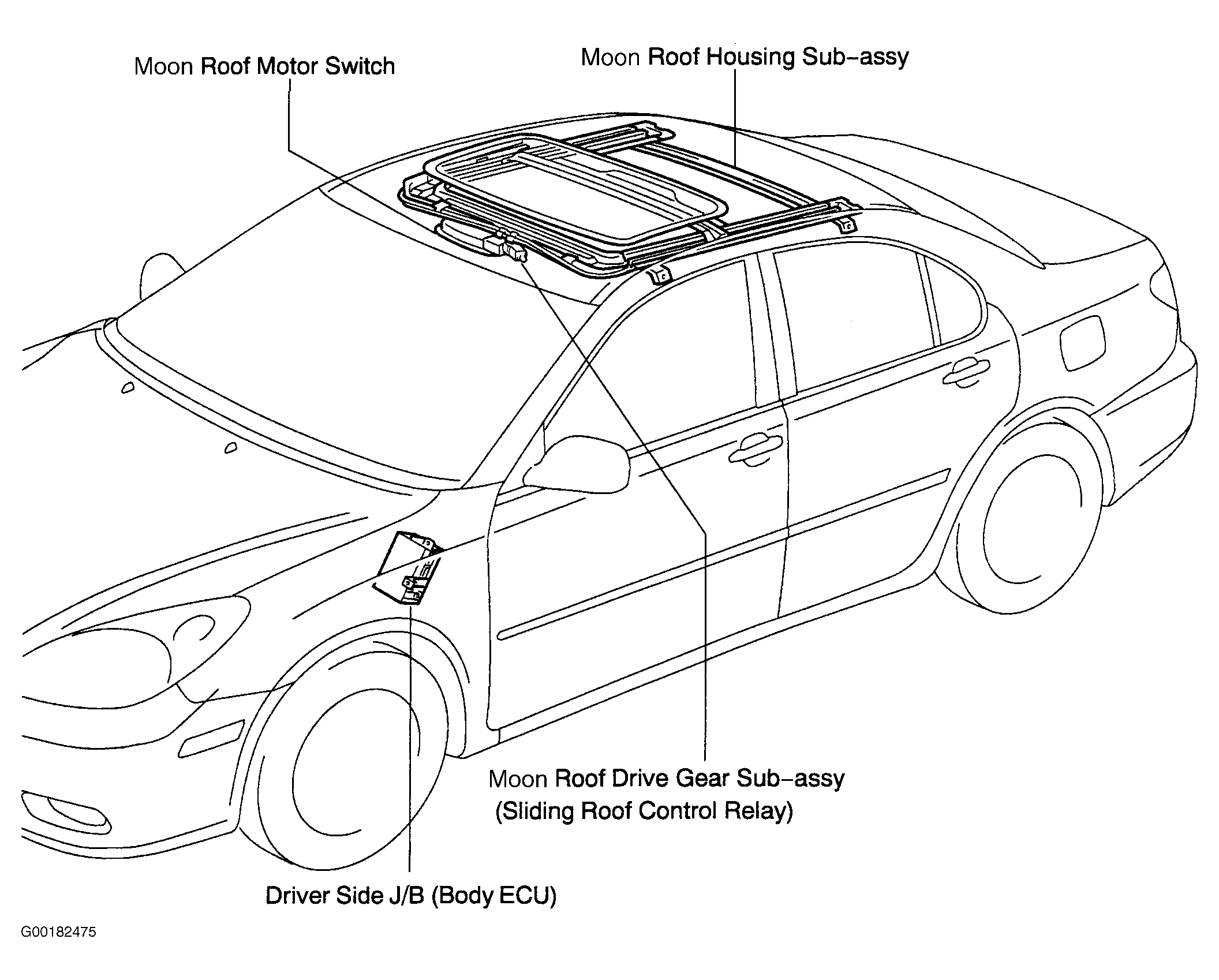

Fig 1: Identifying Moon Roof Component Locations

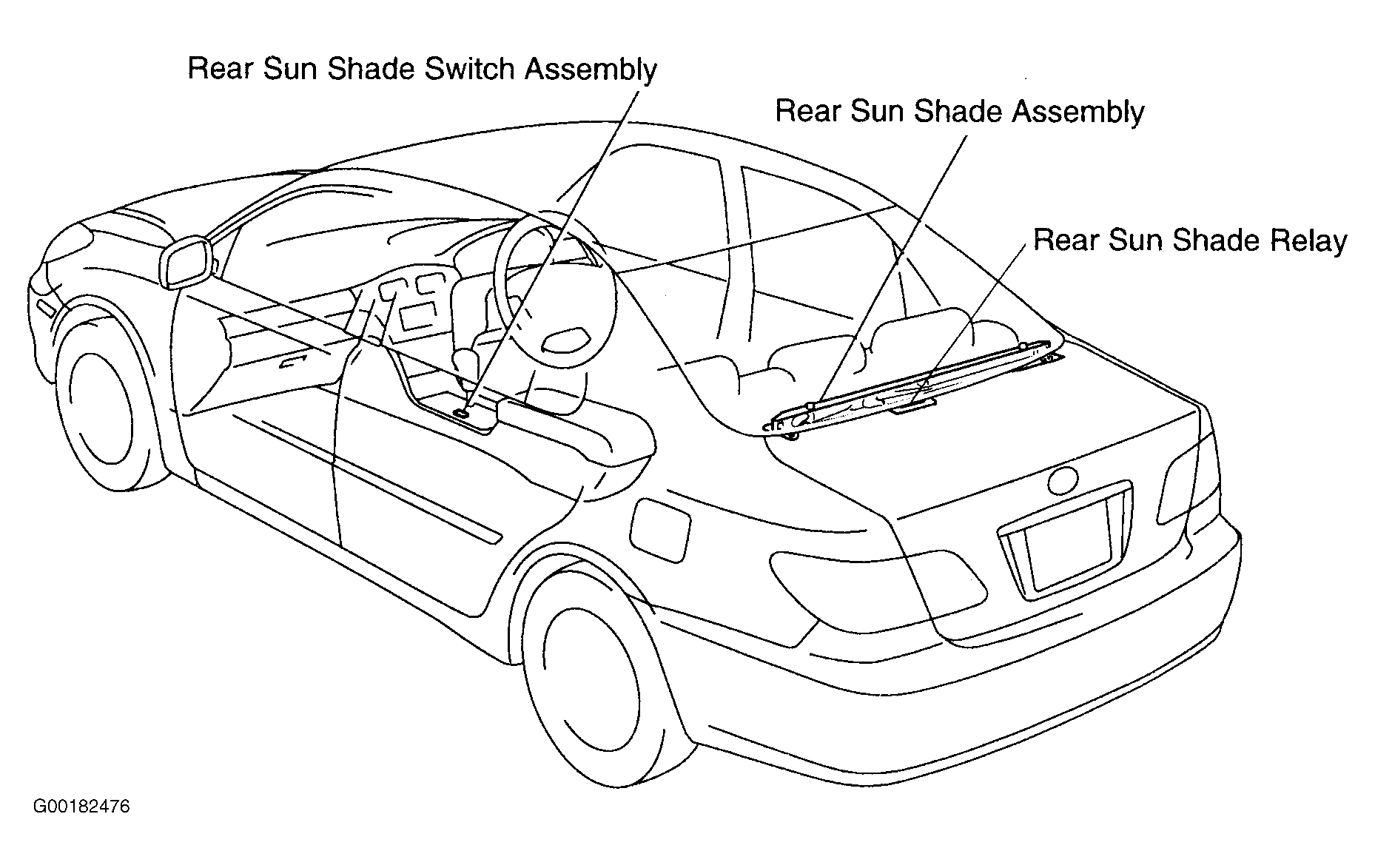

Fig 2: Identifying Rear Sun Shade Component Locations

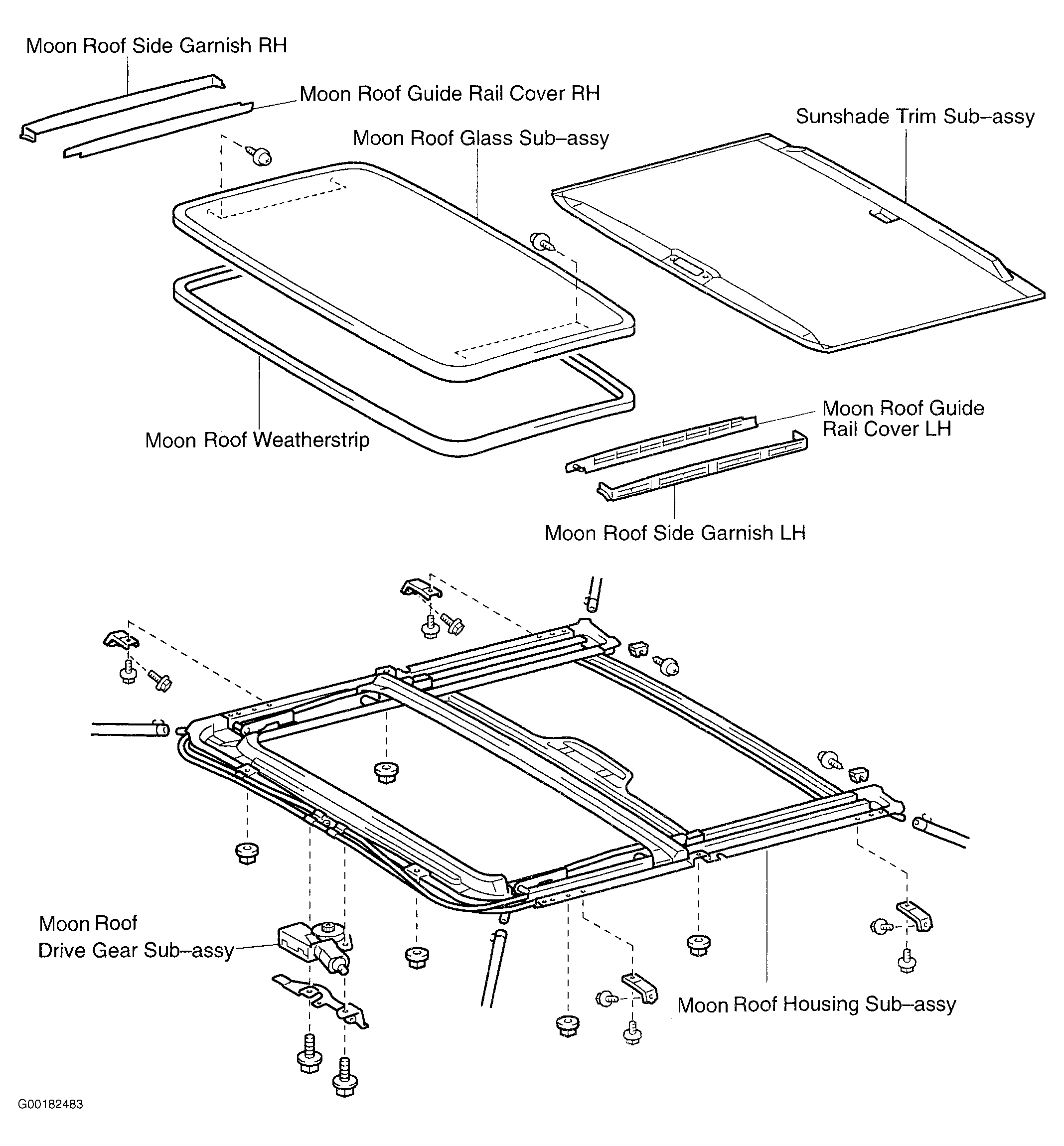

Fig 3: Exploded View Of Moon Roof Housing Sub-Assembly Components

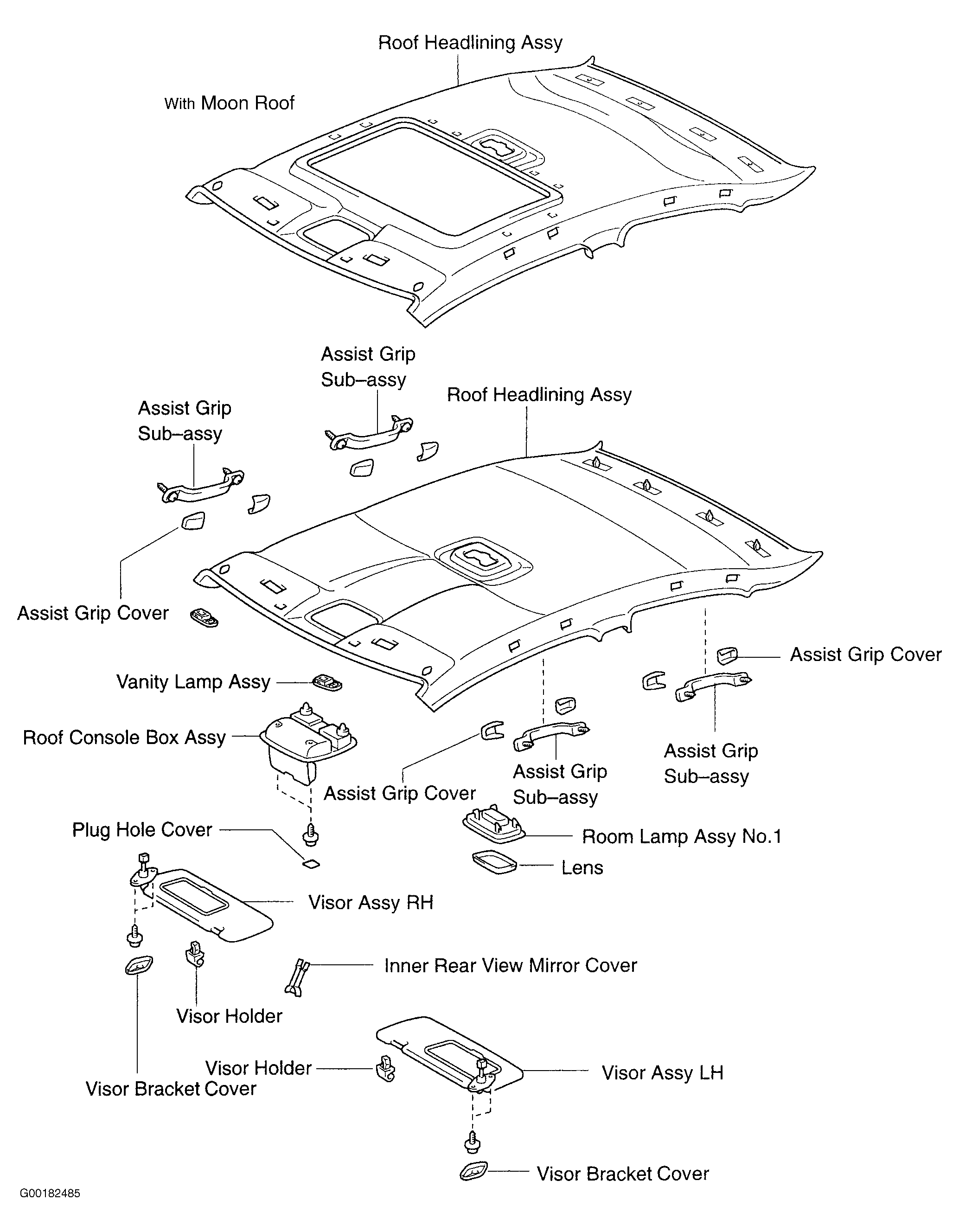

Fig 4: Exploded View Of Roof Headlining Components (1 Of 2)

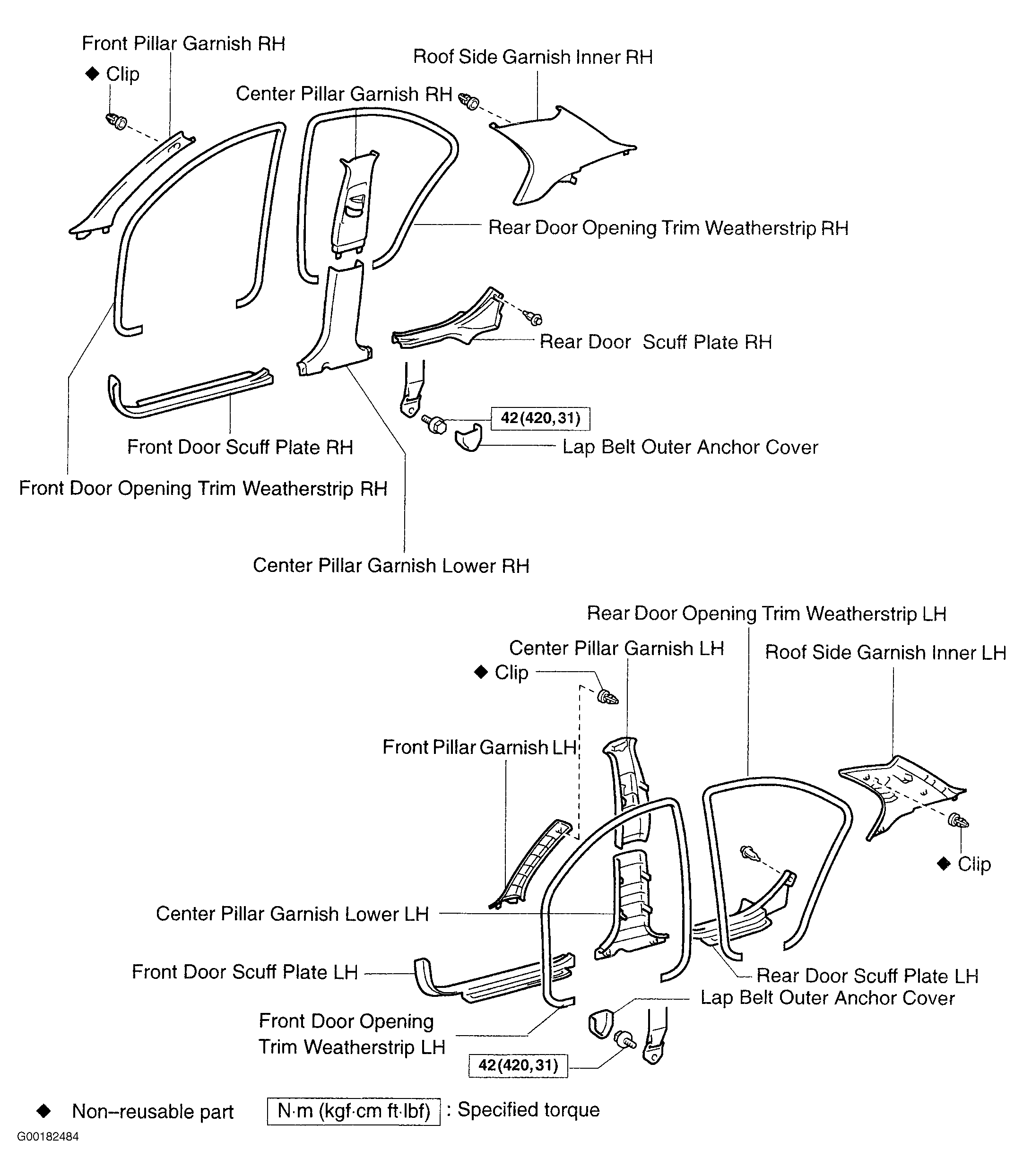

Fig 5: Exploded View Of Roof Headlining Components (2 Of 2)
