Section 1383 (2004.5 - Navigation System - Coupe): Schematic

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

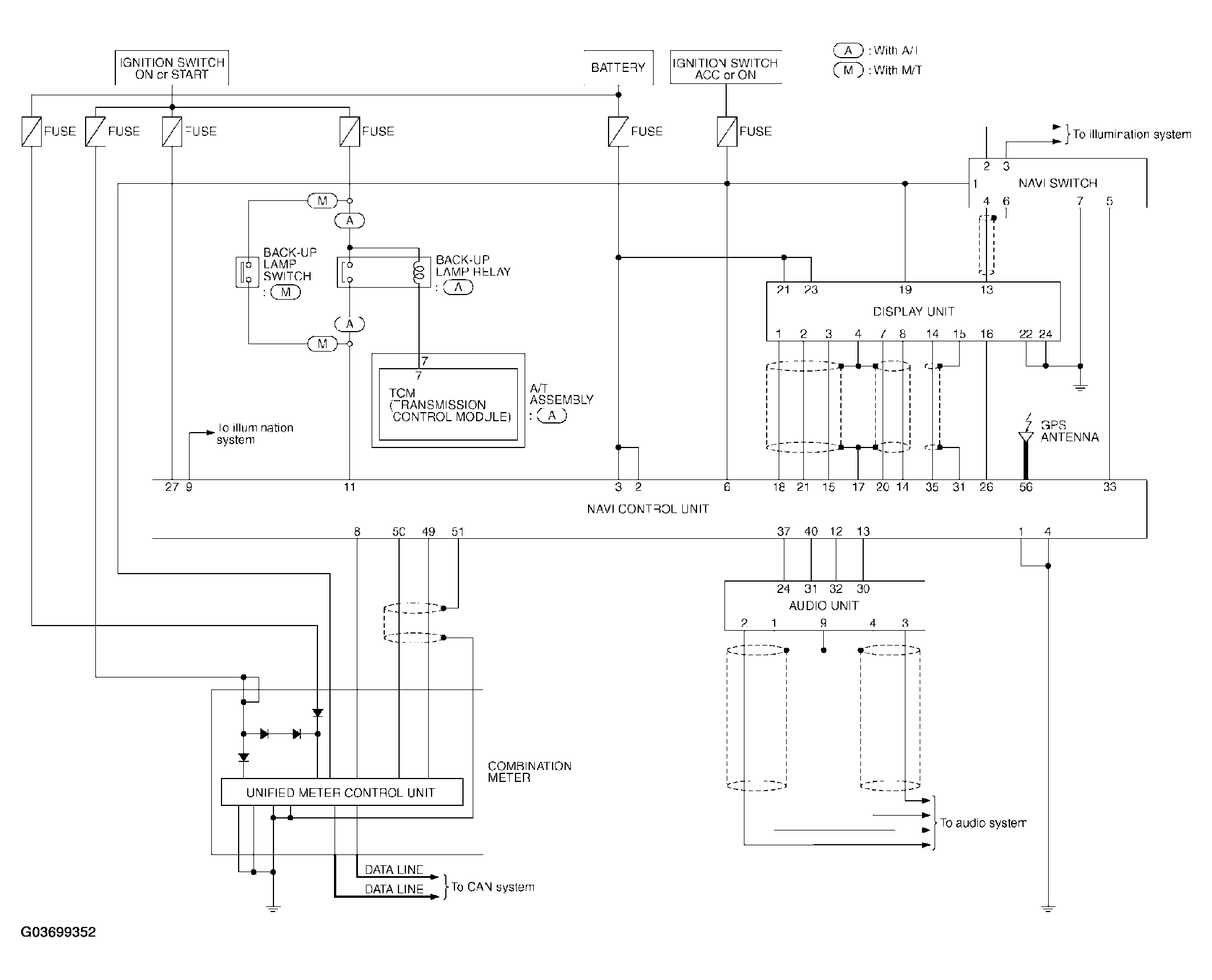

Fig 1: Navigation System Schematic Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
