Terminals and Reference Value for Display Unit

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

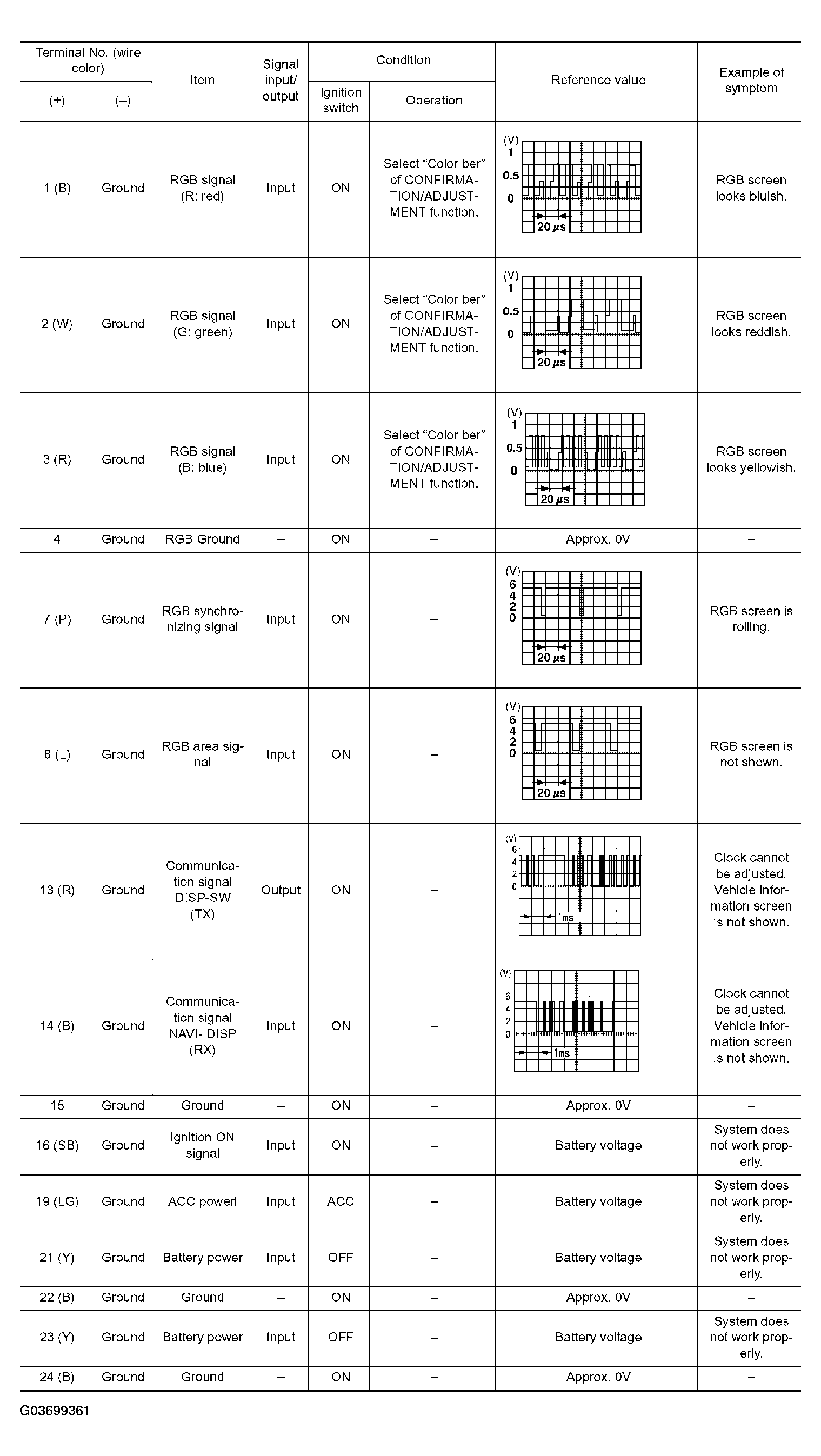

Fig 1: Terminals And Reference Value Display Unit Table

Courtesy of NISSAN MOTOR CO., U.S.A.
