Components (VQ35DE Models)

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

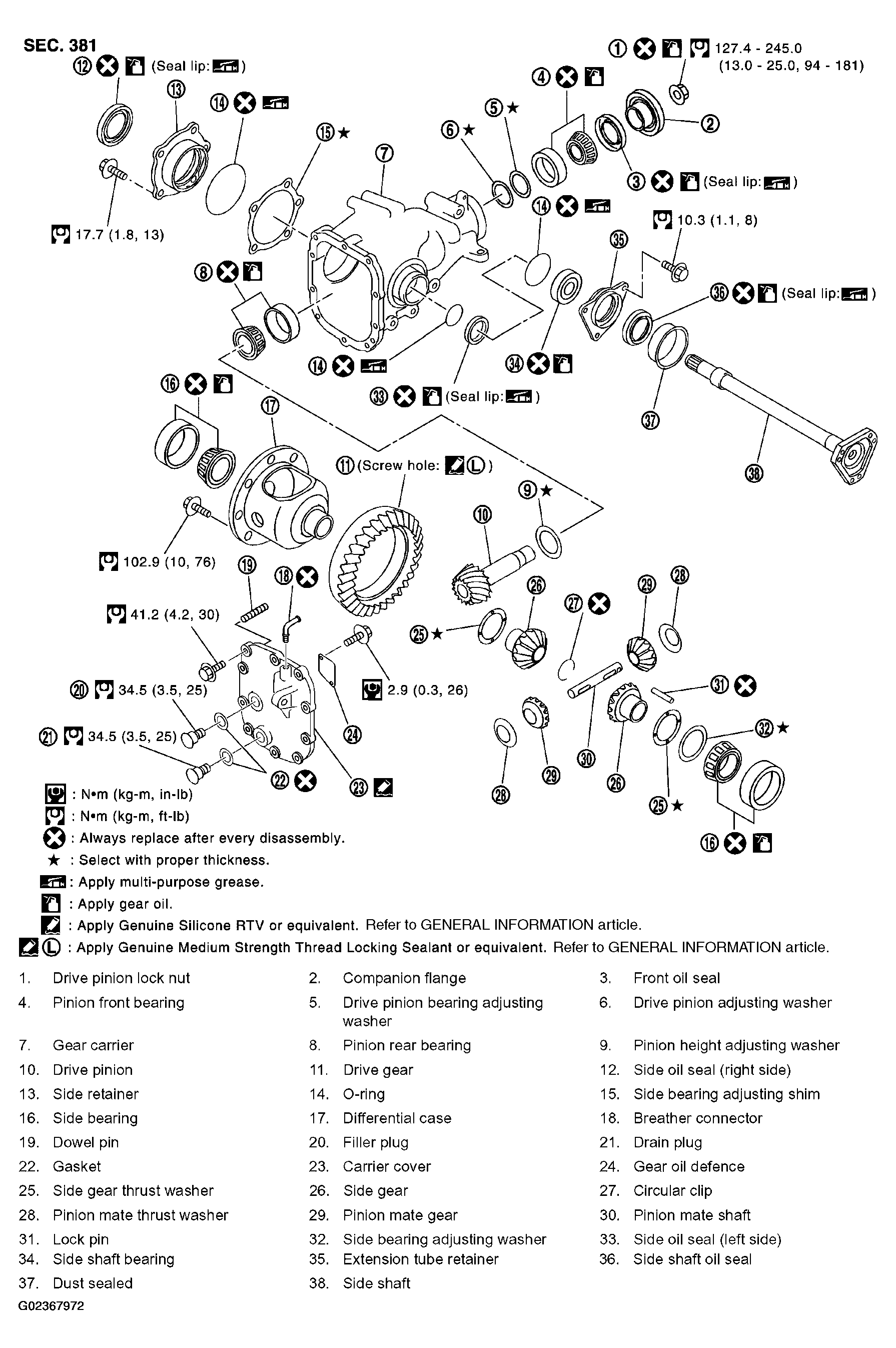

Fig 1: Exploded View Of Front Final Drive Assembly With Torque Specifications (VQ35DE Models)
G02367972Courtesy of NISSAN MOTOR CO., U.S.A.
