Front Wiper Does Not Operate

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS  .
NOTE: For active test, see ACTIVE TEST  .

For front wiper does not operate testing, see Fig 1 -Fig 5 .

Fig 1: Identifying Front Wiper Does Not Operate, Step 1
G00189119Courtesy of NISSAN MOTOR CO., U.S.A.

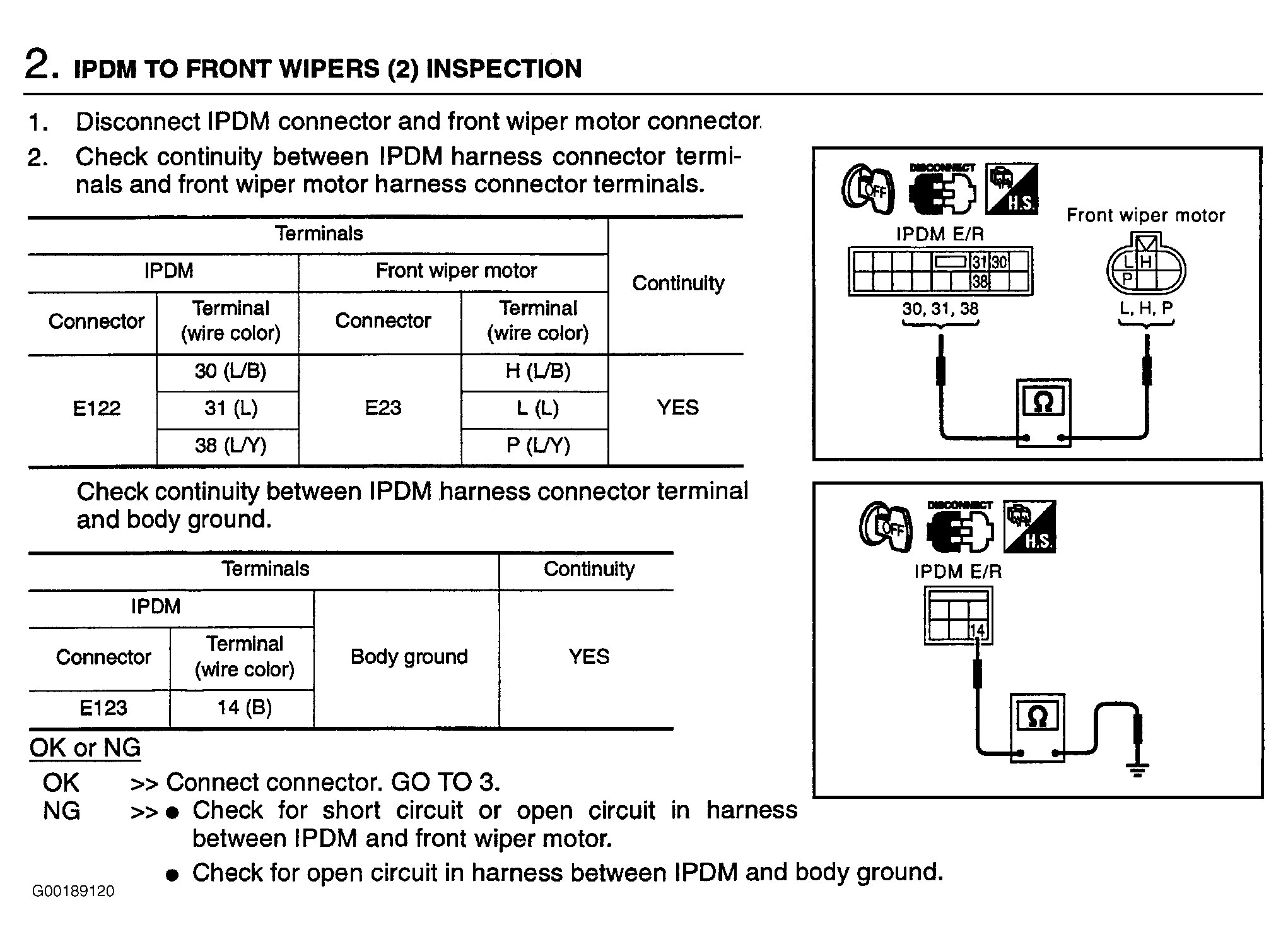

Fig 2: Identifying Front Wiper Does Not Operate, Step 2
G00189120Courtesy of NISSAN MOTOR CO., U.S.A.

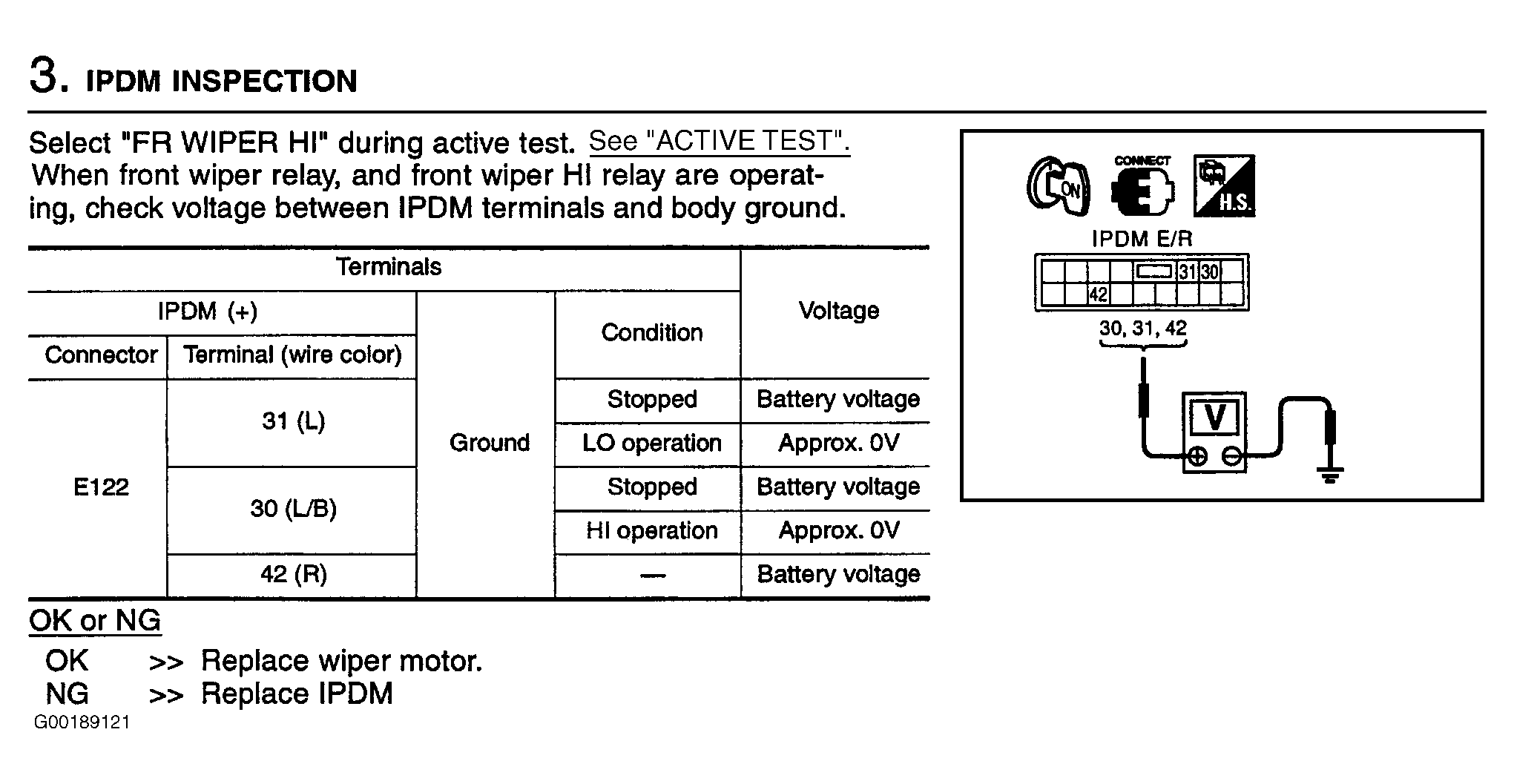

Fig 3: Identifying Front Wiper Does Not Operate, Step 3
G00189121Courtesy of NISSAN MOTOR CO., U.S.A.

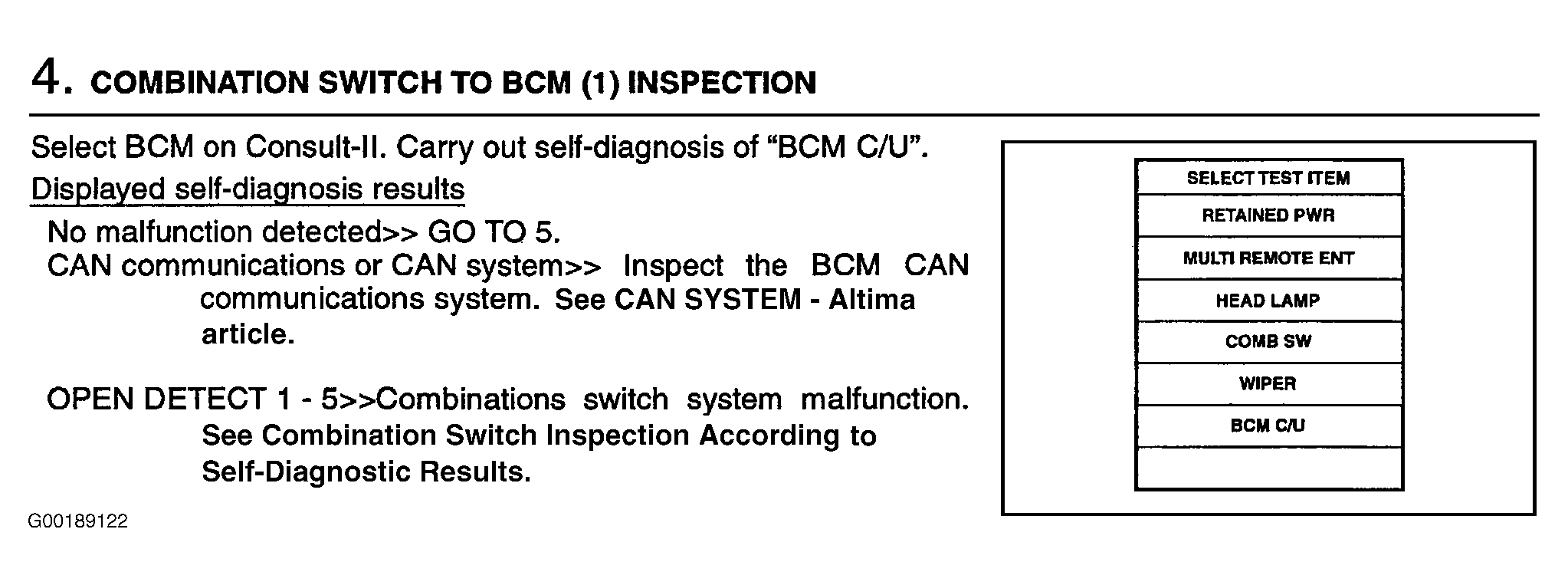

Fig 4: Identifying Front Wiper Does Not Operate, Step 4
G00189122Courtesy of NISSAN MOTOR CO., U.S.A.

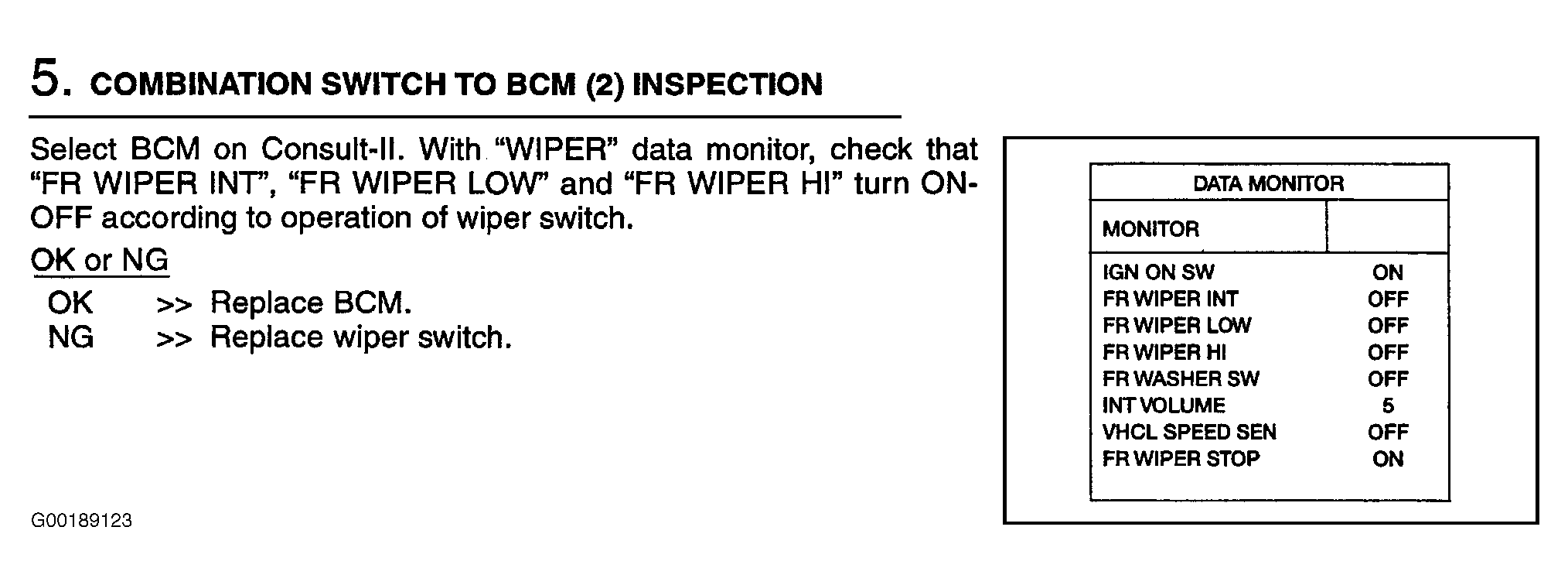

Fig 5: Identifying Front Wiper Does Not Operate, Step 5
G00189123Courtesy of NISSAN MOTOR CO., U.S.A.
