Front Wiper Stop Position Is Incorrect

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS .

For front wiper stop position is incorrect testing, see Fig 1 -Fig 3 .

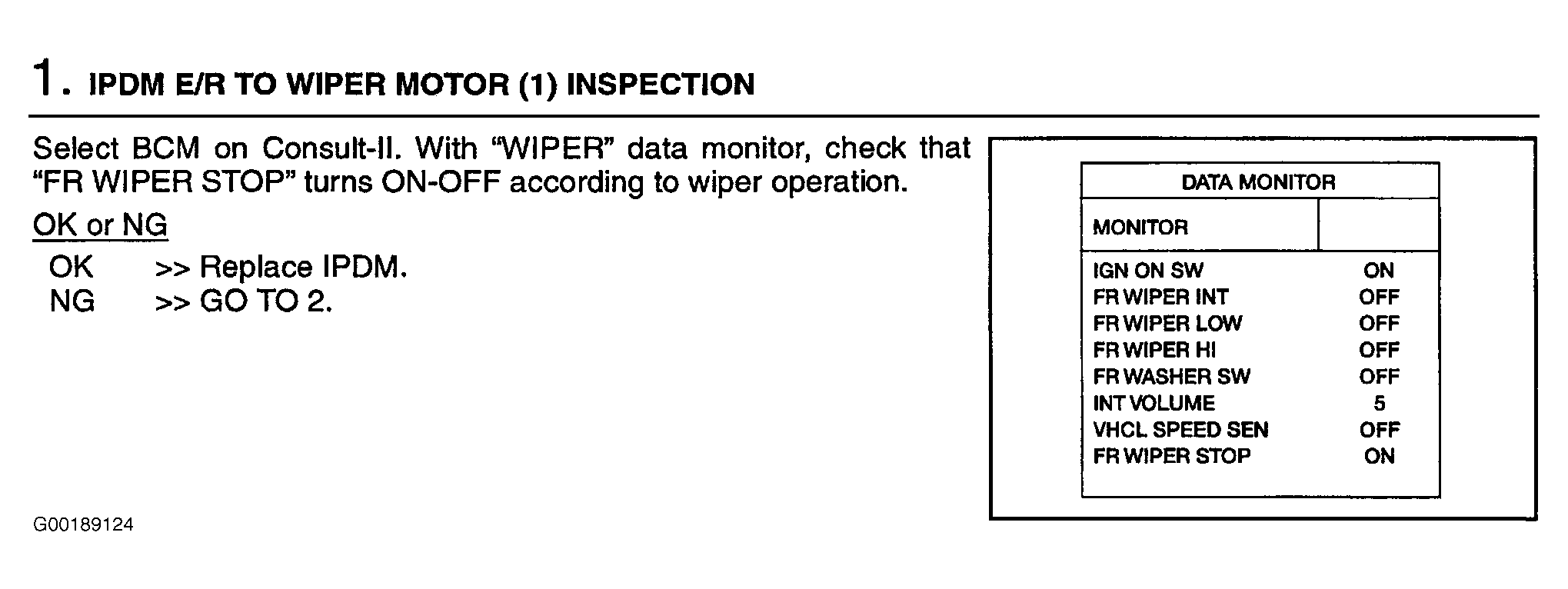

Fig 1: Identifying Front Wiper Stop Position Is Incorrect, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

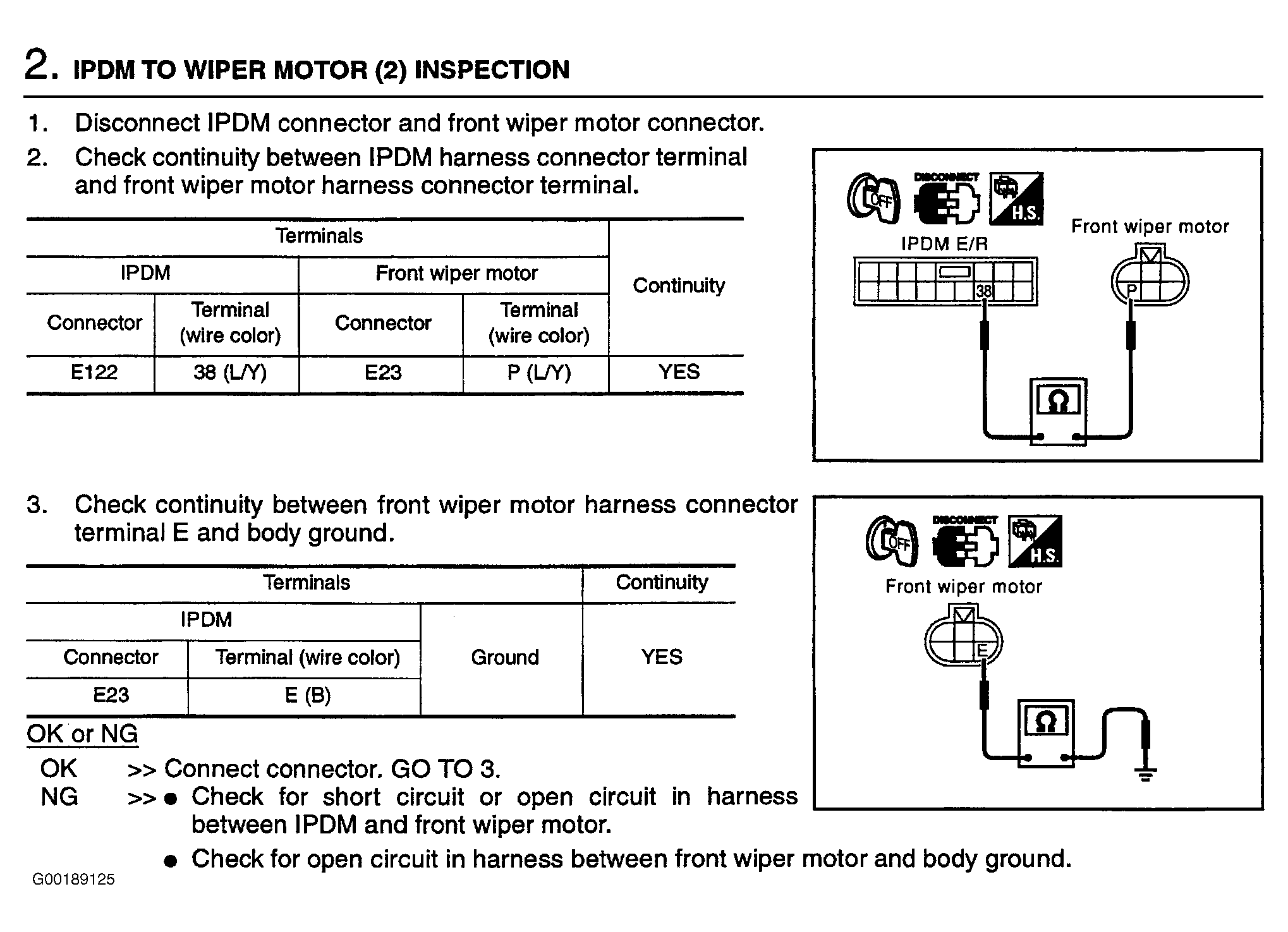

Fig 2: Identifying Front Wiper Stop Position Is Incorrect, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.

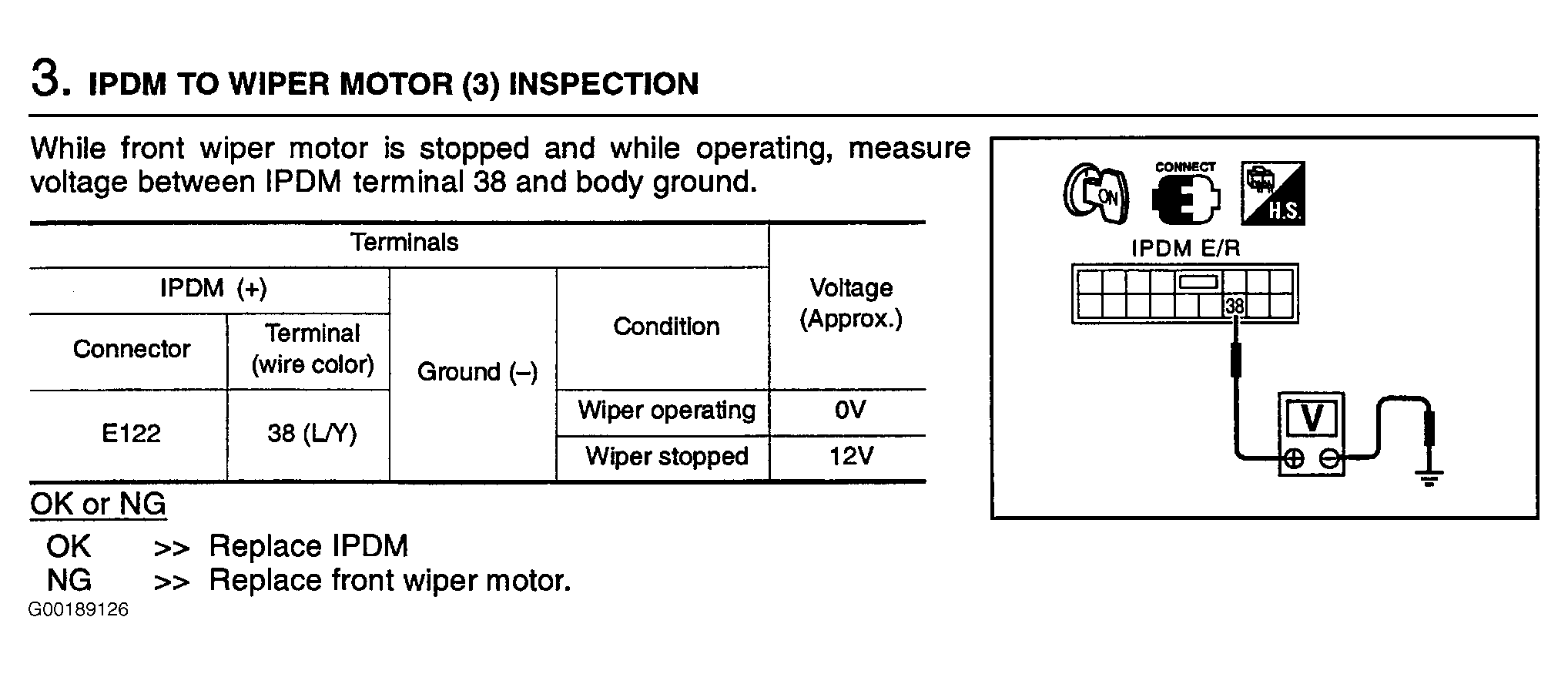

Fig 3: Identifying Front Wiper Stop Position Is Incorrect, Step 3

Courtesy of NISSAN MOTOR CO., U.S.A.
