Turn Signal Lamp Does Not Operate

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS  .
NOTE: For combination switch inspection according to self-diagnostic results, see COMBINATION SWITCH INSPECTION ACCORDING TO SELF-DIAGNOSTIC RESULTS in BODY CONTROL MODULE - ALTIMA article.

For turn signal lamp does not operate, see Fig 1 -Fig 5 .

Fig 1: Identifying Turn Signal Lamp Does Not Operate, Step 1
G00189091Courtesy of NISSAN MOTOR CO., U.S.A.

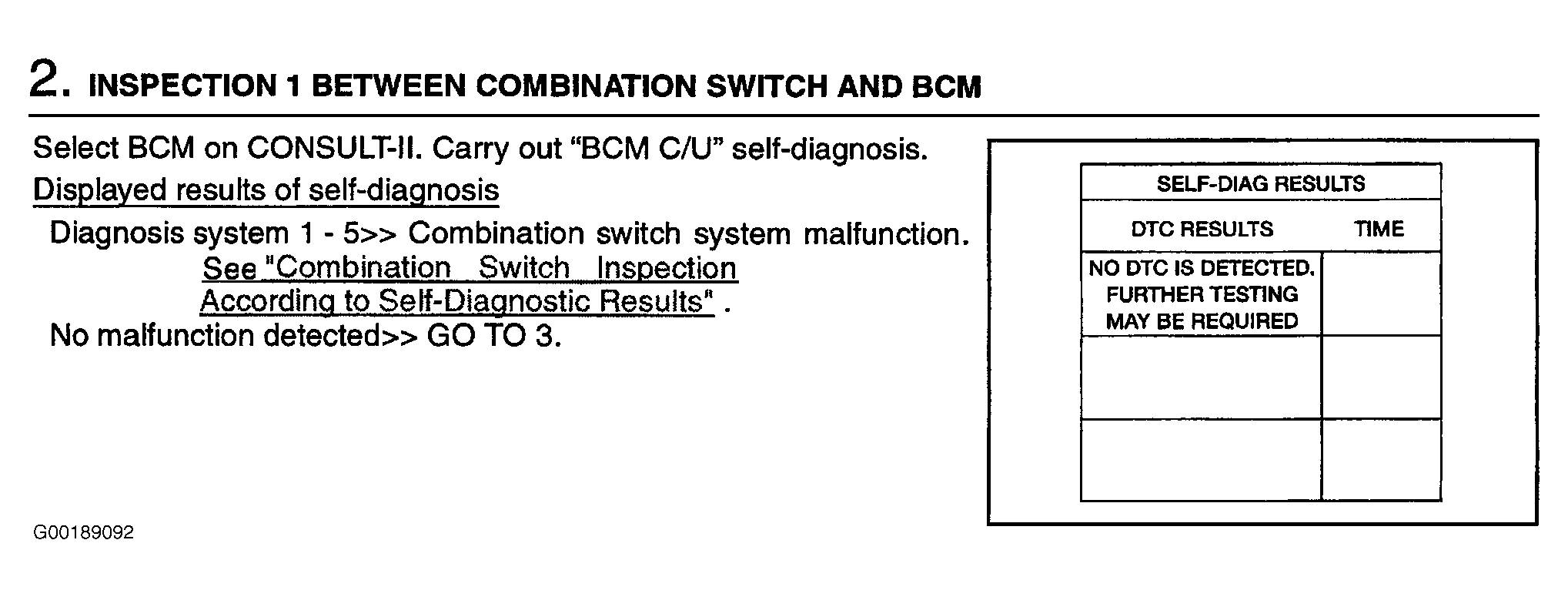

Fig 2: Identifying Turn Signal Lamp Does Not Operate, Step 2
G00189092Courtesy of NISSAN MOTOR CO., U.S.A.

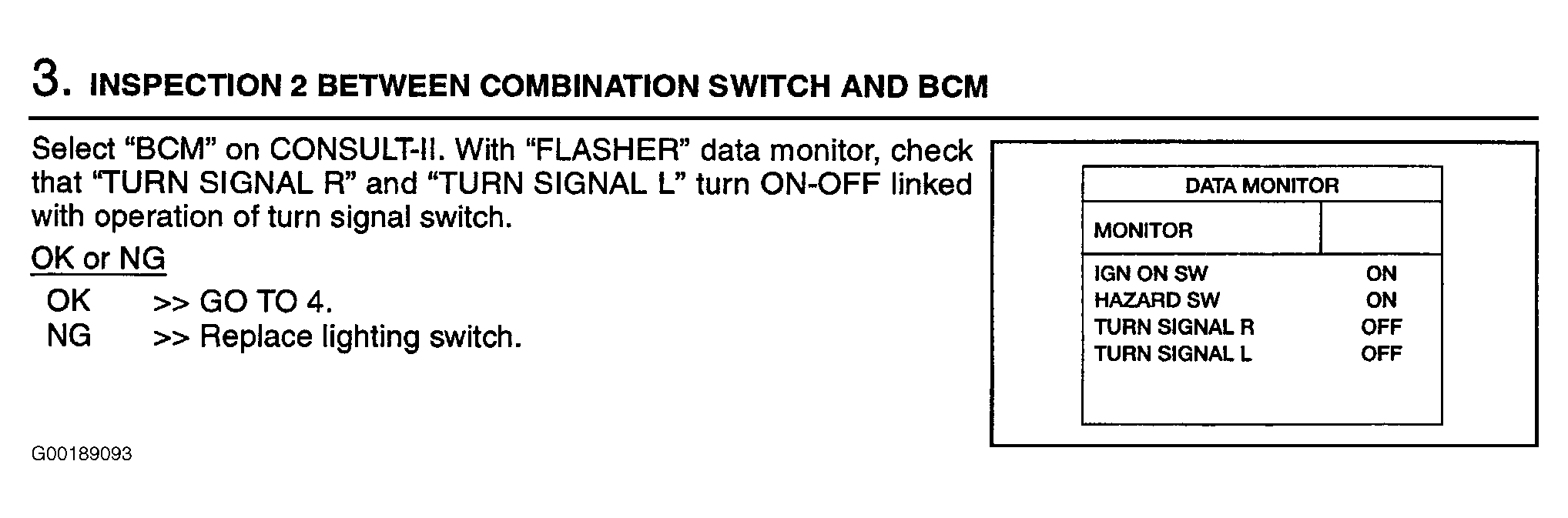

Fig 3: Identifying Turn Signal Lamp Does Not Operate, Step 3
G00189093Courtesy of NISSAN MOTOR CO., U.S.A.

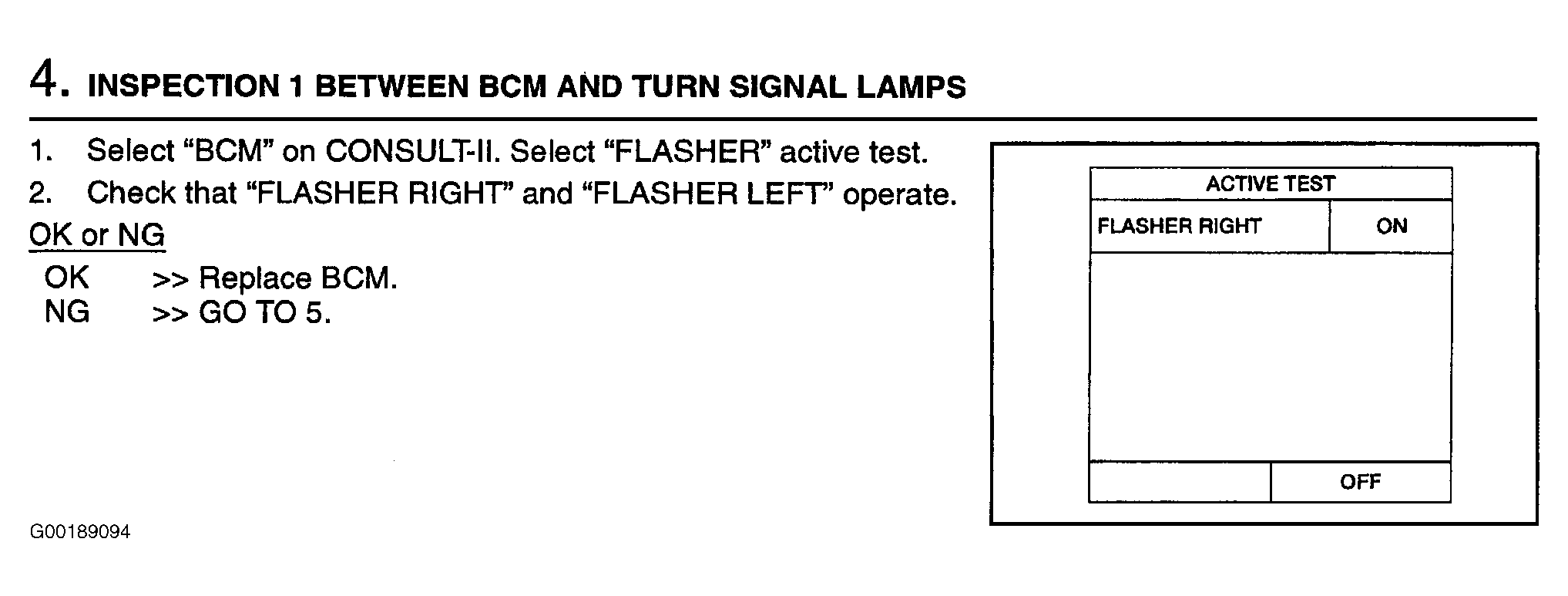

Fig 4: Identifying Turn Signal Lamp Does Not Operate, Step 4
G00189094Courtesy of NISSAN MOTOR CO., U.S.A.

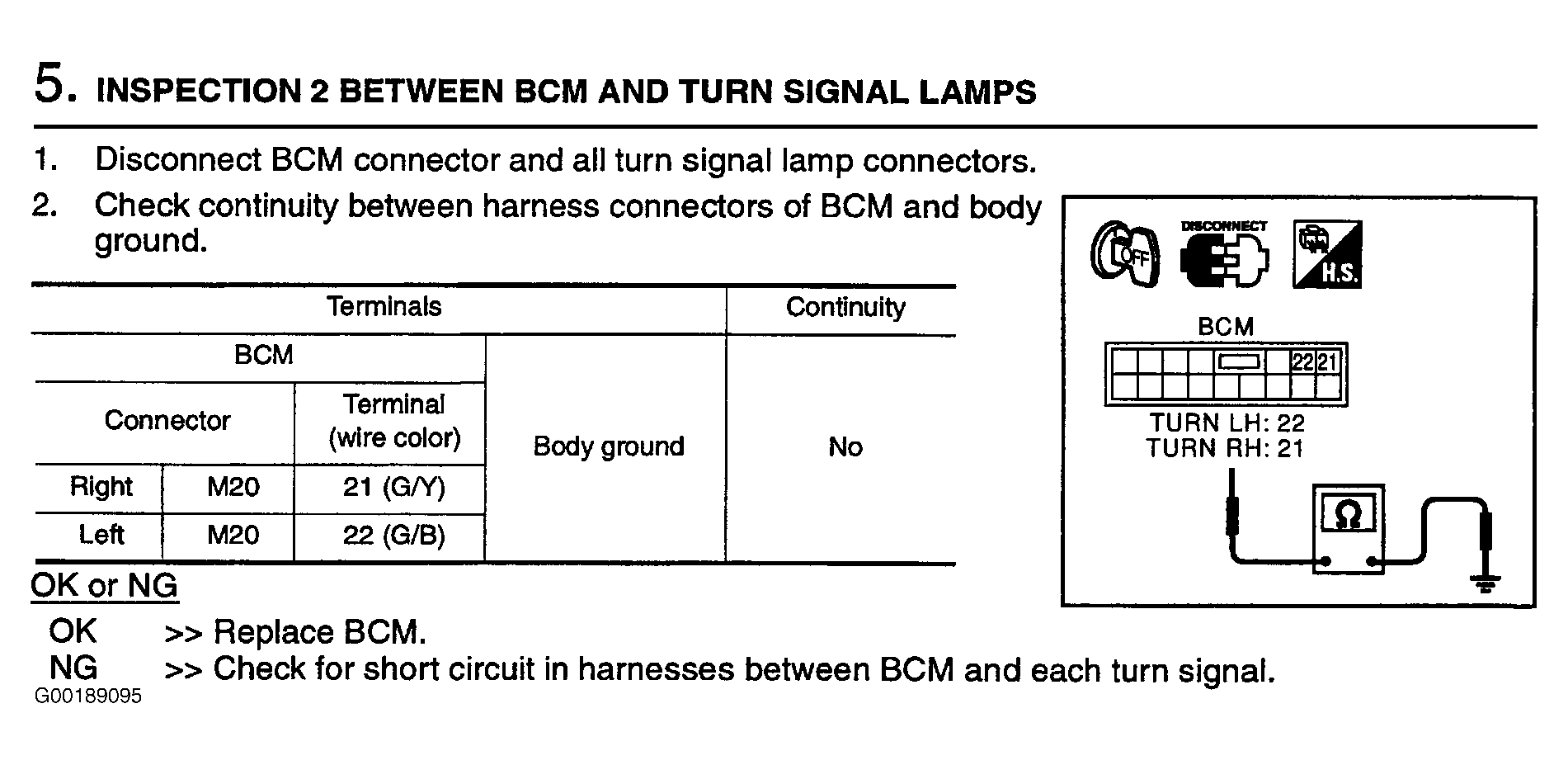

Fig 5: Identifying Turn Signal Lamp Does Not Operate, Step 5
G00189095Courtesy of NISSAN MOTOR CO., U.S.A.
