System On Lamp Drive

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Infiniti FX45, 2005 Infiniti FX35, 2004 Infiniti FX45, 2004 Infiniti FX35, and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

Touch "ON" and "OFF" to check if LDW system ON indicator operates as follows.

"SYSTEM ON LAMP DRIVE"

Touch "ON": LDW system ON indicator illuminates.

Touch "OFF": LDW system ON indicator turns OFF.

NOTE: Perform "SYSTEM ON LAMP DRIVE " when LDW system ON indicator turns OFF.

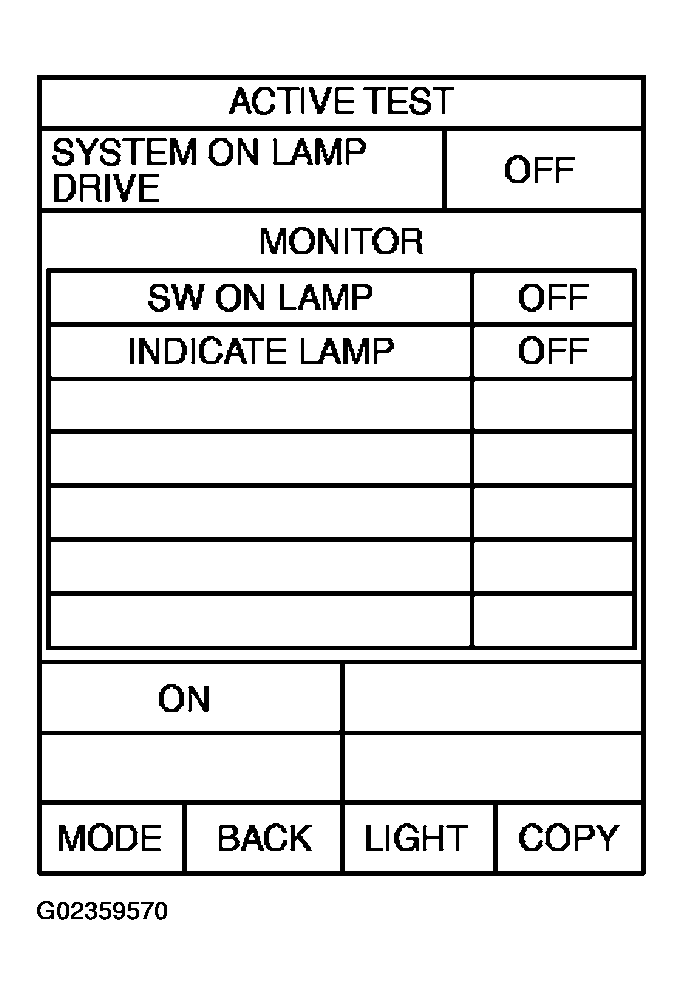

Fig 1: CONSULT-II Diagnosis Function Display (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
