Checking Transfer Fluid

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Check for fluid leakage and fluid level.

CAUTION: Never start engine while checking fluid level.
  1. Filler plug:
  1. : 35 N.m (3.6 kg-m, 26 ft-lb)

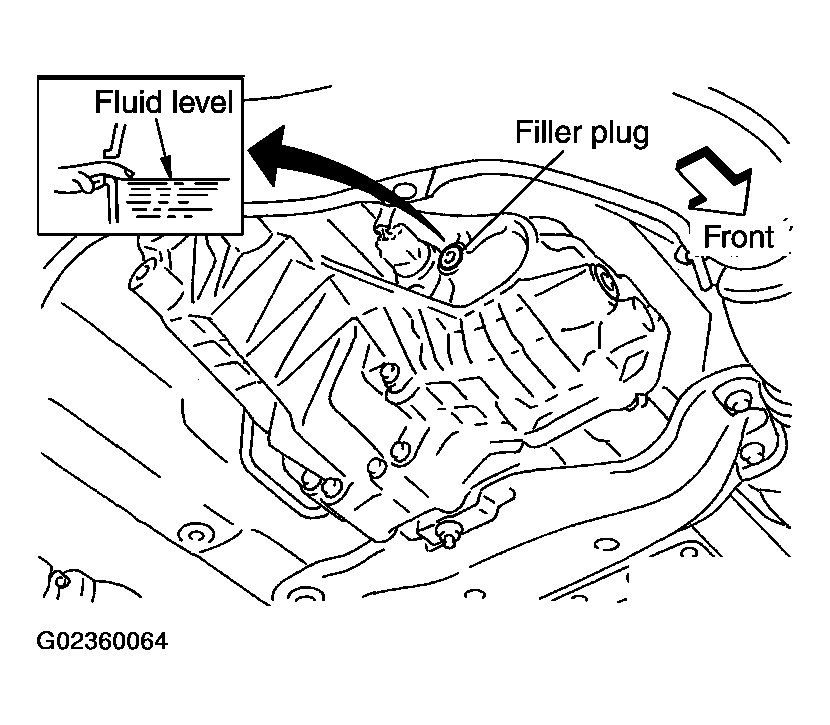

    Fig 1: Checking Fluid Level
    G02360064Courtesy of NISSAN MOTOR CO., U.S.A.
